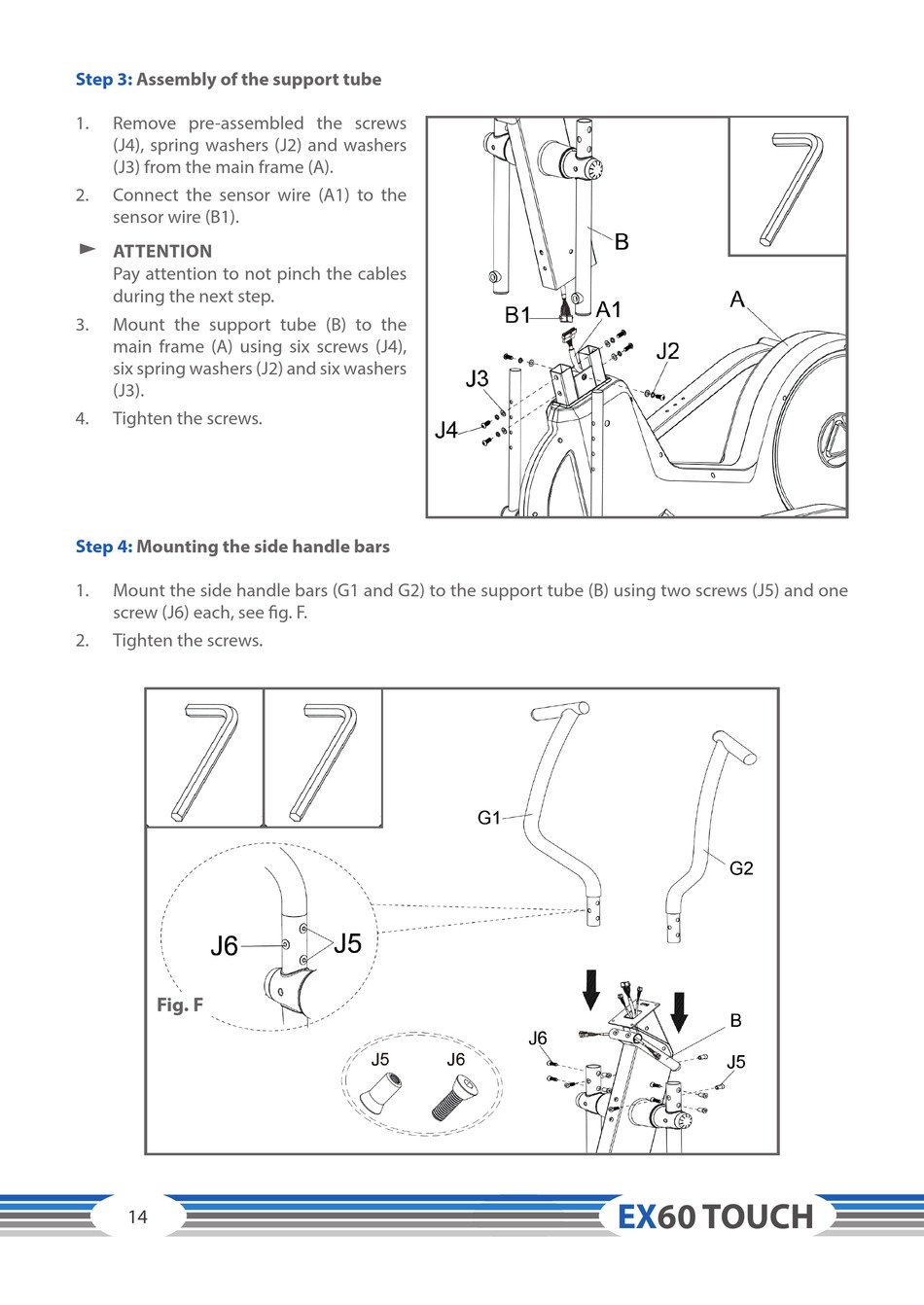

Step 3: Assembly of the support tube
1. Remove pre-assembled the screws
(J4), spring washers (J2) and washers
(J3) from the main frame (A).
2. Connect the sensor wire (A1) to the
sensor wire (B1).
࣑ ATTENTION
Pay attention to not pinch the cables
during the next step.
3. Mount the support tube (B) to the
main frame (A) using six screws (J4),
six spring washers (J2) and six washers
(J3).
4. Tighten the screws.
Step 4: Mounting the side handle bars
1. Mount the side handle bars (G1 and G2) to the support tube (B) using two screws (J5) and one
screw (J6) each, see fig. F.
2. Tighten the screws.
Fig. F
