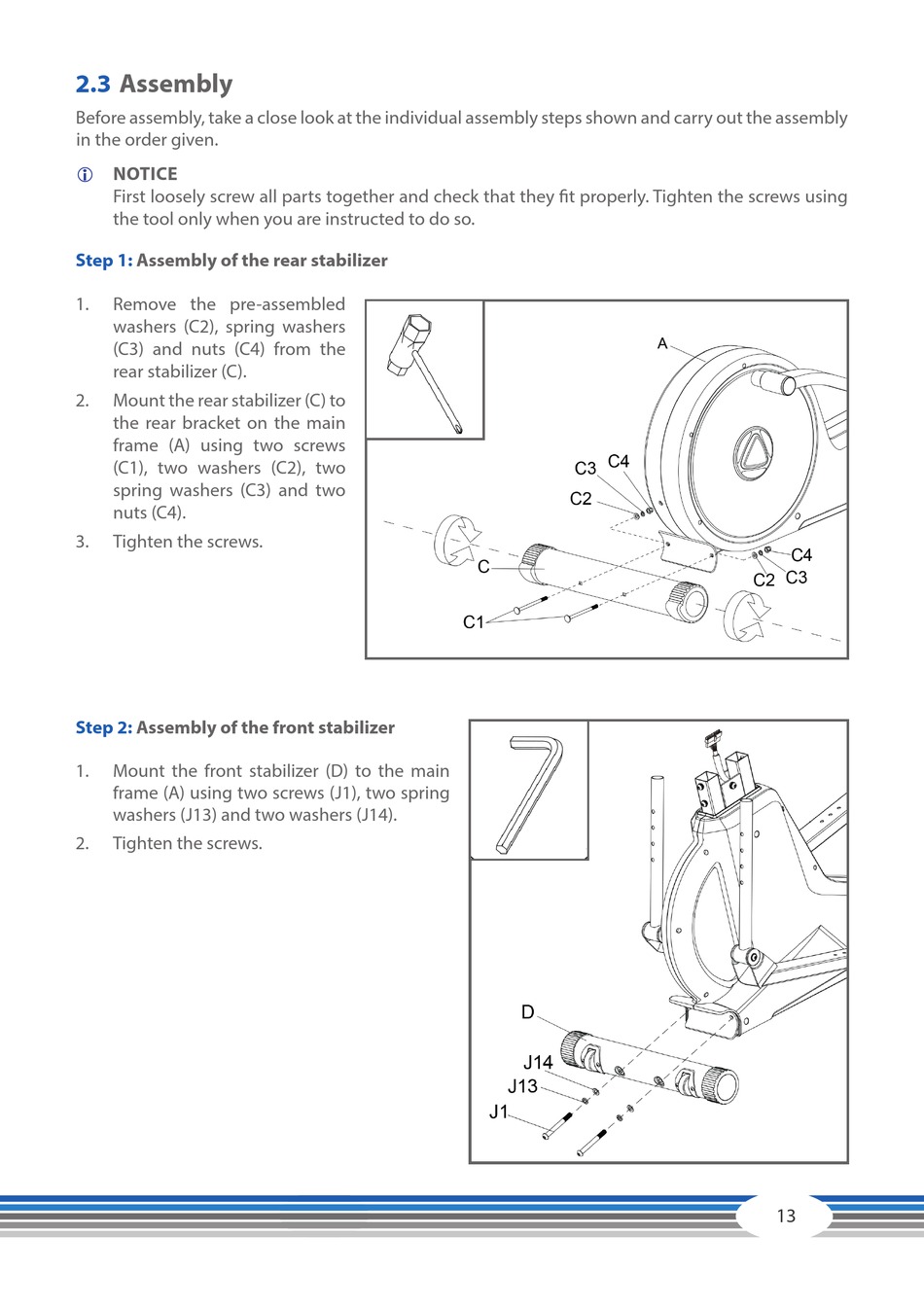

2.3
Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
NOTICE
L
First loosely screw all parts together and check that they fit properly. Tighten the screws using
the tool only when you are instructed to do so.
Step 1:
Assembly of the rear stabilizer
1.
Remove the pre-assembled
washers (C2), spring washers
(C3) and nuts (C4) from the
rear stabilizer (C).
2.
Mount the rear stabilizer (C) to
the rear bracket on the main
frame (A) using two screws
(C1), two washers (C2), two
spring washers (C3) and two
nuts (C4).
3.
Tighten the screws.
Step 2:
Assembly of the front stabilizer
1.
Mount the front stabilizer (D) to the main
frame (A) using two screws (J1), two spring
washers (J13) and two washers (J14).
2.
Tighten the screws.
13
