Dell EMC Edge Gateway 5200 User Manual page 18

● IEEE 802.3Qav traffic shaper (i210 only)
● Interrupt moderation, VLAN support, IP checksum offload (i210 only)
● RSS and MSI-X to lower CPU utilization in multicore systems (i210 only)
● ECC—error correcting memory in packet buffers (i210 only)
● Wake-On-LAN
● Preboot eXecution Environment (PXE) flash interface
● Jumbo frame support

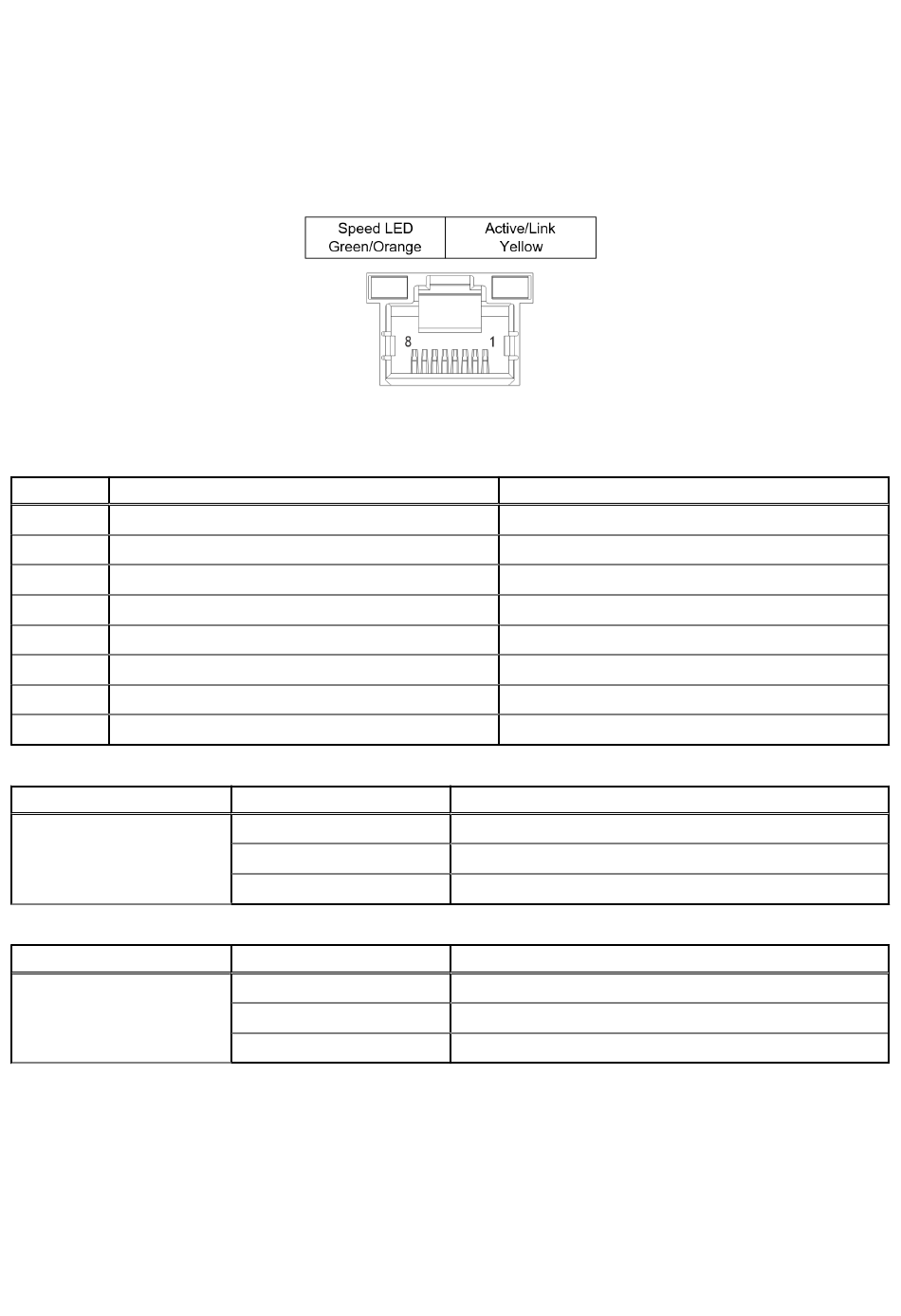

Figure 13. Ethernet port and LEDs
Table 10. Ethernet port pin definitions
Pin # 10BASE-T/100BASE-TX
1 TX+
2 TX–
3 RX+
4 -
5 -
6 RX–
7 -
8 -
Table 11. Active/Link LED indicators
LED Color
Yellow
Table 12. Speed LED indicators
LED Color
Green/Orange
18 System Layout
Status
OFF
ON
Flashing
Status
OFF
Green
Orange
1000BASE-T
LAN_TX0+
LAN_TX0–
LAN_TX1+
LAN_TX2+
LAN_TX2–
LAN_TX1–
LAN_TX3+
LAN_TX3–
Description
Ethernet port is disconnected.
Ethernet port is connected with no activity.
Ethernet port is connected and active.
Description
10 Mbps
100 Mbps
1000 Mbps
