Clear CMOS jumper

Upon encountering an abnormal condition preventing the device from booting, the jumper can clear the BIOS content stored in
CMOS and restore default settings. To clear CMOS, short pin #1 to pin #2 for a minimum of three seconds, and then remove
the jumper to return to normal mode (replace to pins #2 and #3, default).

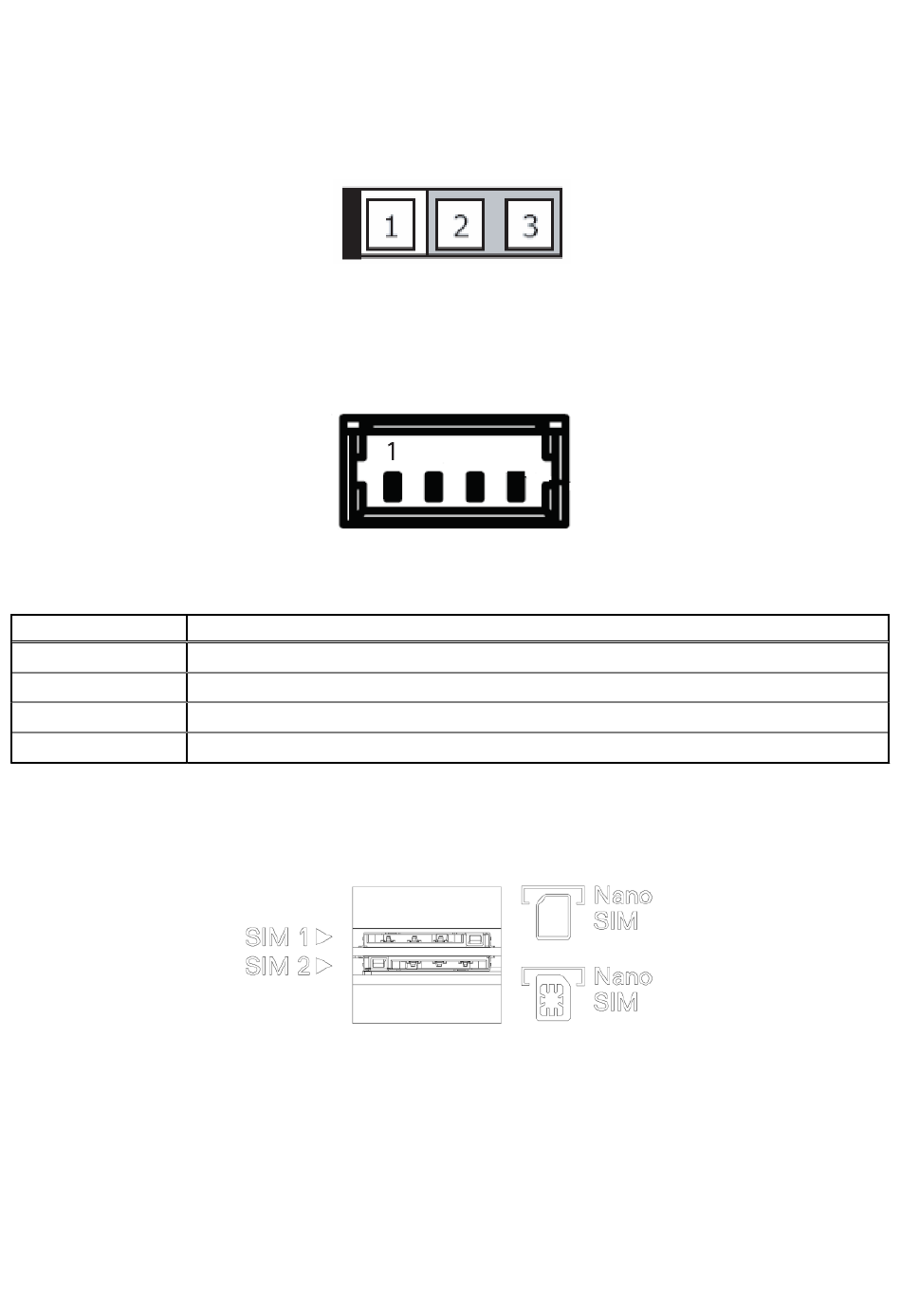

Figure 18. Clear CMOS jumper setting

Extended PWR/RESET header

An internal header is provided for the Power and Reset buttons, with pin definitions as shown.
Figure 19. PWR/RESET header pin locations
Table 18. PWR/RESET header pin definitions
Pin
1
2
3
4

USIM slot

Two physical USIM card slots are located on the right-hand side of the chassis. Remove the cover and insert the USIM cards.
Figure 20. USIM card holder
Signal
PWR_BTN-L
GND
GND
RESET_BTN-L
System Layout 23
