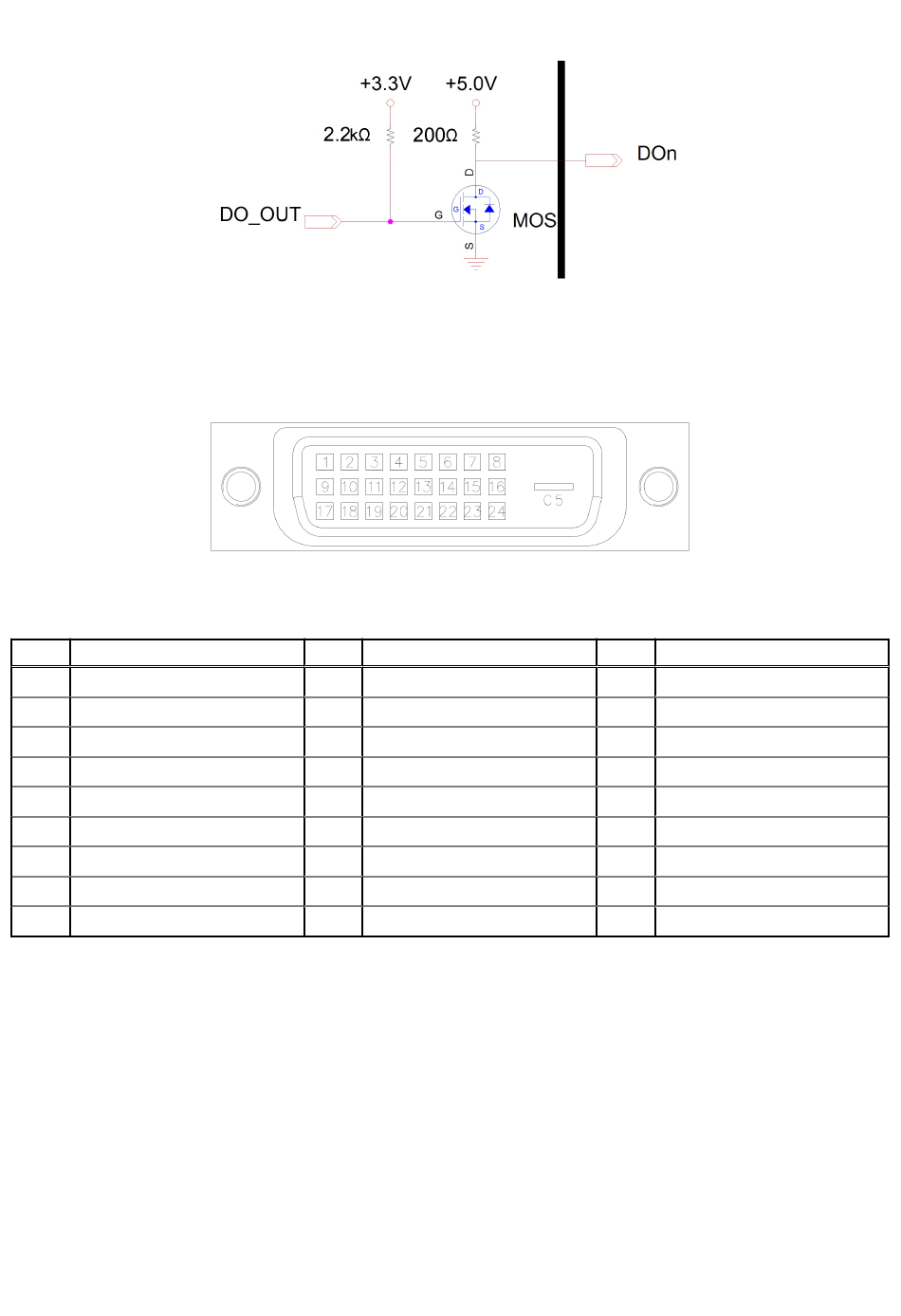

Figure 10. Digital output circuit

DVI-D connector

The EGW-5200 provides one DVI-D connector for connection to an external monitor.
Figure 11. DVI-D connector pin locations
Table 8. DVI-D connector pin definitions
Pin Signal
1 DVIdata 2–
2 DVIdata 2+
3 GND
4 N/C
5 N/C
6 DVIDC clock
7 DVIDC data
8 N/C
9 DVIdata 1–
16 System Layout
Pin Signal
10 DVIdata 1+
11 GND
12 N/C
13 N/C
14 +5 V
15 GND
16 Hot plug detect
17 DVIdata 0–
18 DVIdata 0+
Pin Signal
19 GND
20 N/C
21 N/C
22 GND
23 DVI clock+
24 DVI clock–
C5 GND
- -
- -
