Topics:
•

Front panel I/O

• Internal I/O connectors
• Antenna connectors
Front panel I/O
The EGW-5200 provides the following front panel access features.
A

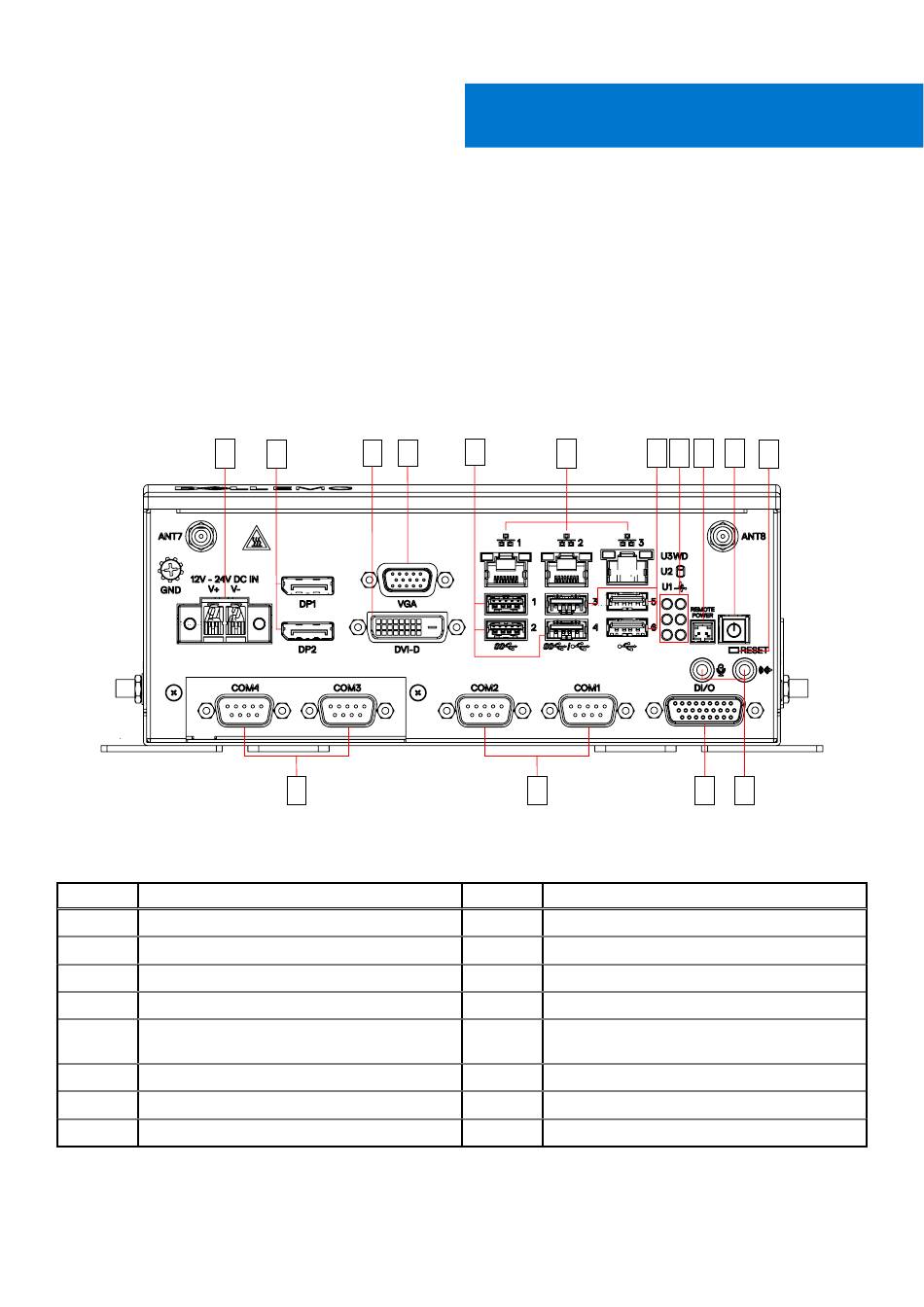

Figure 6. Front panel I/O
Table 4. Front panel I/O legend
Letter Description
A DC Power Input
B DisplayPort x2
C DVI-D
D VGA
E 3x USB 3.1 Type-A (Gen2: red ports 1 and 2;
Gen1: blue port 4)
F 3x Gigabit Ethernet
G 3x USB 2.0 Type-A (black ports 3, 5, and 6)
H LED Indicators
C D
B
O
System Layout
E F
N
Letter Description
I Extend Power Button
J Power
K Reset
L Audio (mic, phones/speaker)
M Digital Input/Output
N 2x COM ports (232/485 capable)
O uFM I/O (default with 2x COM ports)
- -
G H I J
K
M L
System Layout
