Getting Started

This chapter provides information to help you use the APC SmartTouch including:

Rear panel

Connection ports

• rear panel
• connection ports
• providing power/charging the batteries
• switching on the instrument
• working with settings
• performing a zero count check
• installation of the Isokinetic probe
• Running a basic sample

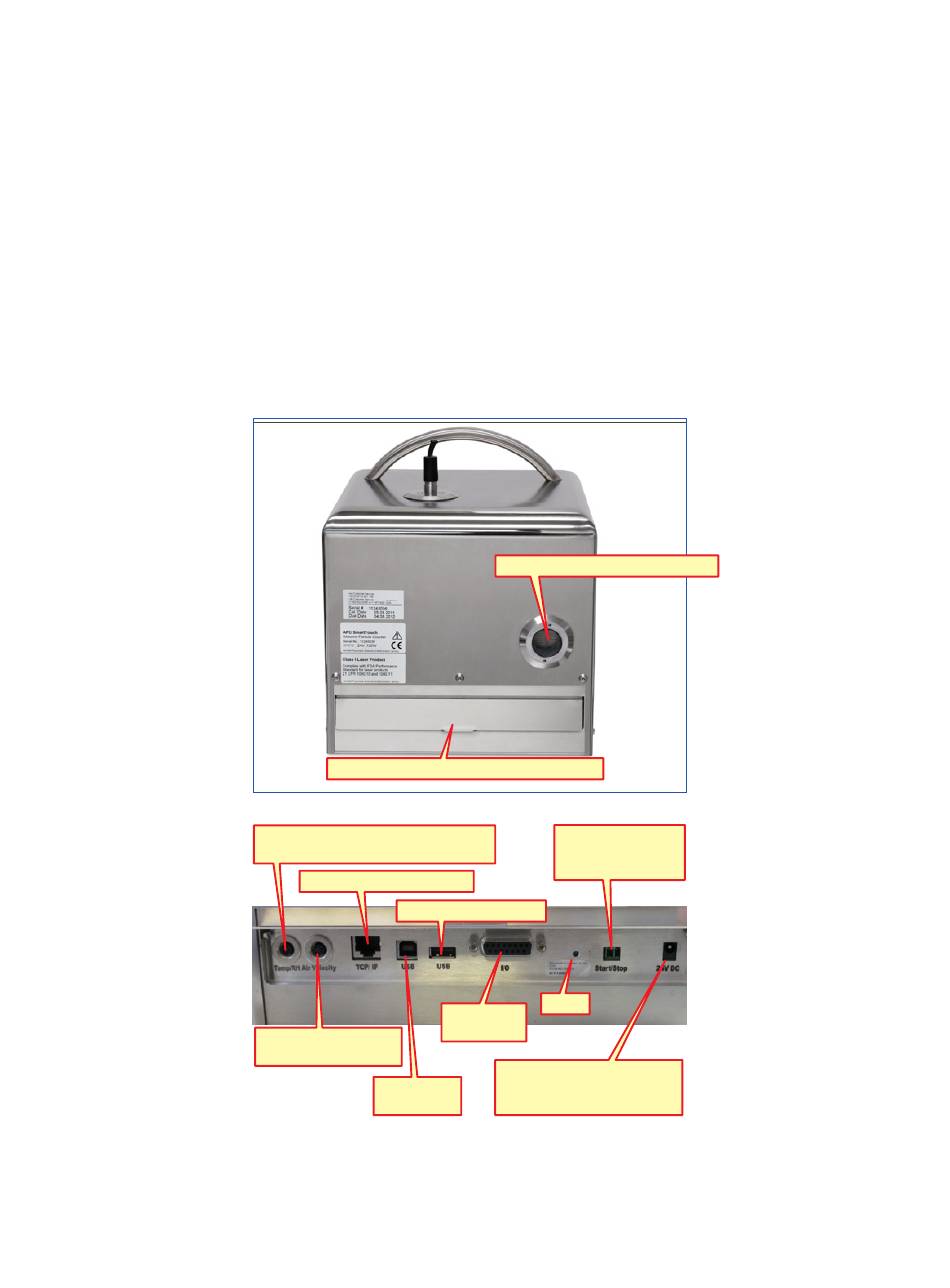

This is the rear panel of the instrument.
Lift this door to expose connection ports
Temperature and Relative Humidity
Probe Connection: Optional
Ethernet Port Connection
USB Port Connection
Air Velocity Probe
Connection: Optional
USB Port
Connection
Hyper filtered exhaust air outlet
Port connection
for external
start/stop function
Reset
Serial Port
Connection
External Power supply
connection (only use
the supplied power supply)
9
