User Guide
mPAGE
Electrode Core
®
Clamp Replacement
ECCL2
Introduction

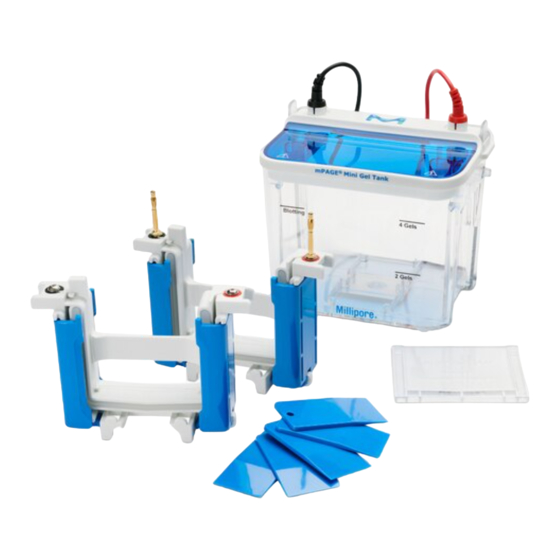

The mPAGE
Electrode Core
®
features replaceable core
clamps, mitigating the need
to replace the entire mPAGE
Electrode Core assembly.
Removing a Defective
mPAGE
Electrode Core Clamp
®

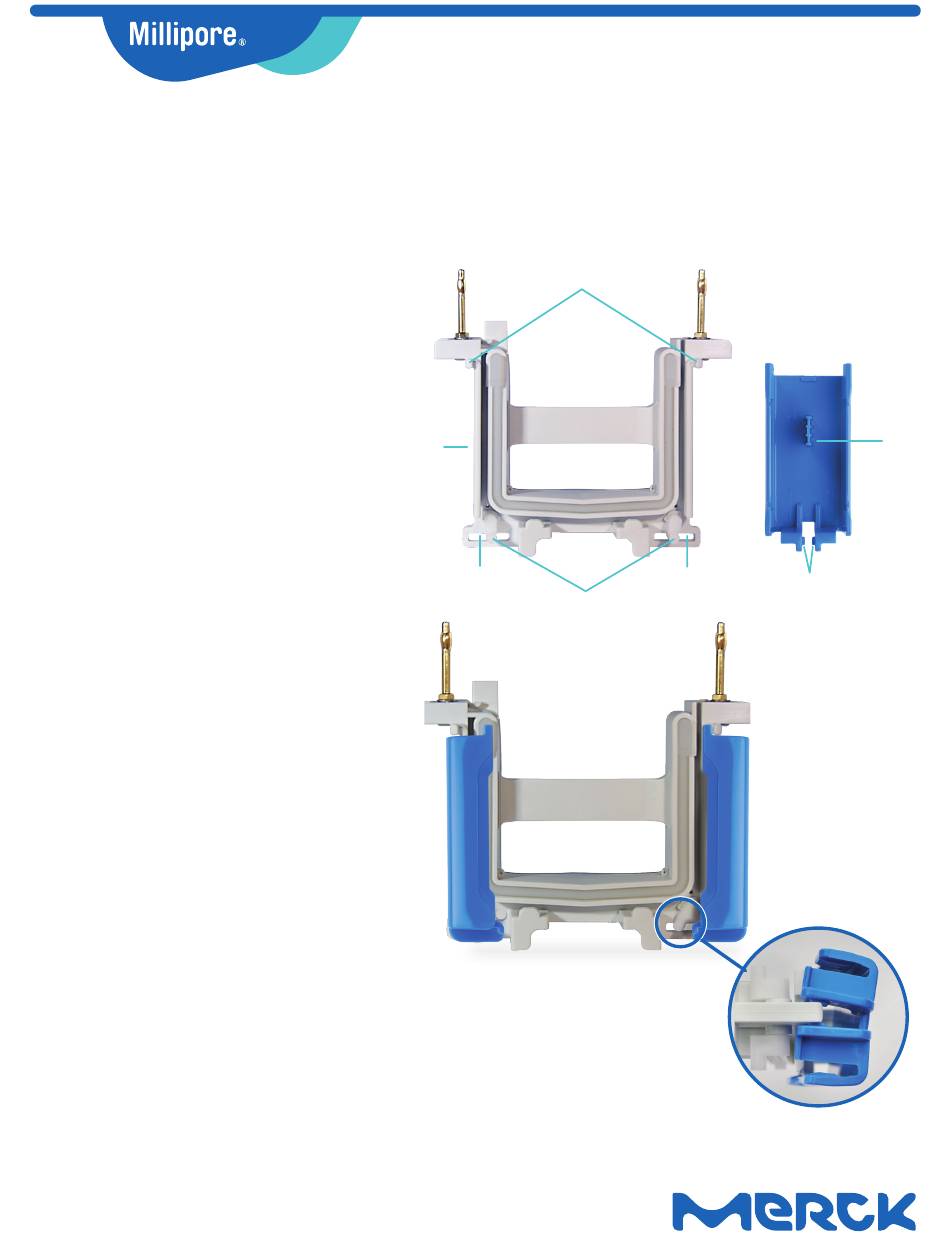

1. Orient the mPAGE
Electrode
®
Core so the bottom portion
is facing up.
2. Open the defective core clamp,
ensuring the opposite core clamp
is in the closed position.
3. Grasping the open core clamp where the rail tabs engage with the
mPAGE
Electrode Core slide rail, twist until one of the rail tabs
®
disengages from the mPAGE
to disengage the second rail tab.
20689951w
Rev 03/22
Alignment
slot
®
mPAGE
®
Electrode
Core clamp
closed
Electrode Core. Pull backward
®
Dead stops
Slide rail
Gel aligners
1 of 2
SigmaAldrich.com
Slide rail
Rail tabs
mPAGE
®
Electrode
Core clamp
open
View from bottom
Alignment
tab
