Adding New Printer Paper

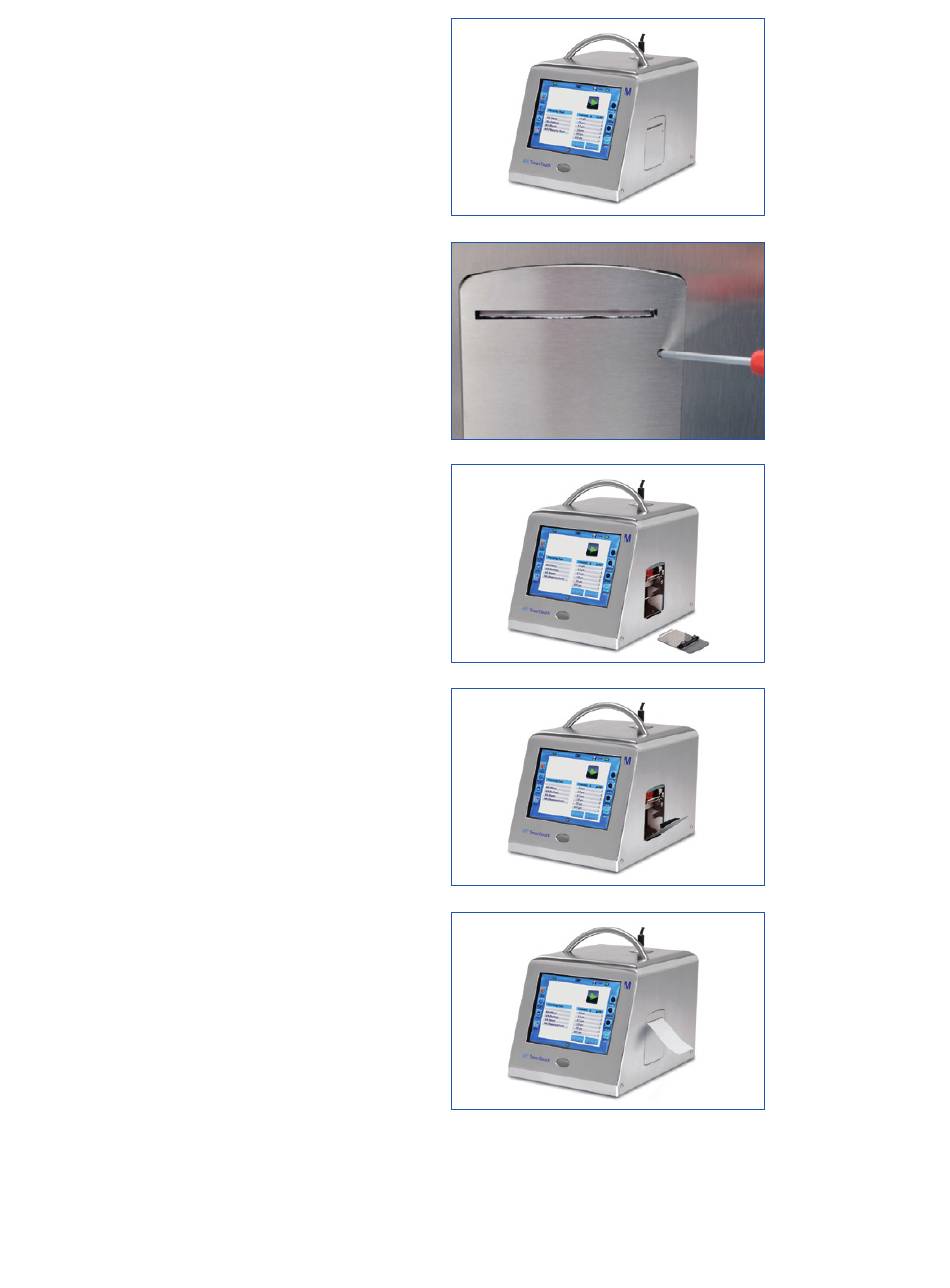

1. Turn off the power on the APC SmartTouch.
The printer is located on the right side of the instrument.
Open the printer door by pressing a stylus in the hole
of the printer door. Press until the door opens.
2. The printer door can stay attached to the housing or be
removed completely for easy installation of the thermal
printer paper.
3. Remove the paper axel. Unroll 60 mm of the printer
paper. Place the axel into the printer roll and install
them into the printer housing with the loose end of the
roll at the top and towards the side of the instrument.
4. Put the paper through the paper slit. Hold the loose end,
and close the printer door. When the printer door is
closed, pull the paper so that is aligned in the opening
of the paper slit. The printer is now loaded with paper.
