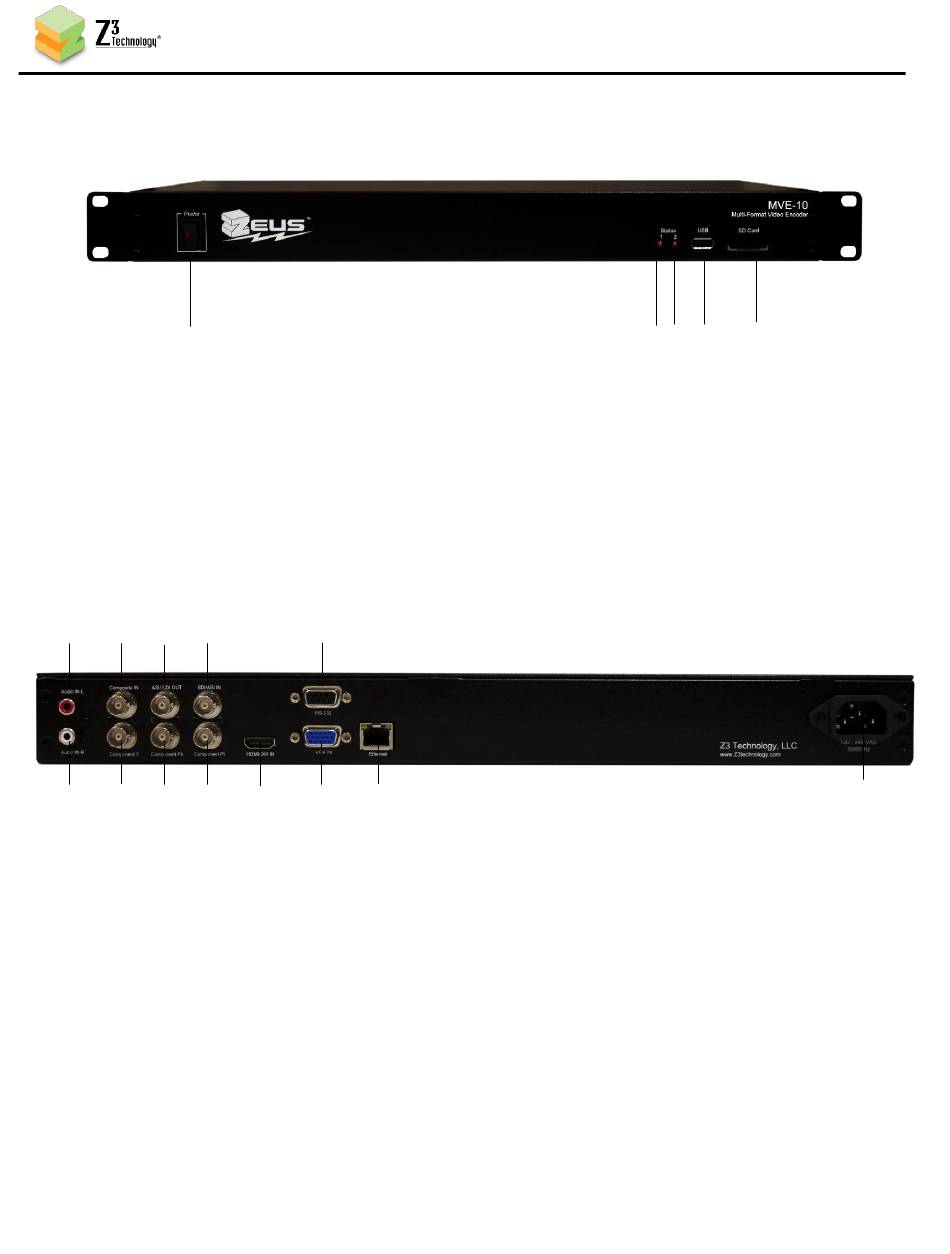

5.0 OPERATING CONTROLS

FRONT VIEW
1
1 Power Switch
REAR VIEW
8 12
6 10
11 13
7 9
6 Analog Audio In L
7 Analog Audio In R
8 Composite In
9 Component In Y
10 ASI/SDI Out
11 Component In Pb
____________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N. 8th St. STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702

Figure 2 Z3-MVE-10 Front View

15
14 16 17
12 ASI/SDI In
13 Component In Pr
14 HDMI In
15 Serial
16 VGA In
17 Ethernet
18 Power In

Figure 3 Z3-MVE-10 Rear View

8
DOC-USR-0080-01
2 3 4 5
2 Status LED 1
3 Status LED 2
4 USB
5 SD Card
18
