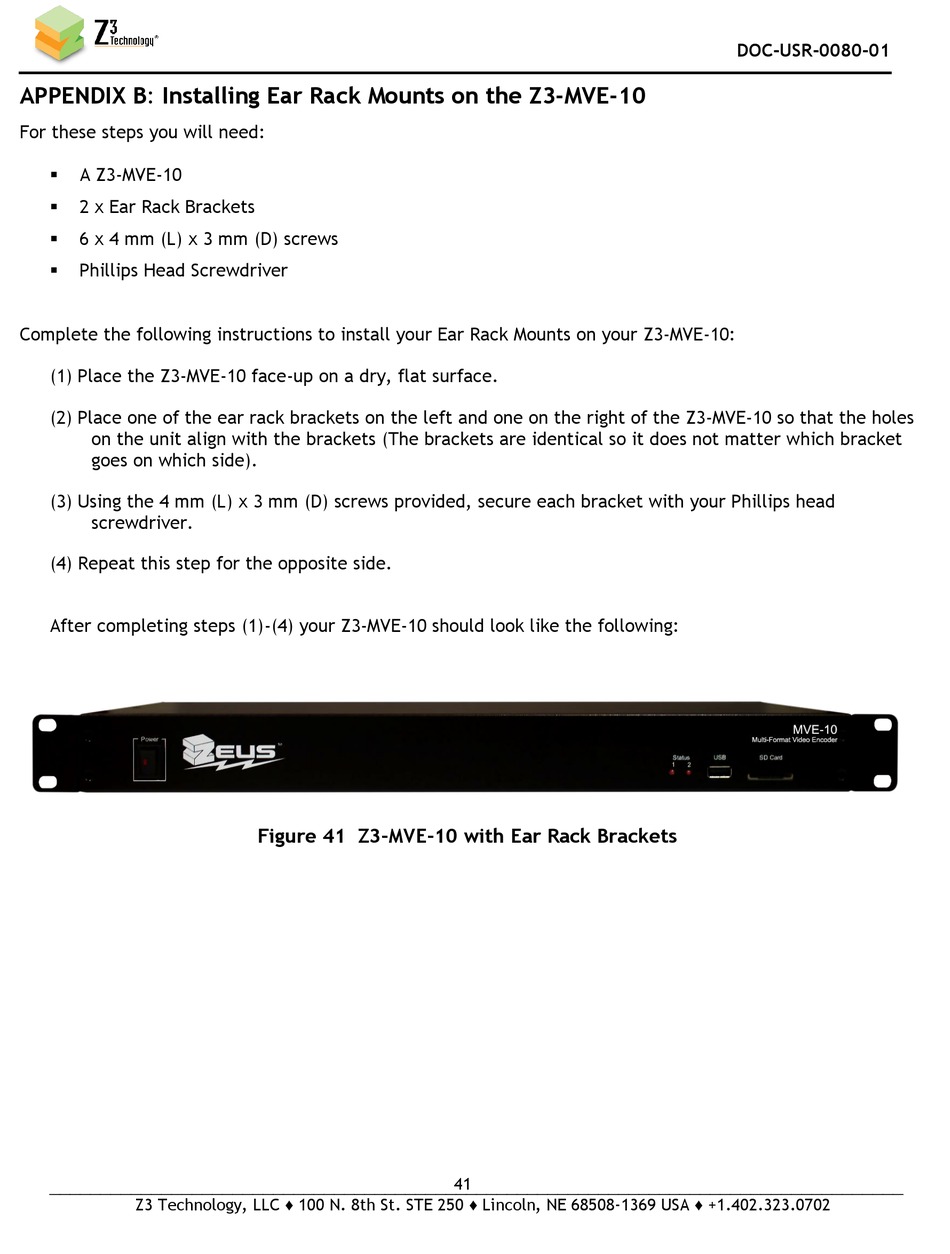

APPENDIX B: Installing Ear Rack Mounts on the Z3-MVE-10

For these steps you will need:
A Z3-MVE-10

2 x Ear Rack Brackets

6 x 4 mm (L) x 3 mm (D) screws

Phillips Head Screwdriver

Complete the following instructions to install your Ear Rack Mounts on your Z3-MVE-10:
(1) Place the Z3-MVE-10 face-up on a dry, flat surface.
(2) Place one of the ear rack brackets on the left and one on the right of the Z3-MVE-10 so that the holes
on the unit align with the brackets (The brackets are identical so it does not matter which bracket
goes on which side).
(3) Using the 4 mm (L) x 3 mm (D) screws provided, secure each bracket with your Phillips head
screwdriver.
(4) Repeat this step for the opposite side.
After completing steps (1)-(4) your Z3-MVE-10 should look like the following:
____________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N. 8th St. STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702

Figure 41 Z3-MVE-10 with Ear Rack Brackets
