4.0 OPERATING CONTROLS

1
LED light will blink green when streaming.
______________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N 8
1: RS-232 Serial Port
2: USB 3.1
3: Microphone Input
4: Gigabit Ethernet

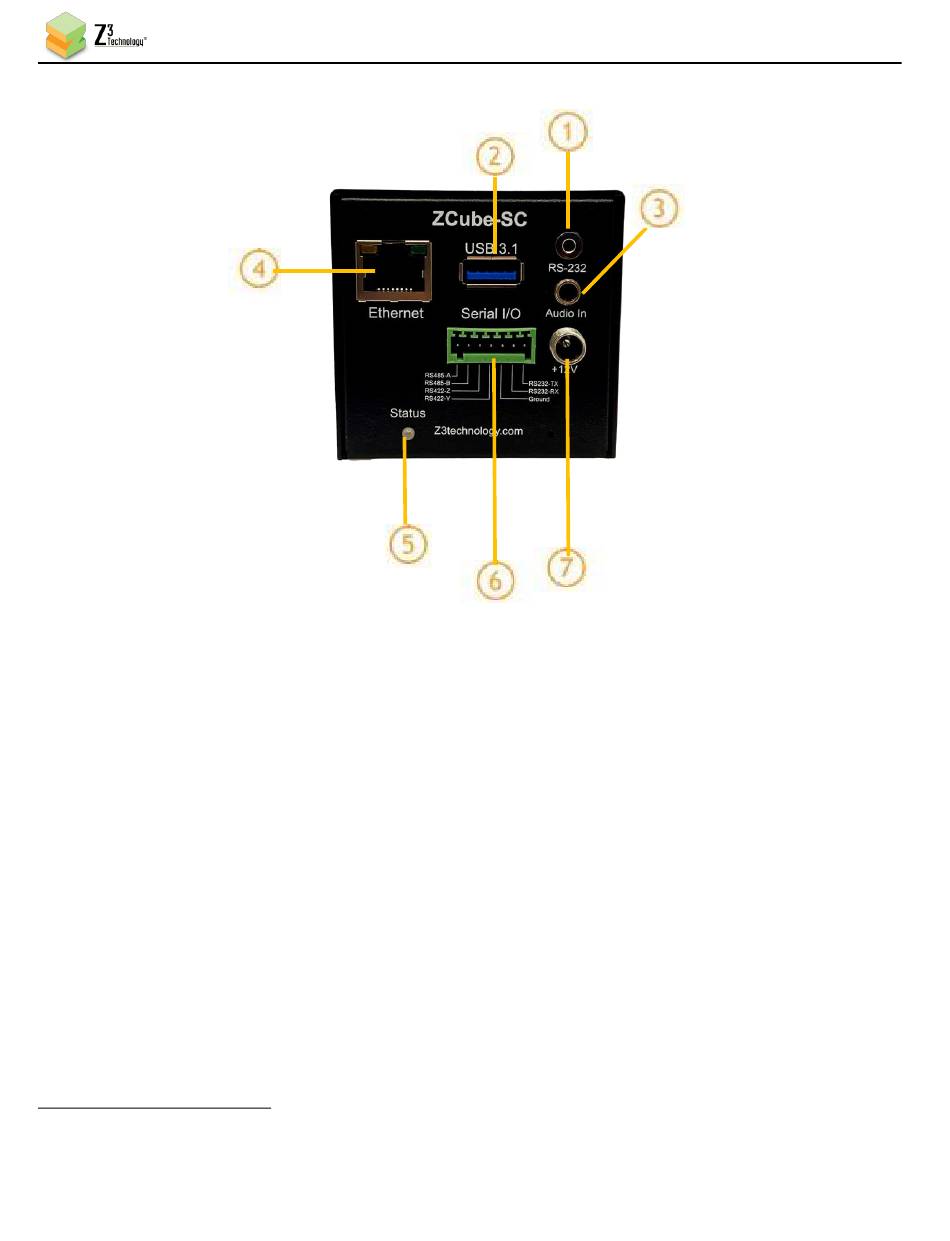

Figure 3 ZCube-SC Back Interfaces

th ST, STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702
5: Status Light
6: Serial I/O (RS-485, RS-422, RS-232)
7: 12V Power or POE
