6.0 GETTING STARTED AND RUNNING THE Z3-MVE-10

For these steps, you will need: a computer, a 1080p30/1080i video source, a Z3-MVE-10, a power supply, an
HDMI Cable and at least one Ethernet cable.

6.1 Setting up the Video Source

(1) Select an HD source with HDMI non-HDCP output (in Z3's testing, the Brite-View BV-5005HD is used).
-Power on the HD Source
-Connect an HDMI cable from the HD Source to a monitor
-Set the HD Source to 1080p30 or 1080i output
-Select and begin playback of the content
If you see playback on the monitor, you've confirmed the source works.
(2) Move the HDMI cable from the monitor to the Z3-MVE-10 "HDMI In" port.
(1) Connect Video Source
to HDMI In

6.2 Connecting and Powering up the Z3-MVE-10

(3) Connect an Ethernet cable to "Ethernet" on the Z3-MVE-10 (see
the Ethernet cable directly to a PC. You will use this PC to control the Z3-MVE-10 and to decode the
output stream.
(4) Connect the power cable (see
____________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N. 8th St. STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702
(2) Connect
Ethernet

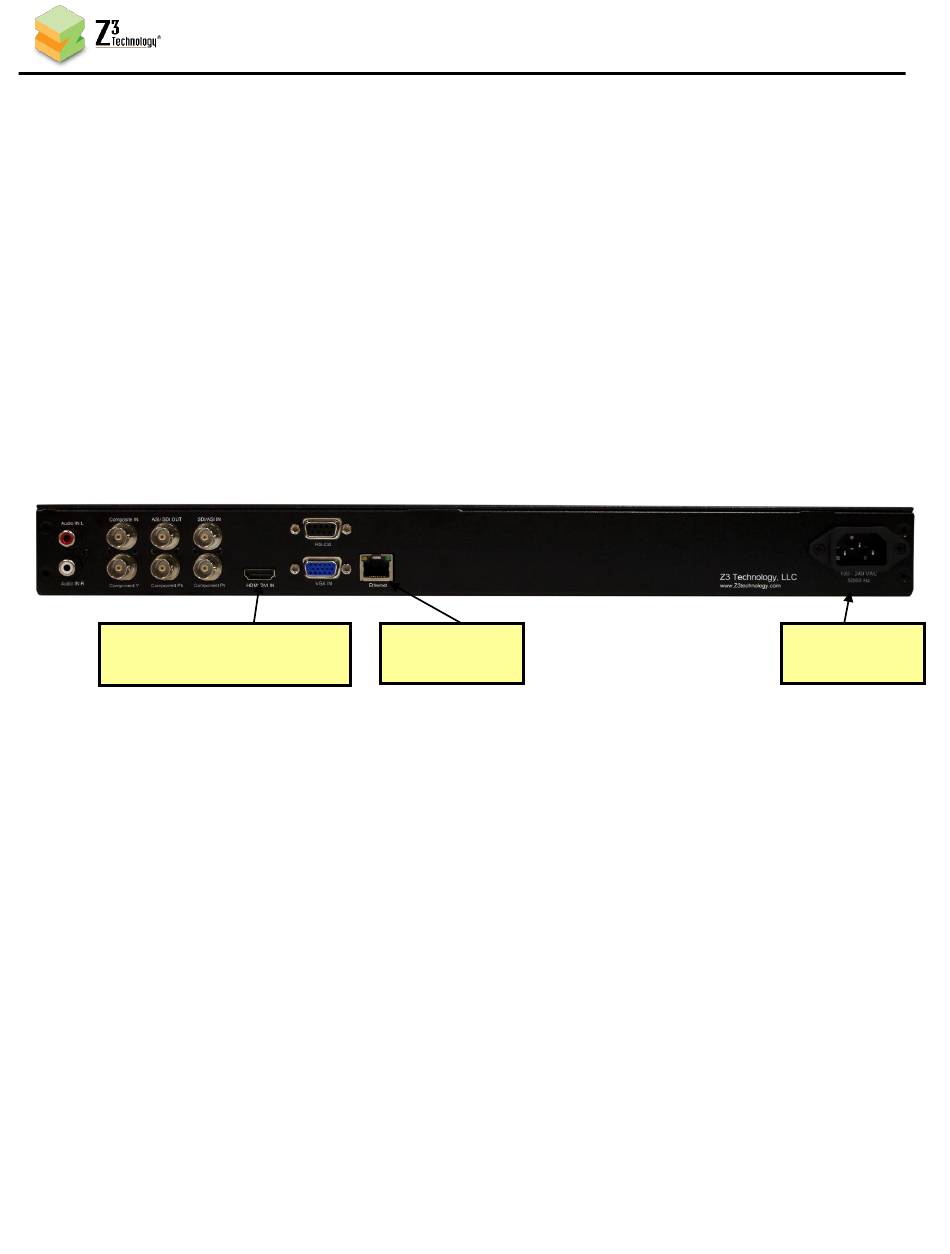

Figure 4 Z3-MVE-10 Rear Panel Connections

Figure 4
).
Figure 4
9
DOC-USR-0080-01
(3) Connect
Power
). Connect the other end of
