Before attempting to connect or operate this product, please read these instructions
___________________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N. 8th St., Ste. 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702
CONFIDENTIAL
3
Z
Technology
User's Manual

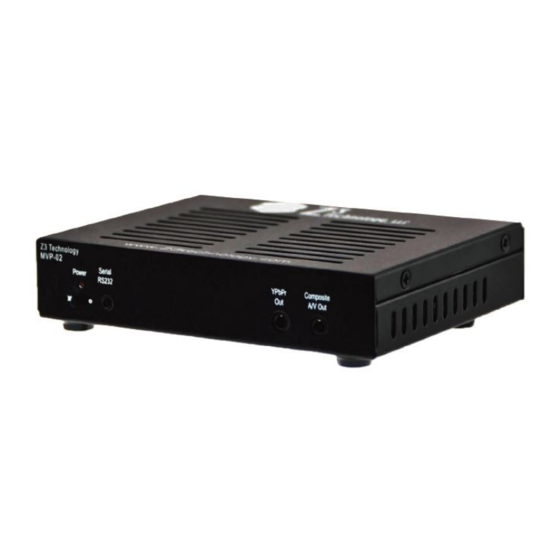

Z3-MVP-02 Digital Media Decoder
Model Name: Z3-MVP-02
Version 1.01
September 9, 2012
carefully and save the manual for future use.
1
Z3-MVP-02 v1.01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Z3 Technology Z3-MVP-02
Summary of Contents for Z3 Technology Z3-MVP-02
- Page 1 September 9, 2012 Before attempting to connect or operate this product, please read these instructions carefully and save the manual for future use. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N. 8th St., Ste. 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
- Page 2 The Z3-MVP-02 supports H.264 codec up to 1080p at 60 fps (frames per second) decode from stream or storage. The Z3-MVP-02 is the ideal solution for monitoring networked IP cameras, digital signage, video kiosks and media adaptors.
- Page 3 H.264 at HD resolutions Multiple interfaces including Gigabit Ethernet, PCI Express, SATA2, DDR3, USB 2.0, MMC/SD, HDMI and DVI 3. Interfaces ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N. 8th St., Ste. 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
- Page 4 Step 5: Setup teraterm on PC for 115k, 8, N, 1, 0ms/char, 100ms/line Step 6: Connect the other end of the serial cable to the console port on Z3-MVP-02 board. The console port is the 2.5mm jack next to the power switch.
- Page 5 Z3-MVP-02 v1.01 5. Z3-MVP-02 Change Display Settings Step 1: Once you power on your Z3-MVP-02 4-channel decoder, you should see the following via Tera Terminal. Step 2: Set your channels according to source. In this instance, we are streaming from one source (an IP camera) via rtsp.
- Page 6 Step 6: Press “4” to change the display settings. It should display the following: Step 7: Press “3” to change the layout of the output. It should display the following: ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N. 8th St., Ste. 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
- Page 7 Z3-MVP-02 v1.01 Step 8: Press “2” or “9” *Option 2 will display a 2x2 output. *Option 9 will display a Picture-in-Picture output. ___________________________________________________________________________________________ Z3 Technology, LLC ♦ 100 N. 8th St., Ste. 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702...
