6.10 Encoding Closed Caption Data

The Z3-MVE-10 supports extraction of closed caption data from composite input. This automatically
occurs any time composite input with closed caption data included is used. To utilize this feature,
complete the following:
(1) Connect a composite input with closed caption data to the composite connector (note: A BNC to RCA
adapter may be necessary). Also connect the audio if available:
(2) Connect analog audio
(1) Connect composite with CC data

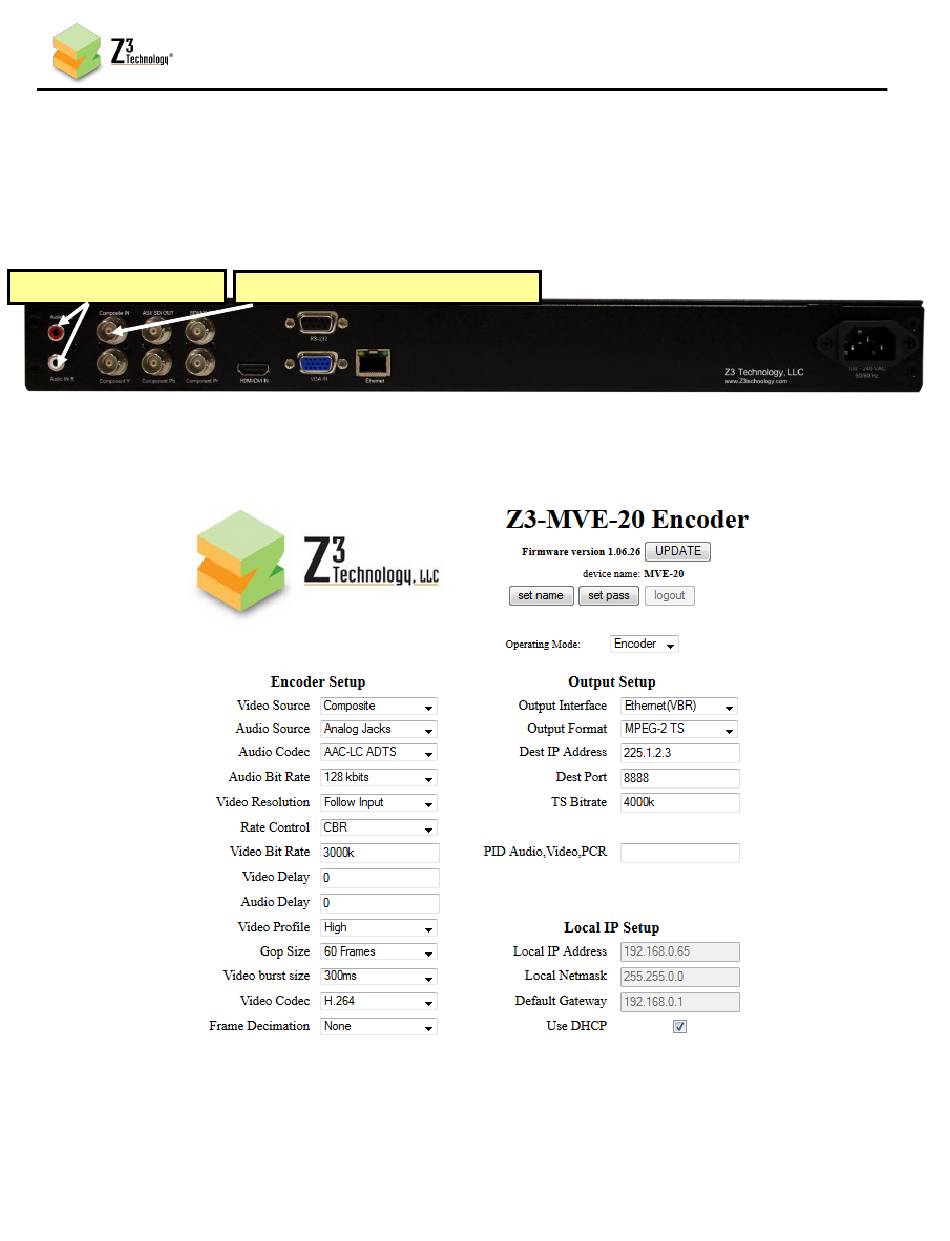

Figure 25 Connections for Closed Caption Extraction

(2) Configure the Encoder to use composite input:

Figure 26 Sample Encoder Settings for Closed Caption Extraction

25
