2.4

Jumper and Switch Settings

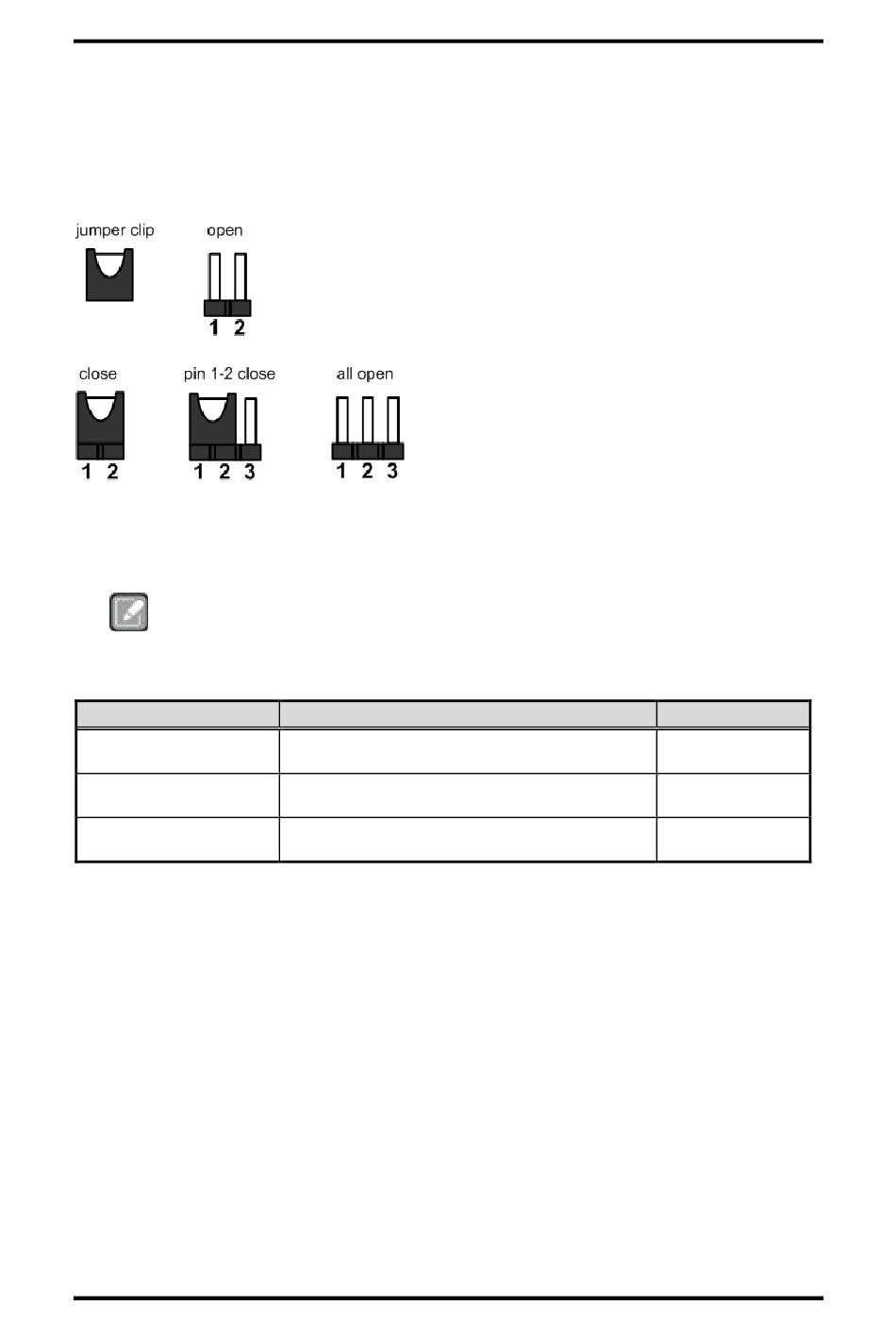

Jumper is a small component consisting of jumper clip and jumper pins. Install jumper clip on 2
jumper pins to close. And remove jumper clip from 2 jumper pins to open. Below illustration
shows how to set up jumper.
Properly configure jumper and switch settings on the PICO512 to meet your application
purpose. Below you can find a summary table of jumpers, switch and onboard default settings.
Once the default jumper or switch setting needs to be changed, please do it under
power-off condition.
Note
Jumper and Switch
JP1
JP2
SW1
Board and Pin Assignments
Description
Restore BIOS Optimal Defaults
Default: Normal Operation
LVDS Voltage Selection
Default: +3.3V Level
Auto Power On
Default: Enable
PICO512 Pico-ITX Board
Setting
1-2 Close
1-2 Close
2-3 Close
