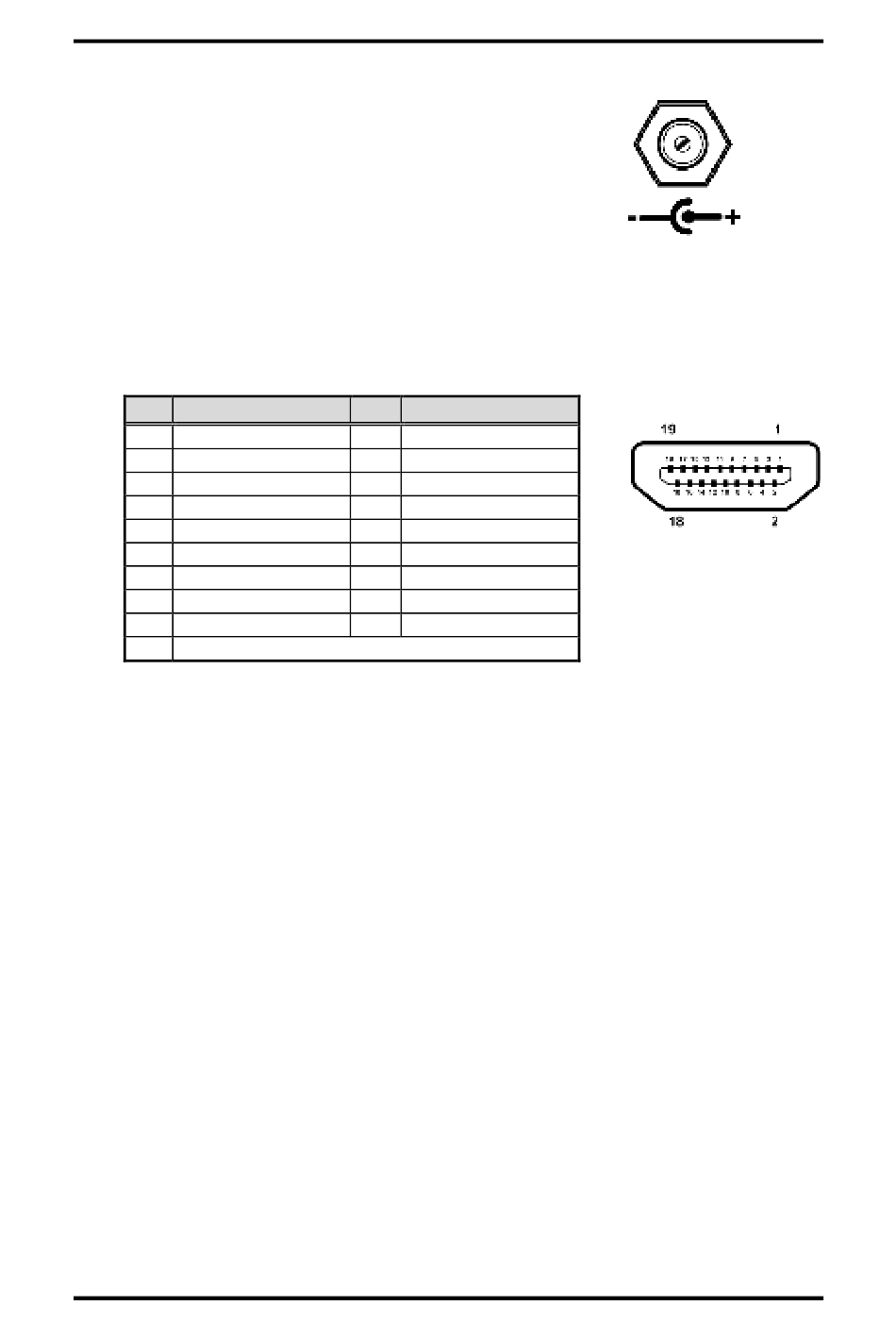

DC Jack Power Connector w/ Screw (CN14)

The CN14 is a DC jack with screw. Firmly insert at least
60W adapter into this connector. Loose connection may
cause system
components/devices
connecting.
2.5.13

HDMI Connector (CN15)

The HDMI (High-Definition Multimedia Interface) is a compact digital interface which is
capable of transmitting high-definition video and high-resolution audio over a single
cable.
Pin Signal
1 HDMI OUT_DATA2+
3 HDMI OUT_DATA2-
5 GND
7 HDMI OUT_DATA0+
9 HDMI OUT_DATA0-
11 GND
13 N.C.
15 HDMI OUT_SCL
17 GND
19 HDMI_HTPLG
Board and Pin Assignments
instability and make
are properly installed
Pin Signal
2 GND
4 HDMI OUT_DATA1+
6 HDMI OUT_DATA1-
8 GND
10 HDMI OUT_Clock+
12 HDMI OUT_Clock-
14 N.C.
16 HDMI OUT_SDA
18 +5V
