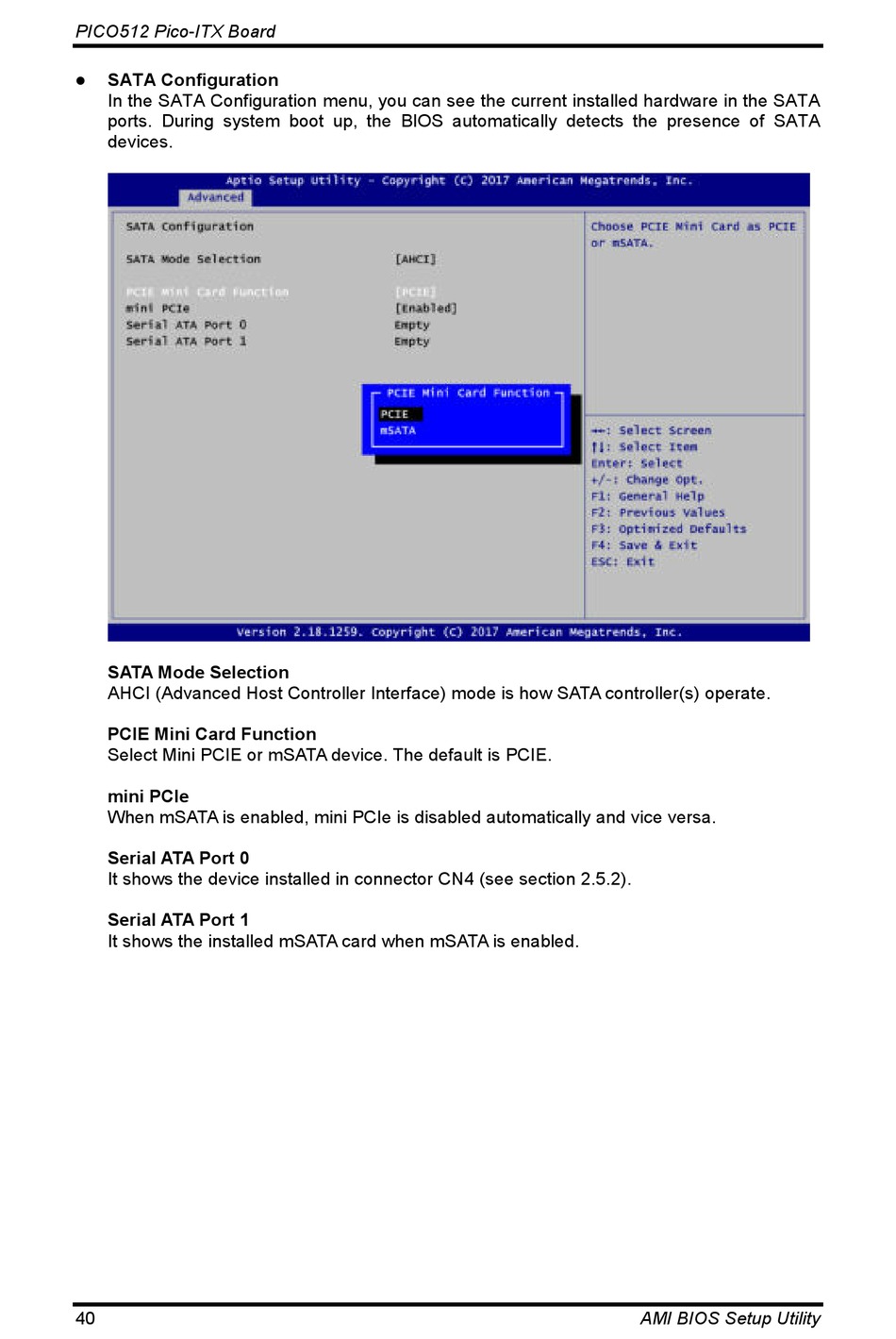

 SATA Configuration
In the SATA Configuration menu, you can see the current installed hardware in the SATA
ports. During system boot up, the BIOS automatically detects the presence of SATA
devices.
SATA Mode Selection
AHCI (Advanced Host Controller Interface) mode is how SATA controller(s) operate.
PCIE Mini Card Function
Select Mini PCIE or mSATA device. The default is PCIE.
mini PCIe
When mSATA is enabled, mini PCIe is disabled automatically and vice versa.
Serial ATA Port 0
It shows the device installed in connector CN4 (see section 2.5.2).
Serial ATA Port 1
It shows the installed mSATA card when mSATA is enabled.
