PICO512 Pico-ITX Board

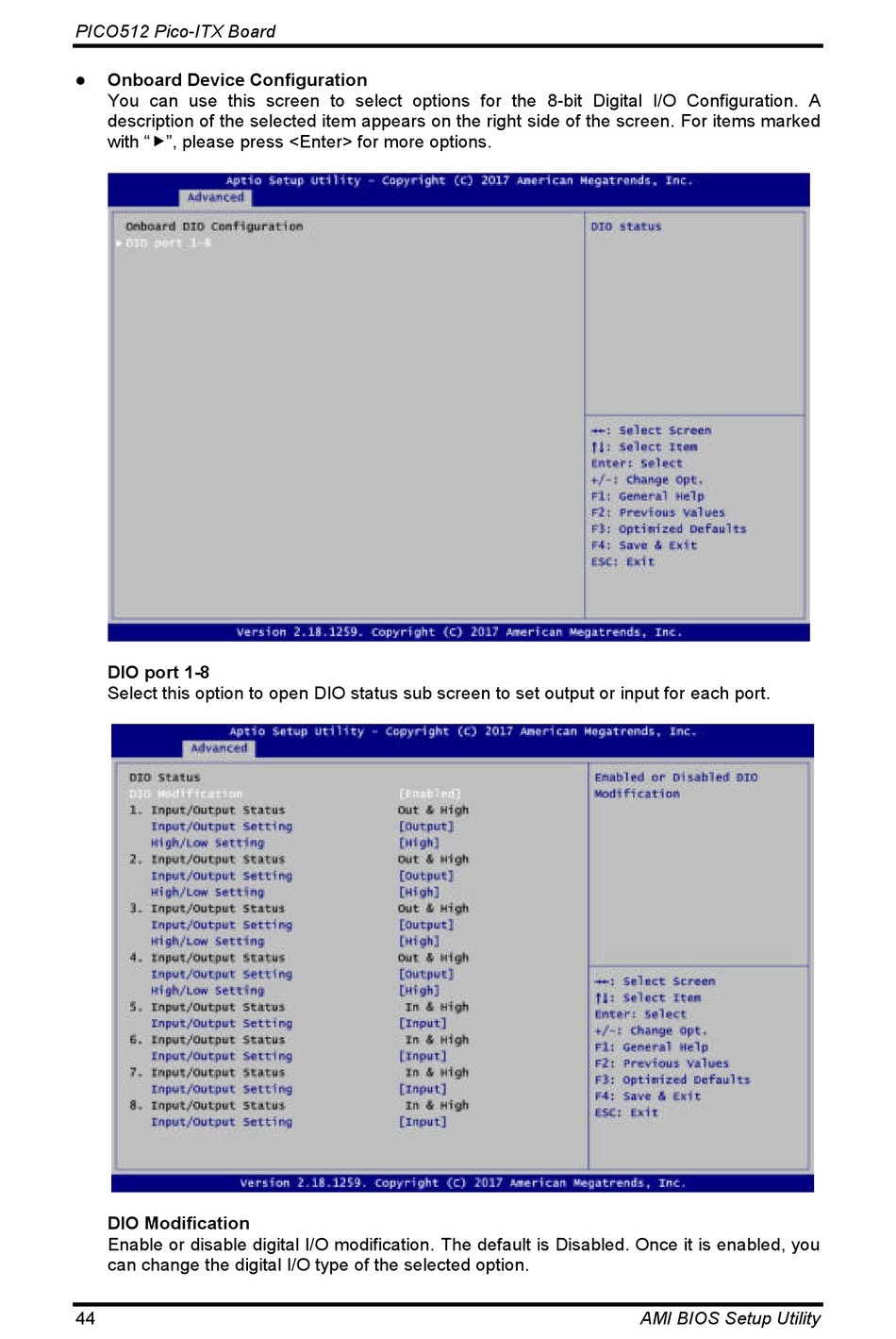

Onboard Device Configuration
You can use this screen to select options for the 8-bit Digital I/O Configuration. A
description of the selected item appears on the right side of the screen. For items marked
with "", please press <Enter> for more options.
DIO port 1-8
Select this option to open DIO status sub screen to set output or input for each port.
DIO Modification
Enable or disable digital I/O modification. The default is Disabled. Once it is enabled, you
can change the digital I/O type of the selected option.
44
AMI BIOS Setup Utility
