PICO512 Pico-ITX Board
2.4.1

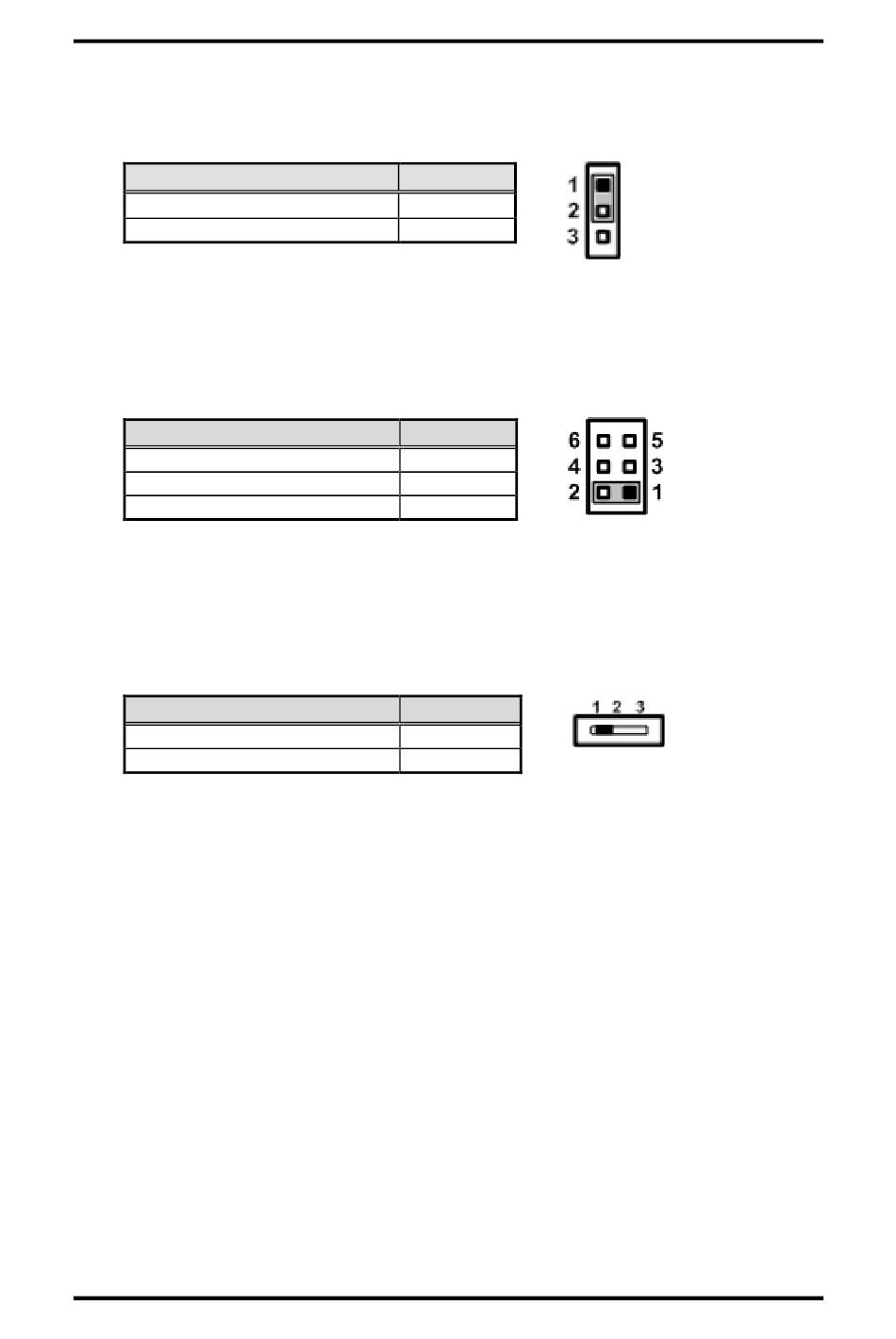

Restore BIOS Optimal Defaults (JP1)

Put jumper clip to pin 2-3 for a few seconds then move it back to pin 1-2. Doing this
procedure can restore BIOS optimal defaults.
Function
Normal (Default)
Restore BIOS optimal defaults
2.4.2

LVDS Voltage Selection (JP2)

The board supports voltage selection for flat panel displays. Use this jumper to set LVDS
connector (CN16) pin 1~6 VCCM to +3.3V, +5V or +12V. To prevent hardware damage,
before connecting please make sure that input voltage of flat panel is correct.
Function
+3.3V level (Default)
+5V level
+12V level
2.4.3

Auto Power On (SW1)

If SW1 is enabled for power input, the system will be automatically power on without
pressing soft power button. If SW1 is disabled for power input, it is necessary to
manually press soft power button to power on the system.
Function
Disable auto power on
Enable auto power on (Default)
12
Setting
1-2 close
2-3 close
Setting
1-2 close
2-4 close
5-6 close
Setting
1-2 close
2-3 close
Board and Pin Assignments
