EZ D
EVELOPMENT

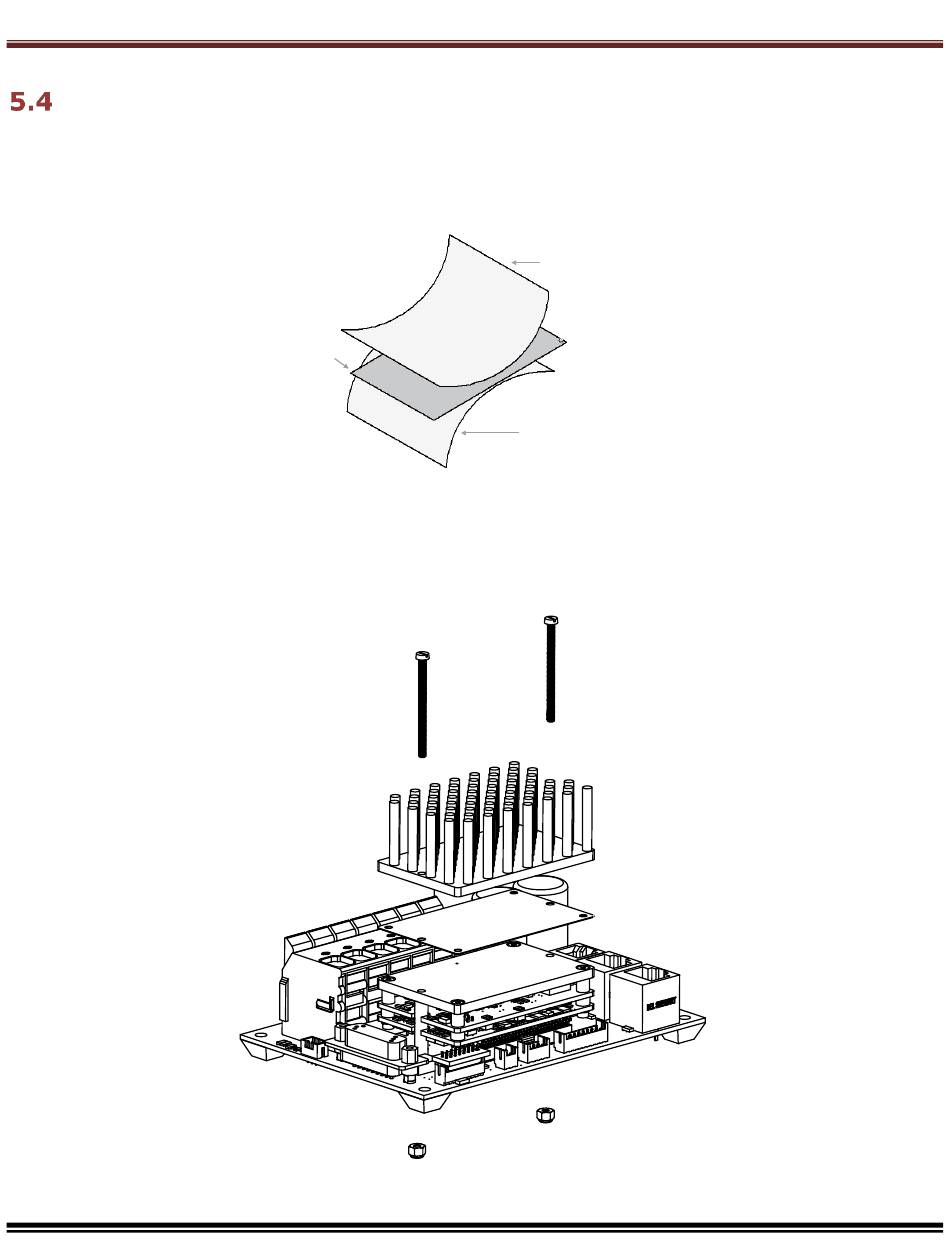

A thermal pad is used in place of heatsink grease. The pad is die-cut to shape and has holes
for the heat sink mounting screws. There are two protective sheets, blue on one side and
clear on the other. Both must be removed when the interface pad is installed.
1. Remove the blue protective sheet from one side of the pad.
2. Place the interface pad on the drive, taking care to center the pad holes
over the heatplate mounting holes.
3. Remove the clear protective sheet from the pad.
4. Mount the heatsink onto the drive taking care to see that the holes in the heatsink,
interface pad, and drive all line up.
5. Torque the M2.5 mm mounting screws to 4 in-lb, 64 in-oz, 0.45 Nm.
Copley Controls
B P
OARD INS
Dry Film
Interface Pad
H M
EATSINK OUNTING
Clear Protective Sheet
(Discard)
Blue Protective Sheet
(Discard)
