HALF OCKETED INTO THE
Signal J2 and STO J3 are socketed. Power & motor J1 are soldered. With the pins heatsink 35 mm screws are used. With
the long pins heatsink 40 mm screws are used.
CONNECTORS FOR HALF-SOCKETING
Part
Signal Socket J2
STO Socket J3
Pins Heatsink
Copley spacer
(2)
Nut (2)
P M
ANEL OUNTING WITH
AEV/APV-090-14, AEV/APV-090-30, AEV/APV-180-10, AEV/APV-180-20

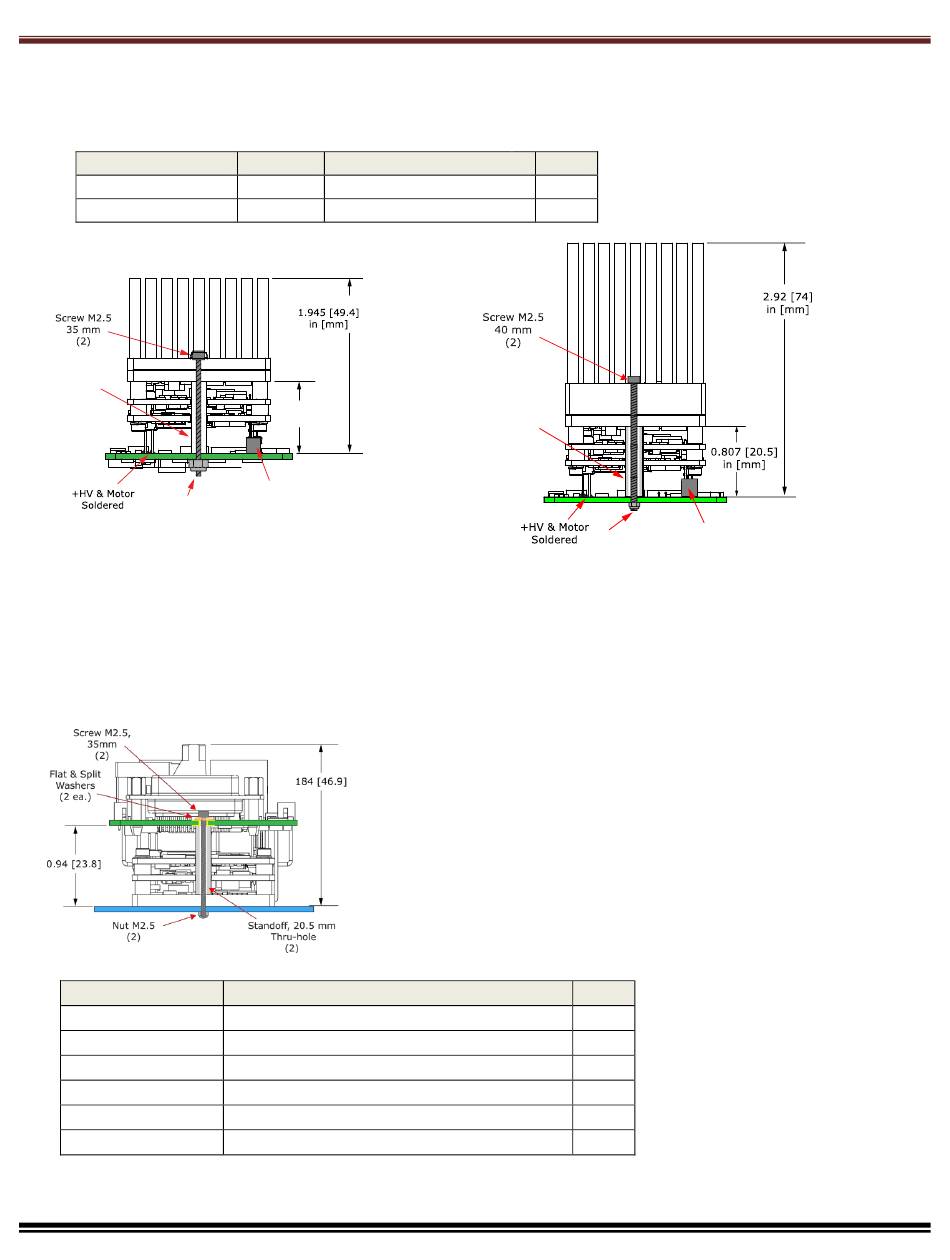

These models are shown below socketed into an EZ Board. Screws pass through the EZ Board and
standoffs to nuts that hold the drive to the panel. Tapping a hole in the panel to accept the M2.5-0.45
screw allows the drive to be mounted and removed from one side of the panel. User-designed mounting
boards should have the same conductive etch rings around the screw holes to provide PE grounding for
their circuits.
PANEL MOUNTING PARTS
Part
Screw
Nut
Thermal material
Spacer
Flat Washer
Split Lock Washer
IMPORTANT: The example shown here using the EZ Board does not apply to panel mounting of these drives:
AEV-090-50, AEV-090-50-C, APV-090-50, and APV-090-50-C. THESE MODELS ARE INCOMPATIBLE WITH THE EZ BOARD.
Copley Controls
U PC B
SER
Mfgr Part Number
Samtec FLE-132-01-DV-K-TR
Samtec TLE-102-01-G-DV-TR
0. 07 20.5
in mm
Signal S TO Sockets
EZ B
OARD
IMPORTANT
Standoffs must be metal, preferably brass. The EZ Board has
conductive etch rings on each side of the screw holes which
connect via etch through the holes. The screws then provide a
path from the PE circuits on the drive through the standoffs and
drive heatplate to the mounting panel which should be earthed.
The etch on the bottom of the holes connects to the standoffs
and drive heatplate, providing a PE ground for the heatplate.
The thermal material between the mounting board and
heatplate of the drive is non-conductive so effective grounding
of the heatplate is provided through the standoffs.
Part Number
M2.5-0.45 x 35 mm slotted cheese head
M2.5-0.45 DIN nylon lock nut
Copley
Copley non-threaded spacer 20.5 mm
Metric, M2.5, flat
Metric, M2.5, lock
OARD
Qty
1
1
Copley spacer
(2)
Nut (2)
Qty
2
2
1
2
2
2
16-01687 Rev 03
Tall Pins Heatsink
Signal S TO Sockets
AEZ/APZ-090-50
These models have the
motor, +HV, and grounding
pins soldered to the EZ
board. The signal and STO
pins are socketed. The
dimensions and mounting to
a panel are the same as the
AEV & APV models.
Page 35 of 139
