Accelnet Plus Micro Modules User Guide
AEZ, APZ S
ECONDARY

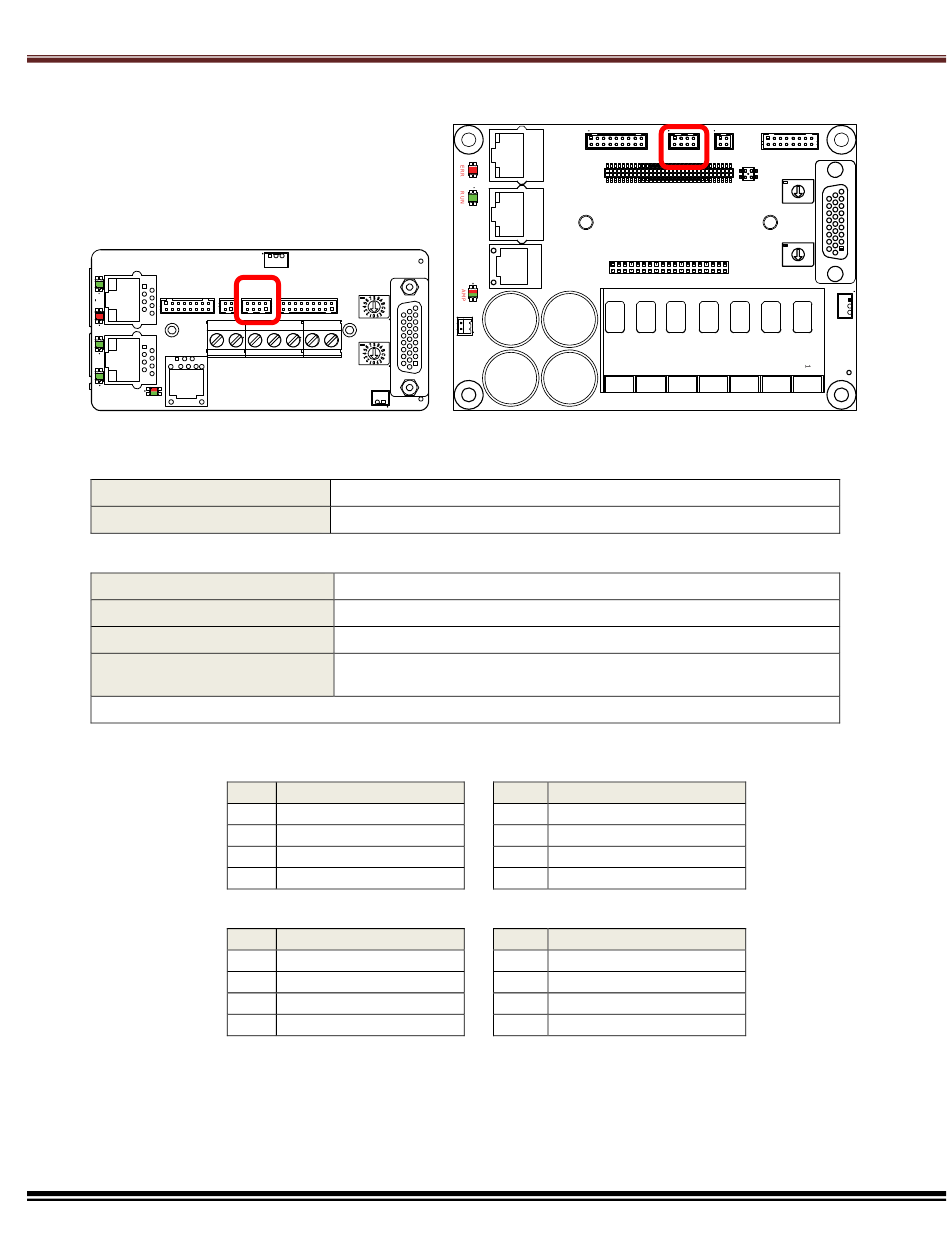

Top View
The views shown are of AEV but the I/O
connectors are the same for the APV.
S E
ECONDARY NCODER
Description
Manufacturer PN
S E
ECONDARY NCODER
Description
Manufacturer PN
Wire Size
Recommended Wire
Connectors and contacts are included in Connector Kits AEV-EZ-CK, APV-EZ-CK
J4 P D
IN ESCRIPTIONS
J4 P S
IN IGNALS
Copley Controls
E C
NCODER ONNECTOR
EZ B
OARD
R
ECEPTACLE
Male receptacle, 2.0 mm, 2 row, 8-position
Hirose Electric: DF11-8DP-2DSA(01)
P
LUG
Locking, 2.0 mm, 2 row, 8-position, pluggable female receptacle.
Hirose Electric: DF11-8DS-2C
28~22 AWG
28~22 AWG, 600 V
Shielded cable required for CE compliance
Pin EZ Boards
1 Enc2 /A
2 Enc2 A
3 Enc2 /B
4 Enc3 B
Pin Signal
1 /ENCA2
2 ENCA2
3 /ENCB2
4 ENCB2
J4 L
OCATION
11
5
1
12
2
EZ D
EVELOPMENT
Pin EZ Boards
5 Enc2 /X
6 Enc2 X
7 +5V ENC
8 SGND
Pin Signal
5 /ENCX2
6 ENCX2
7 +5VENC
8 SGND
