Accelnet Plus Micro Modules User Guide

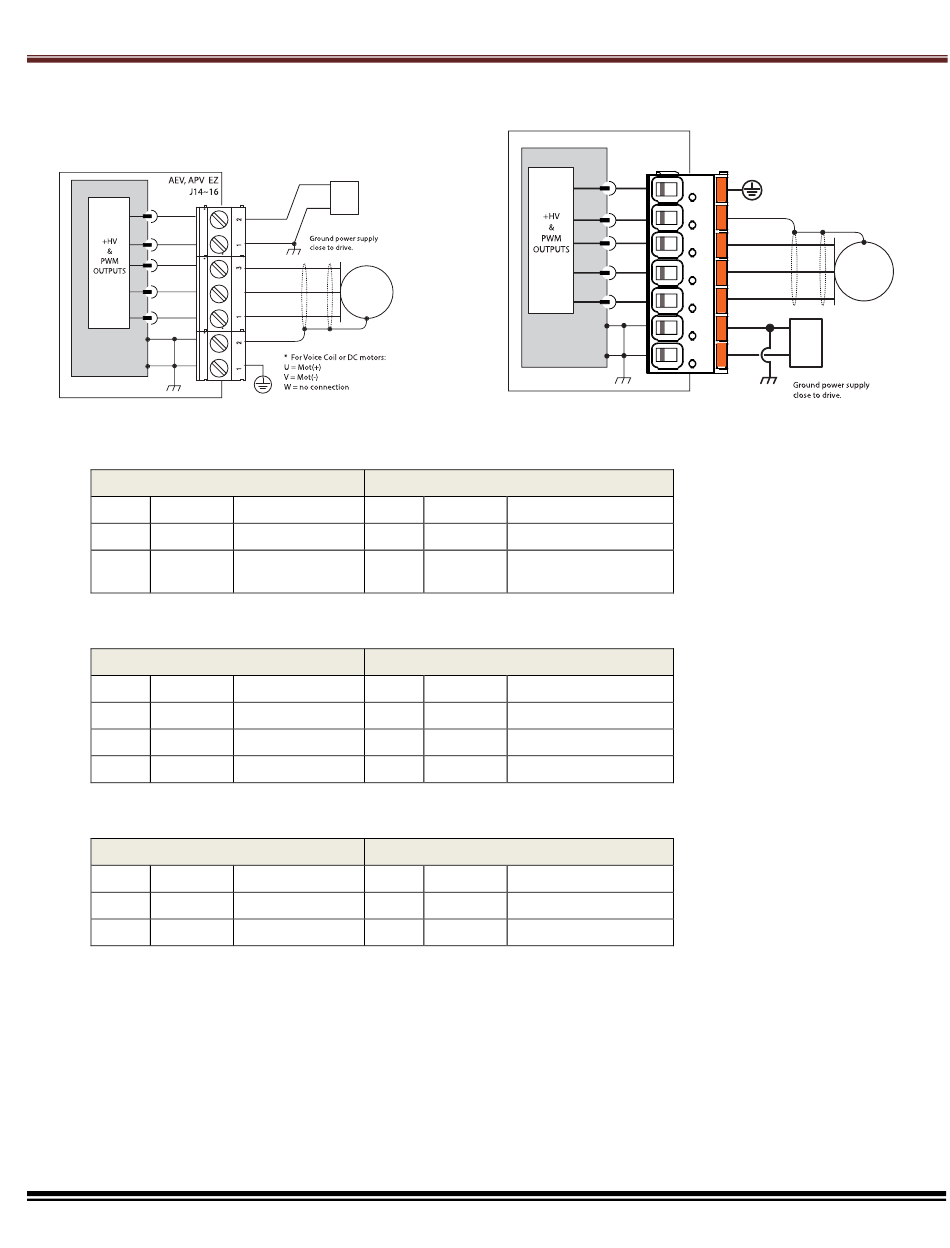

EZ BOARD
P E
ROTECTIVE ARTH
EZ Board J14
Pin Signal
2 FGND
1 PE
M C
OTOR ONNECTIONS
EZ Board J16
Pin Signal
3 MOTW
2 MOTV
1 MOTU
+HV C
ONNECTIONS
EZ Board J15
Pin Signal
2 +HV
1 HVCOMM
Copley Controls
V
& G C
ROUND ONNECTIONS
EZ Development Board J17
Function Pin
Frame Ground 1
Protective Earth 2
EZ Development Board J17
Function Pin
Motor W 3
Motor V 4
Motor U 5
EZ Development Board J17
Function Pin
DC Power 6
DC Ground 7
EZ DEVELOPMENT BOARD
Signal Function
PE Protective Earth
Frame Ground
FGND
(CHGND on PC board)
Signal Function
MOTU Motor U
MOTV Motor V
MOTW Motor W
Signal Function
HVCOMM DC Ground
+HV DC Power
