Product Layout

1. Micro USB Port: For firmware update
2. IR In: Receives IR signals from the included remote
control
3. Input LED: HDMI Input indicator for HDMI Out 1/
2/3/4 or EDID indicator for HDMI In 1/2/3/4
4. HDMI Out 1 Select Button: Press to select the
HDMI input device to display on HDMI Out 1
5. HDMI Out 2 Select Button: Press to select the
HDMI input device to display on HDMI Out 2
6. HDMI Out 3 Select Button: Press to select the
HDMI input device to display on HDMI Out 3
7. HDMI Out 4 Select Button: Press to select the
HDMI input device to display on HDMI Out 4
Select Button Functions
Select Button
HDMI Out 1-4
HDMI Out 1-4
HDMI Out 1 + HDMI
Out 4
4

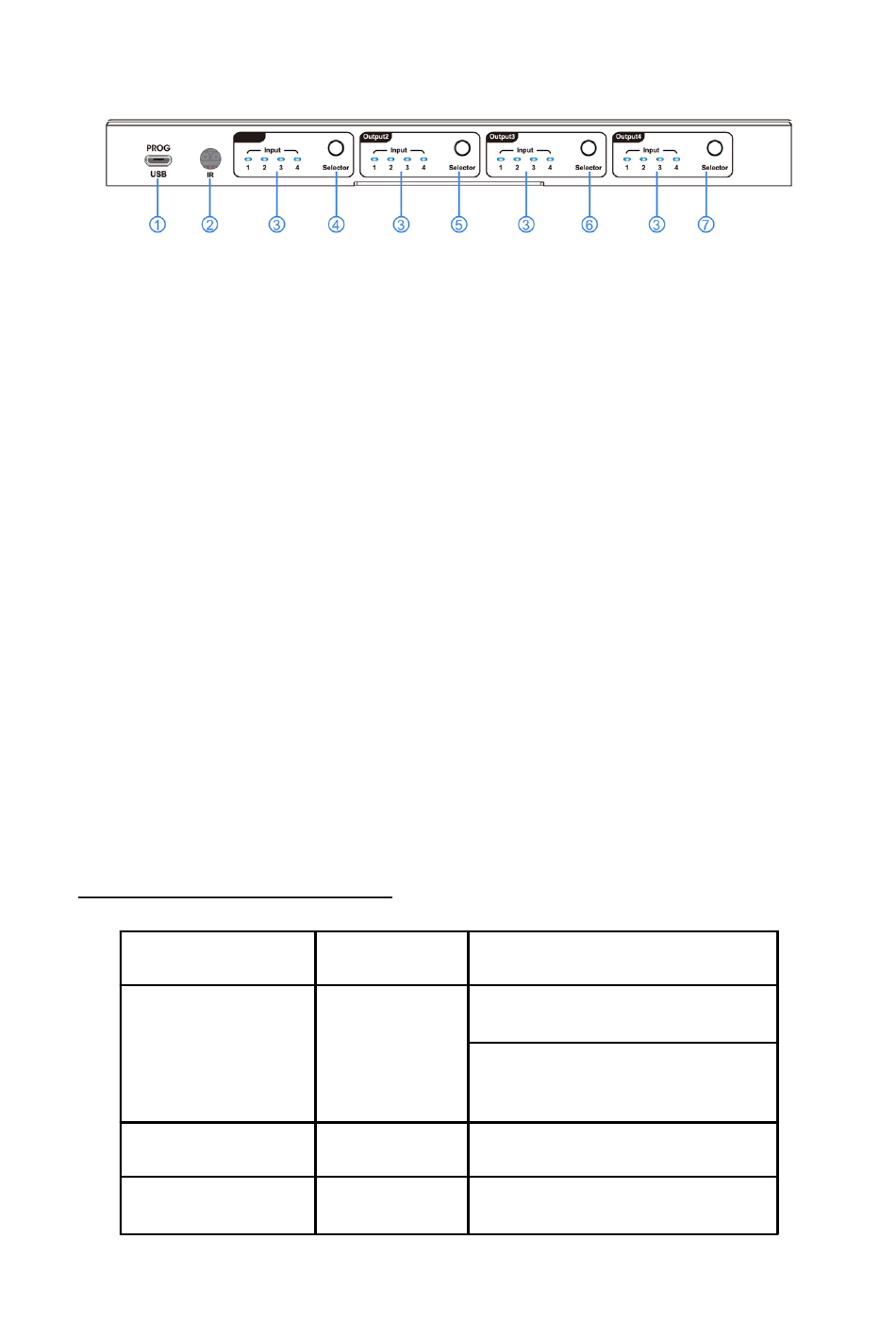

Figure 1: Front Panel Layout
Operation
1. Selects the HDMI Input device for
Short press
2. Selects the EDID for HDMI Out 1-
4 when EDID management mode is
enabled
Long press
Long press
simultaneously
Function
HDMI Out 1-4
Enter/Exit EDID management mode
Reset the Matrix to default settings
