Hardware Installation - gofanco Matrix44HD2-LT User Manual

4x4 hdmi 2.0 matrix lt
Table of Contents

Advertisement

1.
HDMI In (1-4): Connect to your HDMI sources
2.
HDMI Out (1-4): Connect to your HDMI displays
3.
Power Jack: Connects to the included power adapter

Hardware Installation

1.
Power off all devices including your HDMI
source(s) and HDMI display(s).
2.
Connect your HDMI source devices to the Matrix's
HDMI In connectors with HDMI cables (HDMI
cables not included).
3.
Connect your HDMI displays to the Matrix's HDMI
Out connectors with HDMI cables (HDMI cables
not included).
4.
Plug the included power adapter into the Matrix's
Power Jack, then plug the power adapter into a
reliable power outlet.
5.
Power on all connected devices. The Matrix is
ready for use.

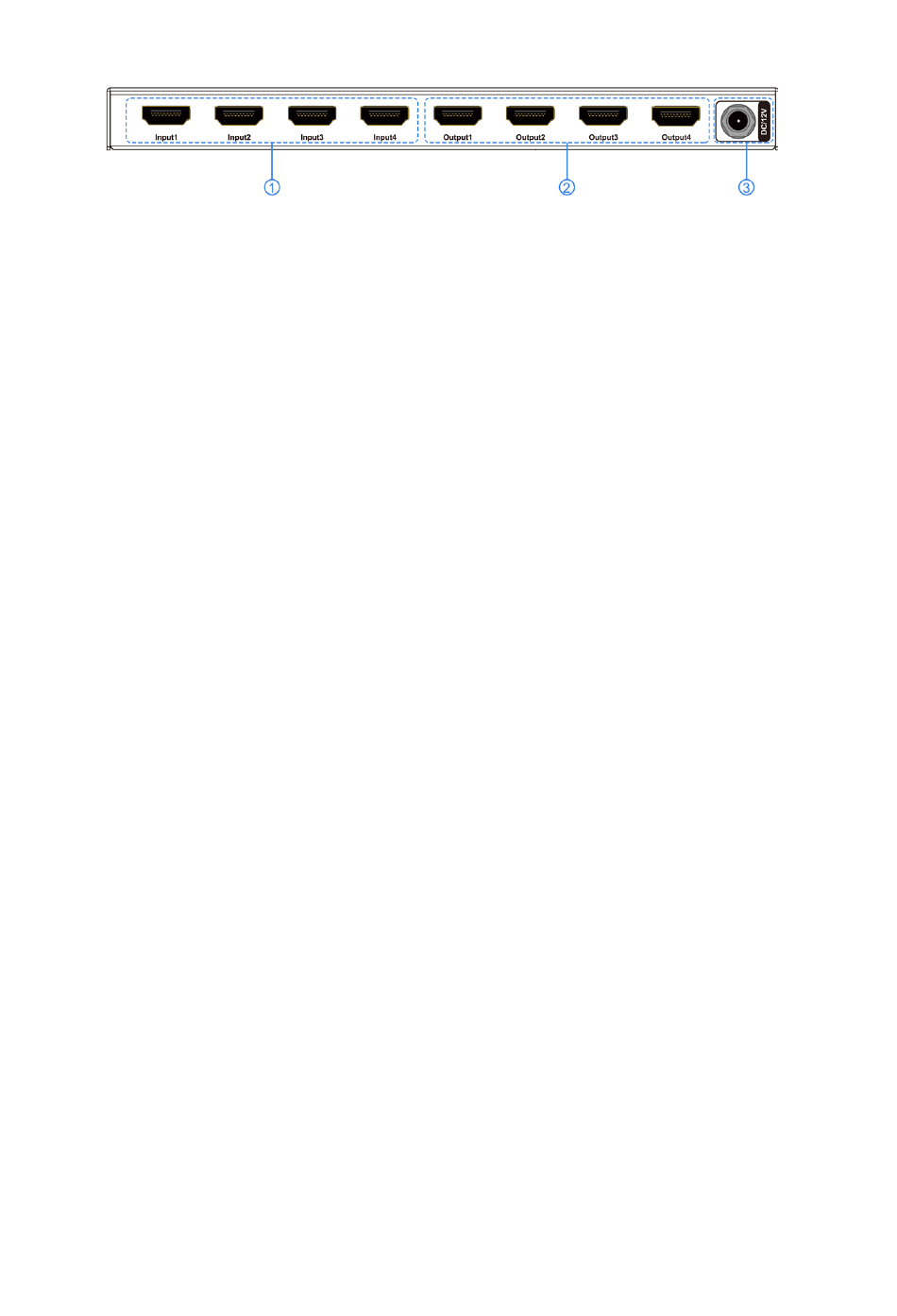

Figure 2: Rear Panel Layout
