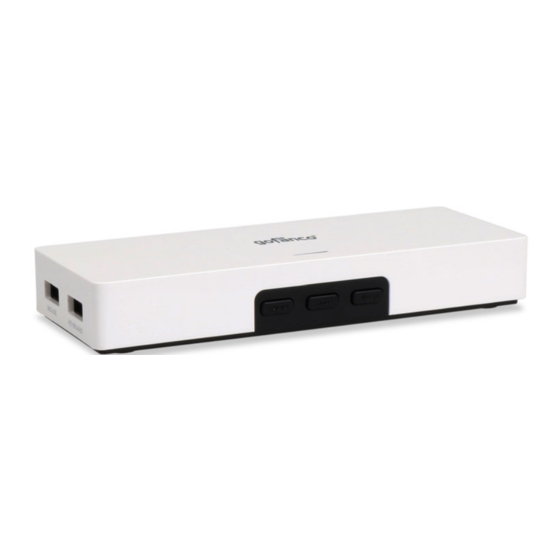

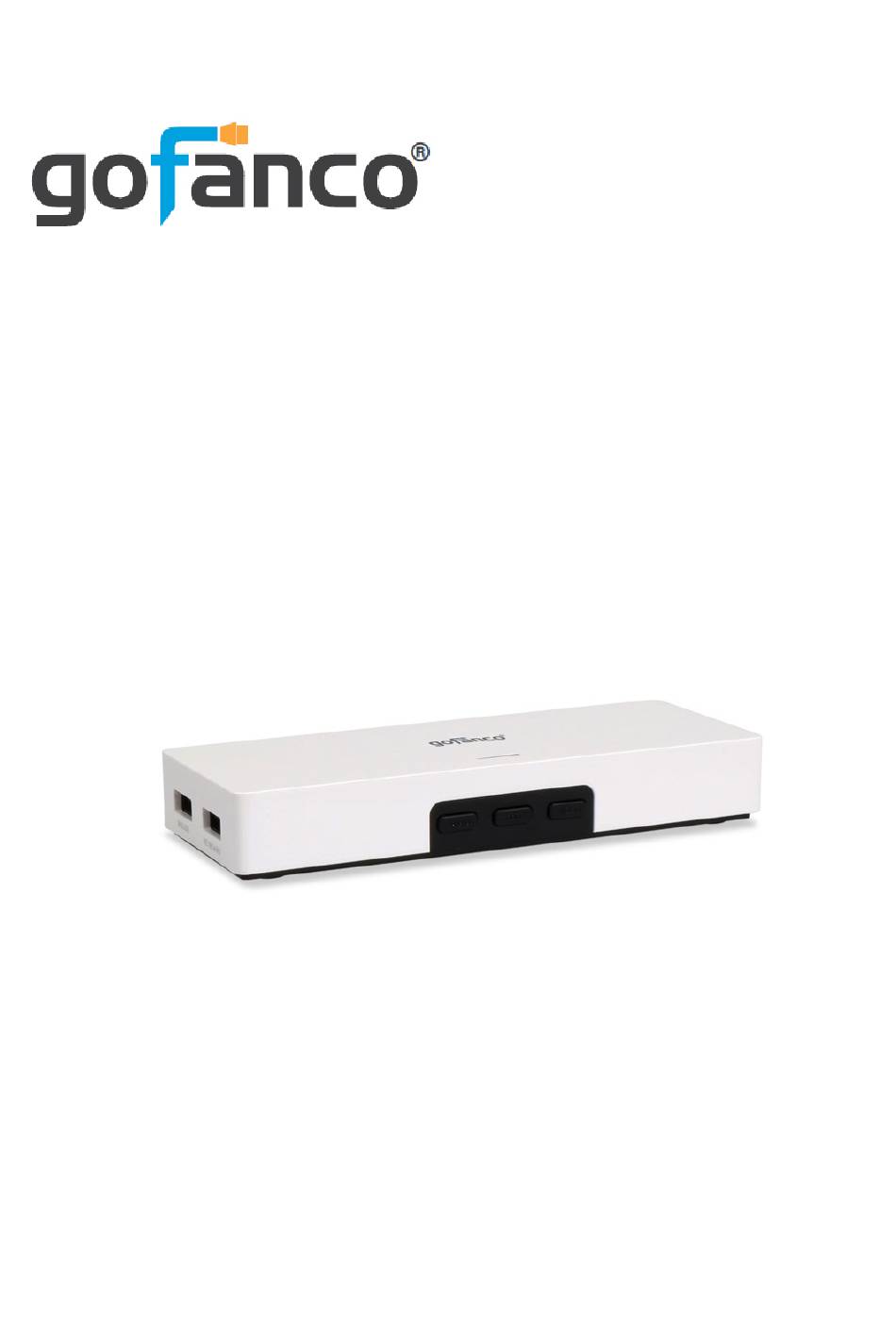

- Page 1 2-in-1 HDMI KVM Scaler & Switch Console User's Guide P/N: KVMScaler2P G4-0080A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 Important Safety Notices Please read safety instructions carefully before installation and operation. • Please pay close attention to all warnings and hints for this device • Do not expose this unit to heavy moisture or liquids • Do not repair the device or open the enclosure without professional guidance to avoid electric shocks.
- Page 4 Introduction The 2-in-1 HDMI KVM Scaler & Switch Console allows you to control 2 computers using one keyboard and mouse. Features • 4 display modes - Single screen, Picture-in- Picture (PiP) split screen, Vertical split screen, Horizontal split screen - controlled by OSD menu or push button •...
-
Page 5: Product Layout
Product Layout Switches the audio signal between PC1 and 1. Audio Button Switches within the 4 video modes: Full screen, Picture-in-Picture (PiP) split screen, 2. Mode Button left and right split screen, top and bottom split screen Switches the active screen between PC1 3. -
Page 6: Hardware Installation
Hardware Installation Power off all devices including your computers and HDMI display. Connect the KVM's PC1's HDMI In and USB to computer 1, and connect PC2's HDMI In and USB to computer 2 (HDMI cables not included). Connect the keyboard and mouse to the KVM. - Page 7 Input Audio Source Right click the volume control icon in the Windows taskbar and select audio device. Select KVM sound option below. Click OK to save the changes. Reset the Resolution If you have any problems with the display output, press and hold down both Mode and Video buttons simultaneously for 10 seconds to reset the resolution to 1080p@60Hz.
- Page 8 Mouse Control There are 2 mouse modes, PC mouse and Virtual mouse. The PC mouse cursor is white in color, while the Virtual mouse cursor is large and yellow in color. Virtual Mouse Virtual Mouse allows you to control the KVM functions such as full and split screen mode, audio settings, resolution, and advanced settings using your mouse through the On Screen Display...
- Page 9 On Screen Display Menu (OSD) Make sure you are in Virtual mouse mode, move the yellow mouse cursor to the top center of the screen to display the OSD menu. Split Screen Modes In split screen mode the Virtual mouse cursor can travel from one screen to the other.
- Page 10 PC Mouse Switches from Virtual mouse to PC mouse. Note: Works in split screen modes only. Resolution The default resolution is 1080p@60Hz. Click this button to toggle between 4K@30Hz and the default resolution. Note: If your monitor goes blank after switching to 4K@30Hz, hold down the Mode and Video front panel buttons simultaneously for 10 seconds to reset the resolution to default.
- Page 11 Settings Click this button to access advanced settings for mouse, menu, and other options. Setup Mouse Mode Relative mouse: Allows the mouse to work in only one screen at a time. Absolute mouse: Allows the mouse to work in both screens. Note: In full screen mode, the mouse cursor will move off the left or right side of the display and show the screen of other computer.
- Page 12 Sleep Time Use the left or right mouse button to change the sleep time. Menu Allows you to change the menu color, text color, background color, and menu position. Use the left or right mouse button to change the setting.
-
Page 13: Specifications
Specifications 2 HDMI (F) Input Port 2 USB 2.0 Type-B (F) 1 Power Jack 1 HDMI (F) Output Ports 2 USB 2.0 Type-A (F) HDMI Specification HDMI 1.4 Resolution 1080p@60Hz / 3840x2160@30Hz Video Bandwidth 10.2 Gbps USB Specification USB 2.0, 480Mbps Audio Format DTS, DSD, Dolby AC3 5.1, 7.1Ch Audio Sample Rate... - Page 14 Blank Page...
- Page 15 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
- Page 16 Thank you for choosing gofanco www.gofanco.com...
