Application Diagram

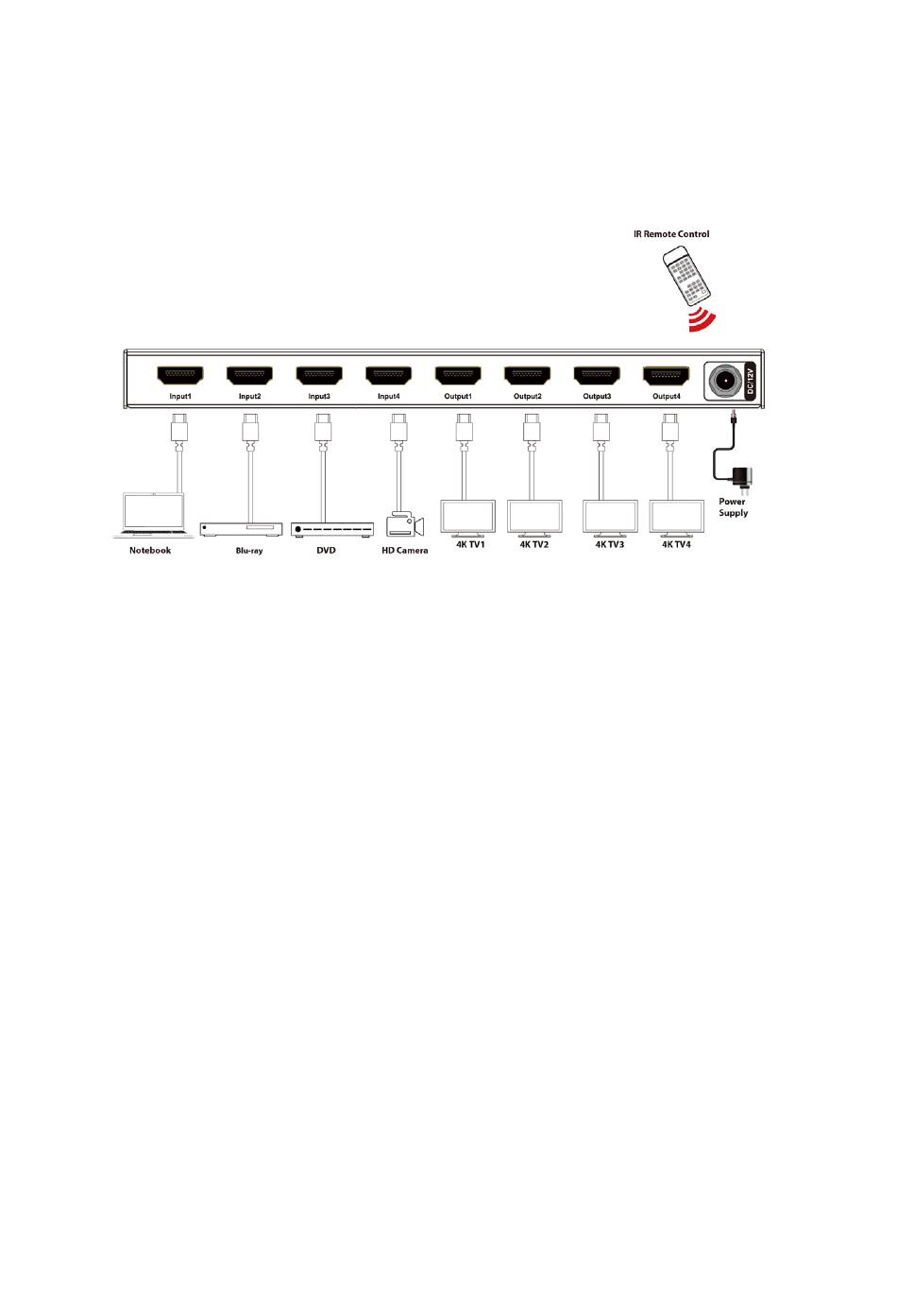

The application diagram shows the most typical input
and output devices used with the 4x4 HDMI 2.0
Matrix LT.
Figure 3: Application Diagram
