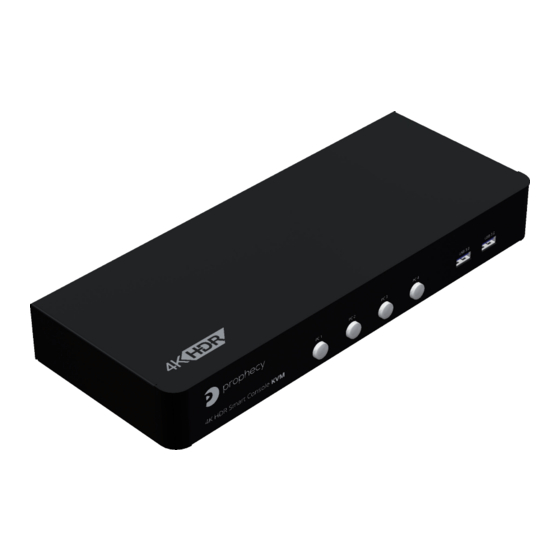

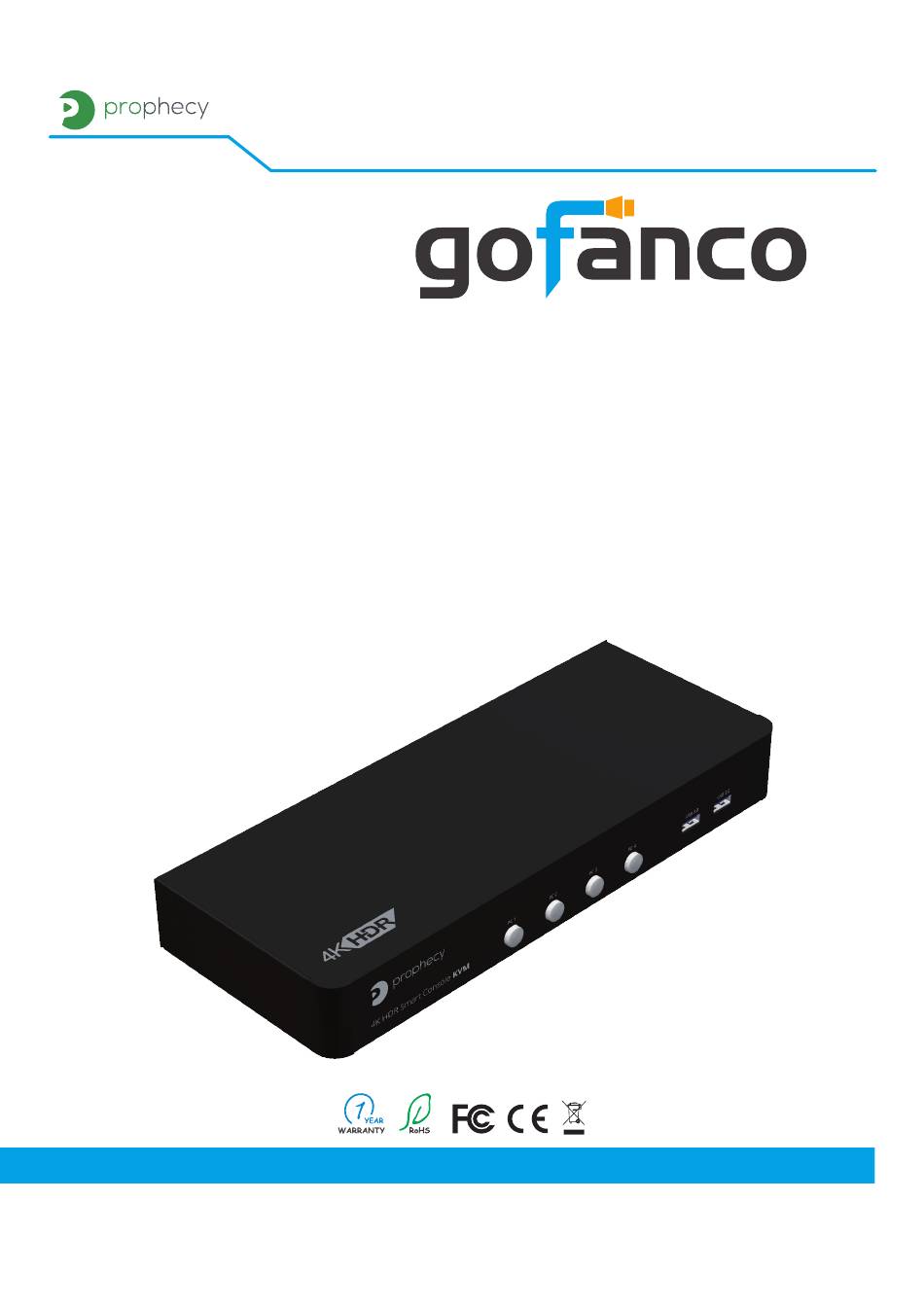

- Page 1 ® PRO-KVMDP-4P 4-Port DisplayPort 1.2 4K KVM Switcher User‘s Guide Made in Taiwan...
- Page 2 ® PRO-KVMDP-4P Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
-
Page 3: Table Of Contents
® PRO-KVMDP-4P Table of Contents 1. Safety and Notice ..............3 2. -
Page 4: Introduction
® PRO-KVMDP-4P 2. Introduction The PRO-KVMDP-4P 4-Port DisplayPort 1.2 4K KVM Switcher provides the most fle- xible and cost effective solution in the market for multiple computer management at home & office. The KVM switch can control 2 DisplayPort USB computers by one set of console peripherals (keyboard, mouse &... -
Page 5: Specification
® PRO-KVMDP-4P 5. Specifications Item Description Technical Role of usage 2-Port DisplayPort KVM Switch DP compliance DP 1.2 Maximum total 21.6Gbps bandwidth Video support Up to 4K2K@60 4:4:4 8bits ESD protection Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge] Input 2x DisplayPort/ 2x USB 3.0(type B)/ 3x 3.5mm phone jack Output... -
Page 6: Connection Diagram
® PRO-KVMDP-4P 6. Connection Diagram... -
Page 7: Panel Description
® PRO-KVMDP-4P 7. Panel Description Front Panel 1. Port 1-4 Selection Push Button: Switch between computers 2. USB 3.0 Hub: Connect to USB devices Rear Panel 13 14 15 3. Console USB Ports: Connect tokeyboard & mouse 4. Signal Level: Adjust the equalization control to receive DisplayPort signals. [Left]: EQ is weaker (short DisplayPort cables) [Right]: EQ is stronger (long DisplayPort cables) 5. -
Page 8: Hotkey
® PRO-KVMDP-4P 8. Hotkey Default setting, all of the following commands begin by pressing the [Scroll Lock] key twice. Please follow the hotkey command listed below for selected operating functions: Hot key Definition [Scroll Lock] + [Scroll Lock] + [Ctrl] + [Enter] Change [Scroll Lock] [Scroll Lock] to [Ctrl] [Ctrl] [Ctrl] + [Ctrl] + [Scroll Lock] + [Enter] Change [Ctrl] [Ctrl] to [Scroll Lock] [Scroll Lock]... -
Page 9: Firmwave Update
® PRO-KVMDP-4P 9. Firmwave update Firmware update is proceeded through Micro-USB KVM F/W update 1. Connect the Micro-USB to USB cable between PC and device 2. Set dip switch PIN#1 to ON[] and then power on device 3. Open firmware update software and then select COM Port 4. - Page 10 ® PRO-KVMDP-4P 5. After updating, please set the dip switch PIN#1 to OFF [] and power cycle the device...
-
Page 11: Warranty
® PRO-KVMDP-4P 10. Limited Warranty The SELLER warrants the PRO-KVMDP-4P 4-Port DisplayPort 1.2 4K KVM Switcher free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any un- authorized modifications including static discharge and power surge. - Page 12 ® Thank you for choosing gofanco www.gofanco.com May, 2020 Ver. A Copyright © by gofanco, LLC. All rights reserved.
