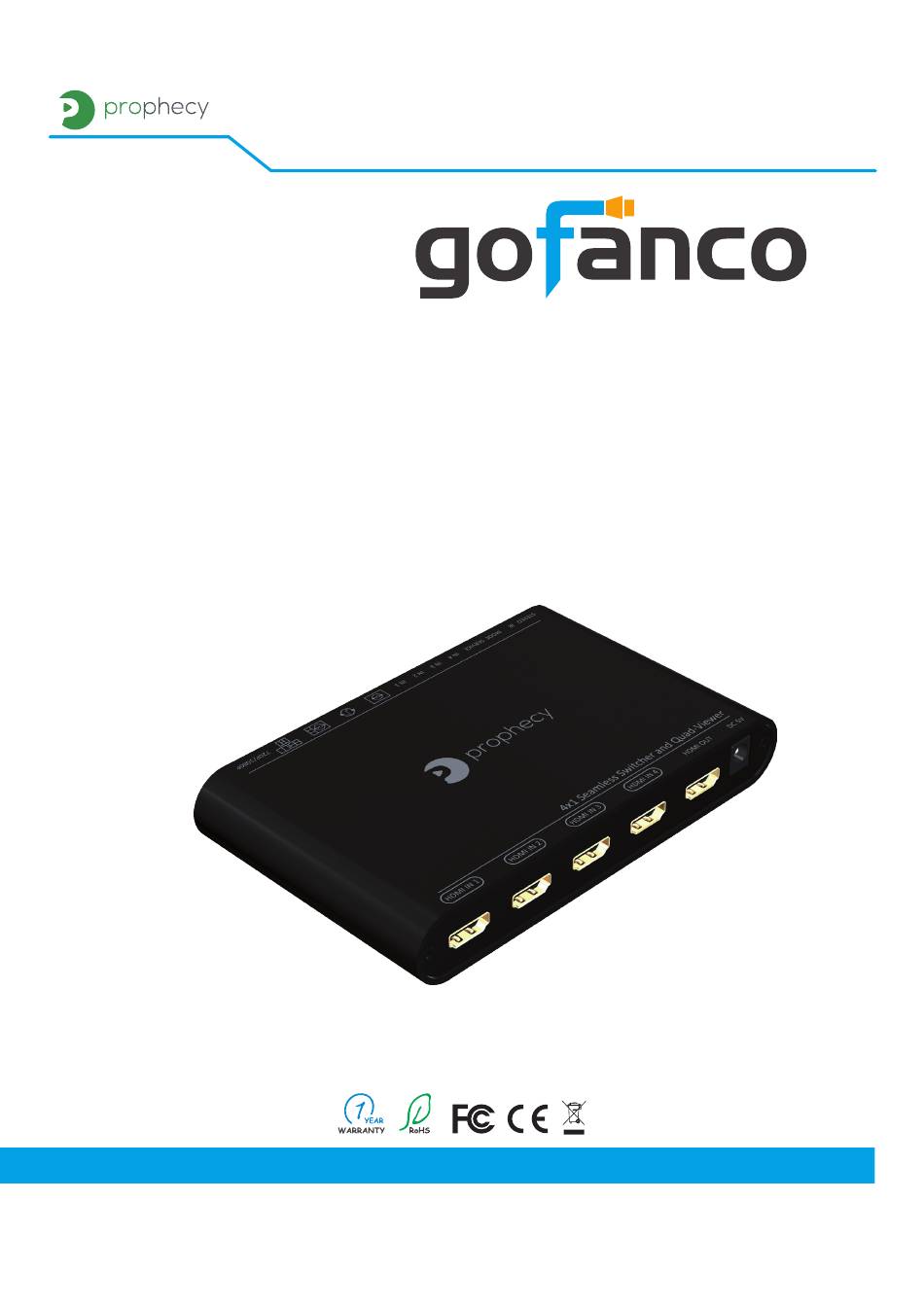

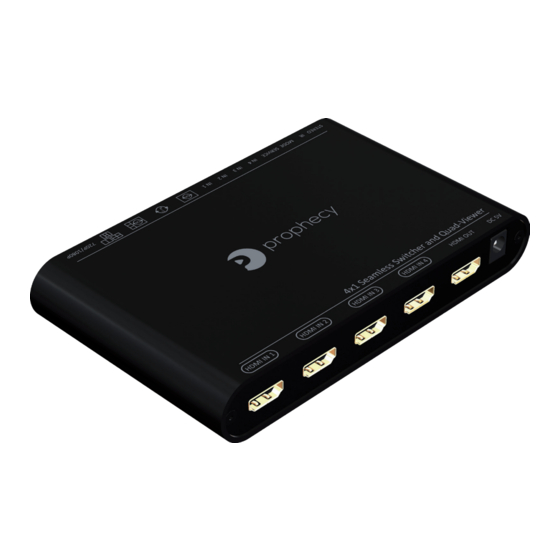

- Page 1 ® PRO-QuadView 4x1 HDMI Quad-Viewer & Seamless Switcher User‘s Guide Made in Taiwan...
- Page 2 ® PRO-QuadView Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
- Page 3 ® PRO-QuadView 1. Introduction The PRO-QuadView 4x1 HDMI Quad-Viewer & Seamless Switcher provides the most flexible and cost effective so- lution in the market to route high definition video source from any of the four HDMI sources to the remote display at the same time.
- Page 4 • Firmware upgradable for support of new features and technology enhancements • Software control through micro-USB • Supports IR remote, software and push button control 4. Package Contents • 1x PRO-QuadView • 1x DC 5V 2A • 1x IR Remote control (15 keys) • 1x User Manual...
-
Page 5: Specifications
® PRO-QuadView 3. Specifications Item Description Technical Role of usage Multi-viewer/ video processor HDCP compliance HDCP 1.4 HDMI [6.75Gbps] Video bandwidth Output Video Support 720p60/ 1080p60 Input Video Support 480i/480p/576i/576p/720p/1080i/1080p Video Format Support DVI/HDMI Audio support Bypass Control IR remote, software and push button control... - Page 6 ® PRO-QuadView 5. Connection Diagram...
-
Page 7: Panel Description
® PRO-QuadView 6. Panel Description Front Panel 2 3 4 1. Stereo output (3.5mm) 2. IR SENSOR: IR sensor for receiving the IR commands from IR re- mote 3. Dip Switch: [UP] Normal mode; [DOWN] Firmware Update mode 4. Micro-USB: for software control or firmware update 5. - Page 8 ® PRO-QuadView Real Panel 11. SOURCE 1-4: HDMI inputs (from the left to the right is input 1-4) 12. HDMI OUT: HDMI output 13. +5V DC: 5V DC power jack...
-
Page 9: Operation Approach
® PRO-QuadView 7. Operation Approach Method A: IR Remote Control Button Function POWER Power ON/OFF the device Reserved Reserved CH 1 Input 1 in One-View Mode CH 2 Input 2 in One-View Mode CH 3 Input 3 in One-View Mode... - Page 10 ® PRO-QuadView Method B: Software Control through Micro-USB port 1. System Requirement (1) OS information: MS Win XP/7/8/10 (2) Baud rates: 115200 (3) Software size: 3KB (4) Minimum RAM requirement: 256MB 2. Control Interface Before clicking on the icon of the software, make sure you have secured the connection between your computer COM port and the 4K EDID Emulator.
- Page 11 ® PRO-QuadView Refresh COM Port Selection & Connection Status Factory Reset Video Switch – One-View Mode (Full Screen) Video Switch – Quad-View Mode Video Switch – Dual-View Mode Audio Switch Input Information Output Resolution System Update...
- Page 12 ® PRO-QuadView (1) Refresh This button can get all information of the device and update this soft- ware state. (2) COM Port Selection & Connection Status Please ensure you have secured the connection between your com- puter COM port and the device. Select correct COM port and click the connection/disconnect button to connect software.
- Page 13 ® PRO-QuadView (7) Audio Switch To set up the audio source of the output (stereo and HDMI). (8) Input Information Show the input source resolution. You also can click button to refresh input resolution information. (9) Output Resolution We provide 2 most common output resolution (1080p & 720p) for user select.
-
Page 14: Limited Warranty
® PRO-QuadView 8. Limited Warranty The SELLER warrants the PRO-QuadView 4x1 HDMI Quad-Viewer & Se- amless Switcher free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized de- aler. - Page 15 ® PRO-QuadView Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user‘s guide. The pictures on the user‘s guide are just for reference, and there may be some slight differences with the actual products.
- Page 16 ® Thank you for choosing gofanco www.gofanco.com Apr, 2019 Ver. A Copyright © by gofanco, LLC. All rights reserved.
