Summary of Contents for gofanco mDPMST2DP

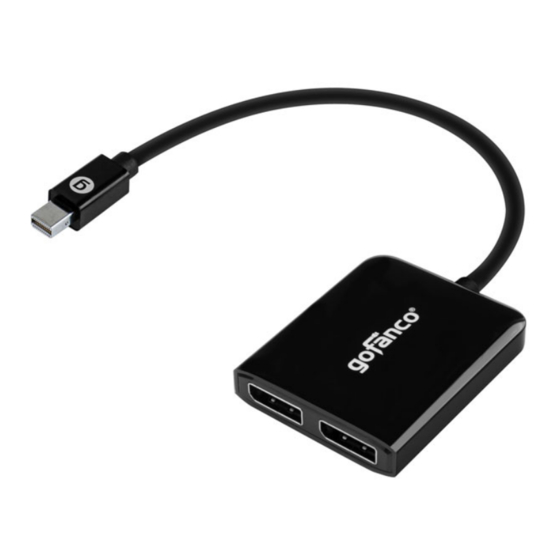

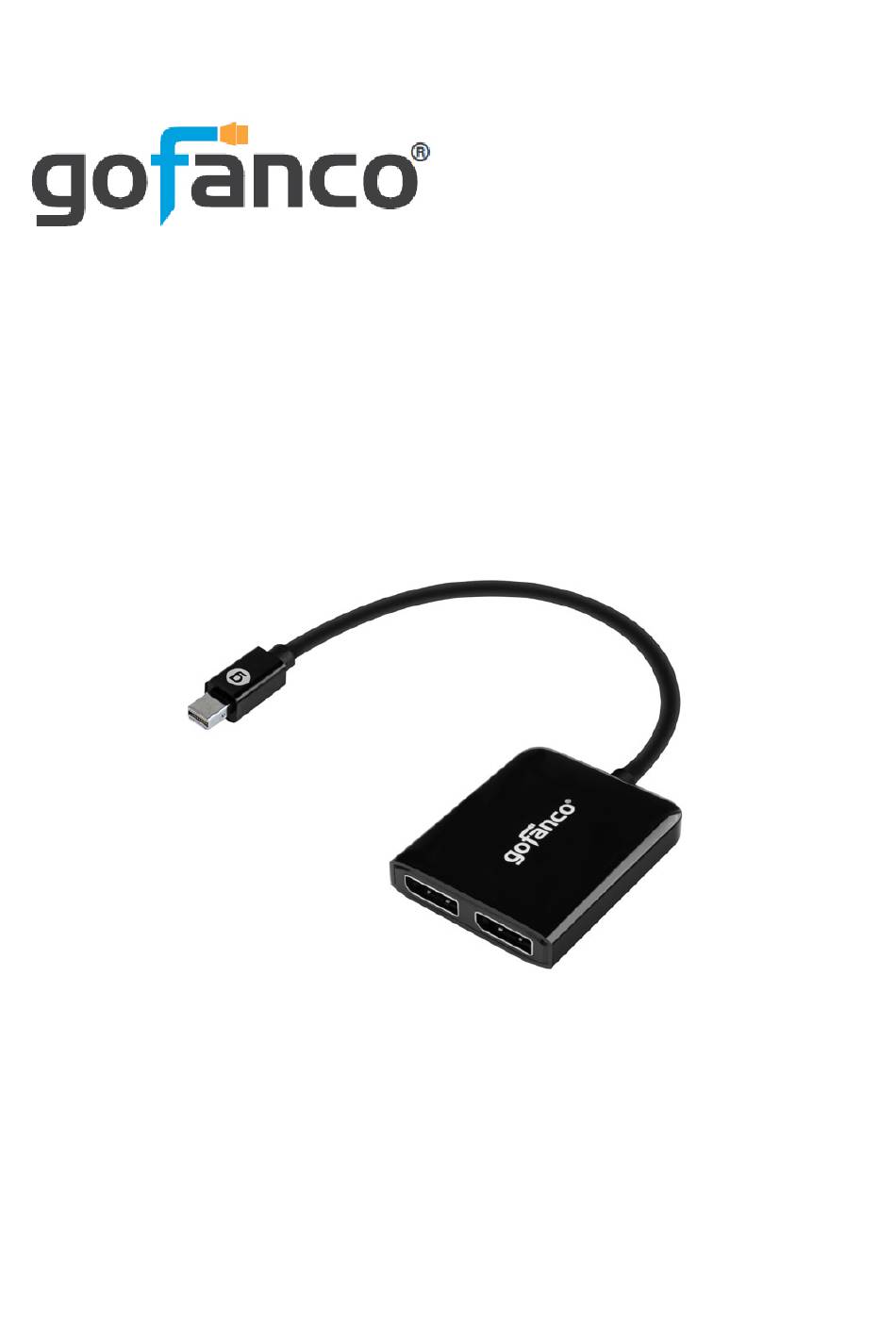

- Page 1 Mini DisplayPort MST Hub to 2x DisplayPort User's Guide P/N: mDPMST2DP G4-0042A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 Introduction gofanco Mini DisplayPort MST Hub to 2x DisplayPort (part# mDPMST2DP) enables you to connect with 2 external monitors to your Mini DisplayPort enabled computer for multitasking. Specifications Output Signal DisplayPort Ports Compliance DP 1.2 Input: 1x Mini DisplayPort, Male...
- Page 4 Product Layout Power Jack (Micro-USB) Mini DisplayPort Input DP Output (x2) Figure 1: Layout Mini DisplayPort Input: Connect to PC's • Mini DisplayPort DP Output (x2): Connect to DisplayPort • displays with DP cables (not included) Or connect to DP adapters (not included) to HDMI, DVI or VGA to use with HDMI/ DVI/VGA displays Power Jack (Micro-USB): Connect to PC's...
- Page 5 Hardware Installation Important: If the source Mini DisplayPort output doesn't support DP 1.2, the Multi-Stream Transport (MST) function will be disabled and this hub becomes a Splitter, mirroring your video source across all displays. Power off all devices you plan to connect to the unit.
- Page 6 Blank Page...
- Page 7 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
- Page 8 Thank you for choosing gofanco www.gofanco.com...
