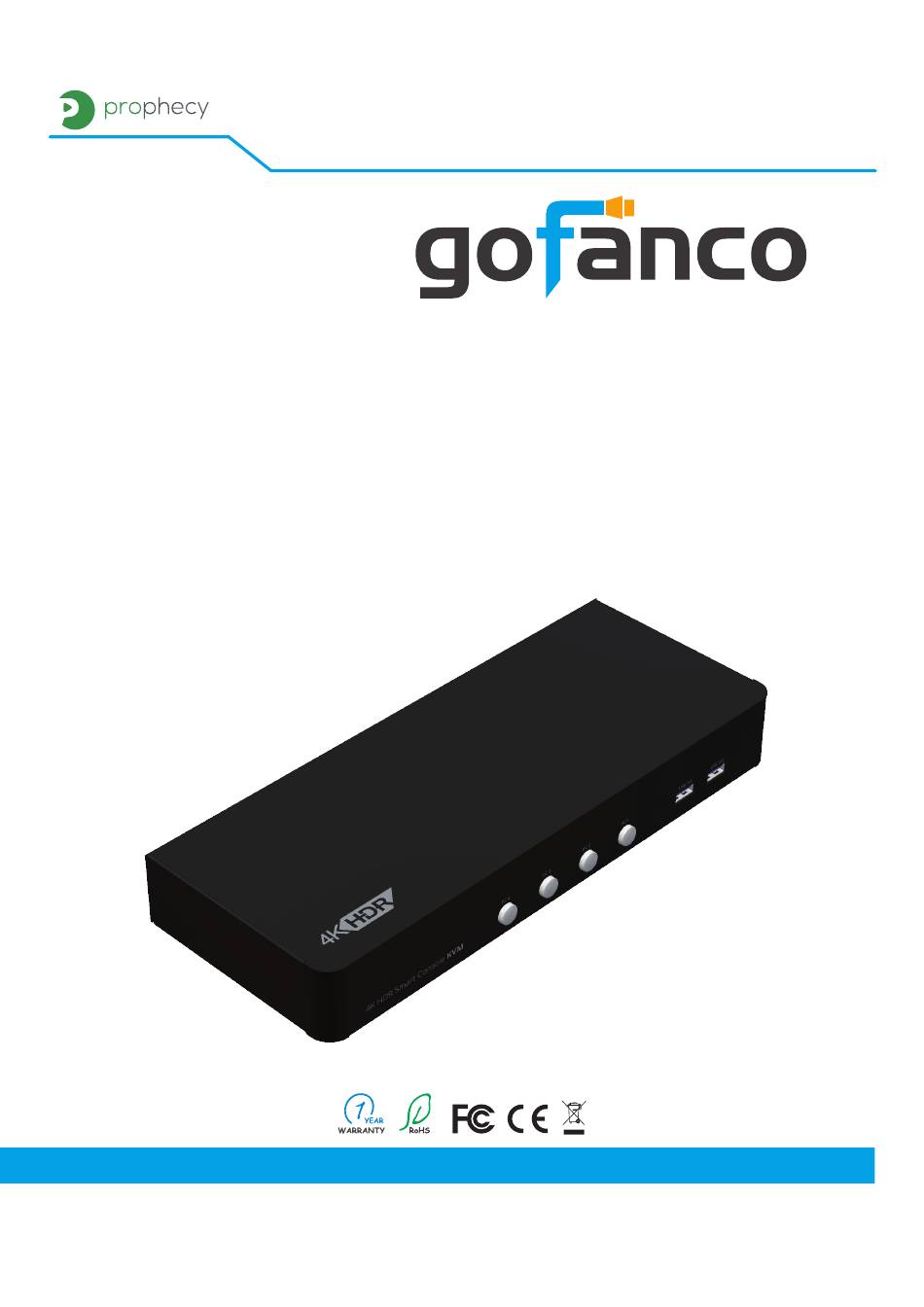

- Page 1 ® PRO-KVMaud4P 4-Port HDMI 2.0a/Audio KVM Switch with USB 3.0 HUB User‘s Guide Made in Taiwan...
- Page 2 ® PRO-KVMaud4P Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
-
Page 3: Table Of Contents
® PRO-KVMaud4P Table of Contents 1. Safety and Notice ..............3 2. -
Page 4: Introduction

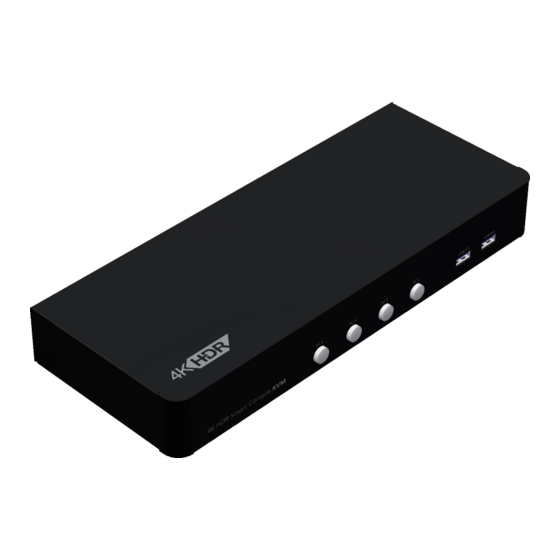

® PRO-KVMaud4P 2. Introduction The PRO-KVMaud4P 4-Port HDMI 2.0a/Audio KVM Switch with USB 3.0 HUB provi- des the most flexible and cost effective solution in the market for multiple computer management at home & office. The KVM switch can control 4 HDMI USB computers by one set of console peripherals (keyboard, mouse &... -
Page 5: Specification
® PRO-KVMaud4P 4. Specifications Item Description Technical HDMI compliance 4-Port HDMI KVM Switch HDCP compliance 3D & 4K2K@60Hz Video bandwidth Up to HDCP 2.2 Video support Single-link 594MHz [18Gbps] HDMI over fiber Up to HDR 4K2K@60(4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) Audio support Surround sound (up to 7.1ch) or stereo digital audio Equalization... -
Page 6: Connection Diagram
® PRO-KVMaud4P 6. Connection Diagram... -
Page 7: Panel Description
® PRO-KVMaud4P 7. Panel Description Front Panel 1. Port 1-2Selection Push Button: Switch between computers 2. USB 3.0 Hub: Connect to USB devices Rear Panel 10 11 12 13 14 3. Console USB Ports: Connect tokeyboard & mouse 4. KVM Video IN 1-4 (HDMI IN 1-4): Connect the HDMI cable to PC 5. -
Page 8: Hotkey
® PRO-KVMaud4P 8. Hotkey Default setting, all of the following commands begin by pressing the [Scroll Lock] key twice. Please follow the hotkey command listed below for selected operating functions: Hot key Definition [Scroll Lock] + [Scroll Lock] + [Ctrl] + [Enter] Change [Scroll Lock] [Scroll Lock] to [Ctrl] [Ctrl] [Ctrl] + [Ctrl] + [Scroll Lock] + [Enter] Change [Ctrl] [Ctrl] to [Scroll Lock] [Scroll Lock]... -
Page 9: Firmwave Update
® PRO-KVMaud4P 9. Firmwave update Firmware update is proceeded through Micro-USB KVM F/W update 1. Connect the Micro-USB to USB cable between PC and device 2. Set dip switch PIN#1 to ON[] and then power on device 3. Open firmware update software and then select COM Port 4. - Page 10 ® PRO-KVMaud4P MCU F/W update 1. Connect the Micro-USB to USB cable between PC and device 2. Set dip switch PIN#2 to ON[] and then power on device 3. Open firmware update software and then select COM Port 4. Click “MCU“ button to open “Firmware Update MCU” windows. 5.
-
Page 11: Warranty
® PRO-KVMaud4P 10. Limited Warranty The SELLER warrants the PRO-KVMaud4P 4-Port HDMI 2.0a/Audio KVM Switch with USB 3.0 HUB free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surge. - Page 12 ® Thank you for choosing gofanco www.gofanco.com Jun, 2019 Ver. A Copyright © by gofanco, LLC. All rights reserved.
