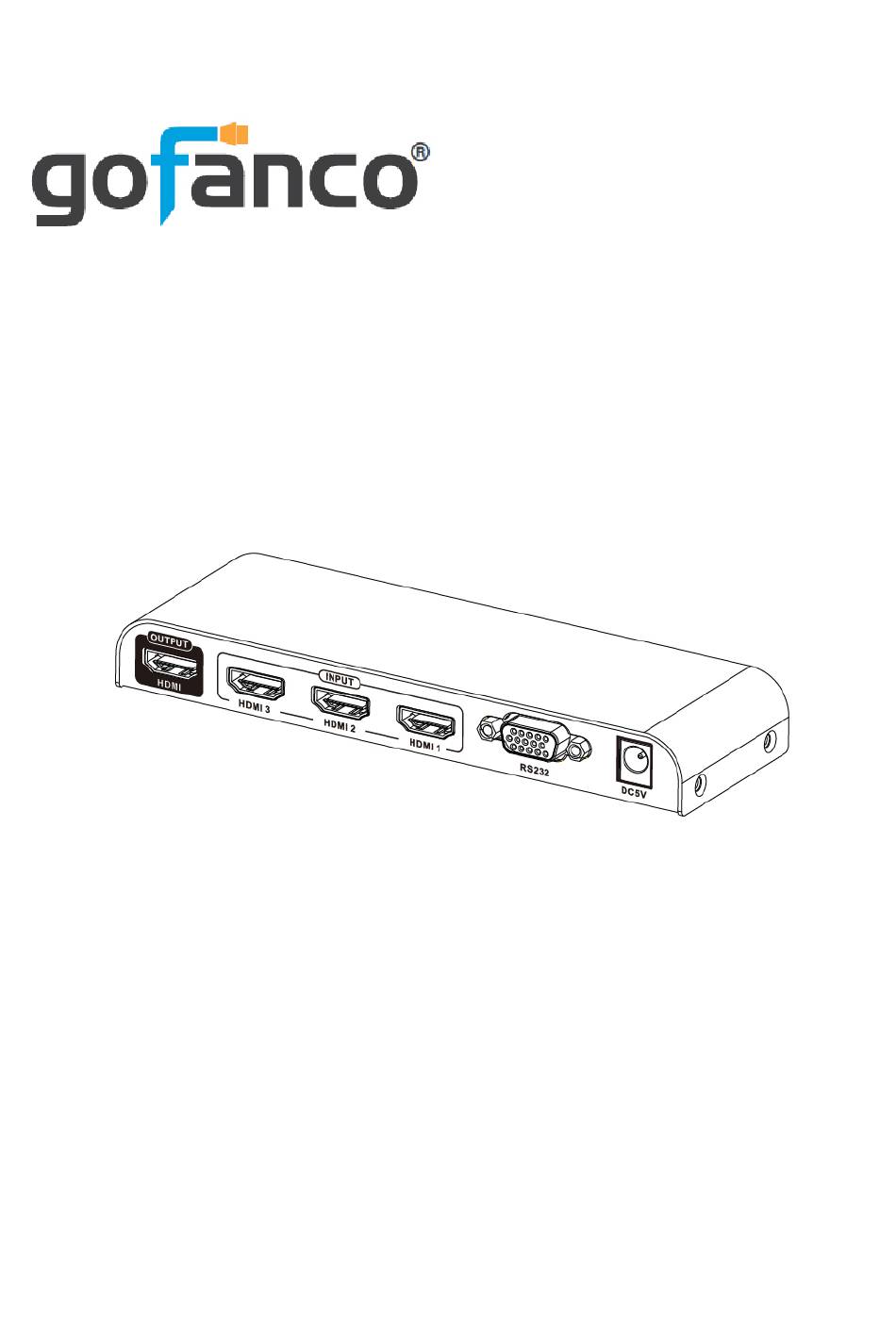

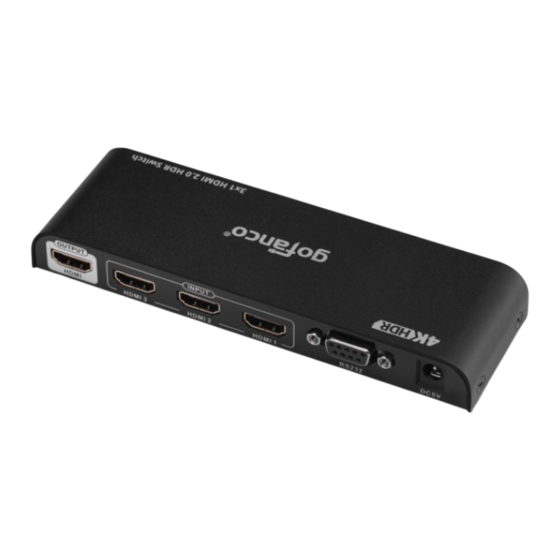

- Page 1 3x1 HDMI 2.0 HDR Switch User's Guide P/N: HDRswitch3P G4-0058A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 • Shut off power and make sure environment is safe before installation • Do not plug the HDMI cables in/out when the device is in use to avoid cable damage. Make sure they are plugged into the correct ports • Use the included DC5V power adapter only.
- Page 4 Package Contents • 3x1 HDMI 2.0 HDR Switch • Remote controller • Power adapter • User's guide Installation Requirements HDMI source device (computer, DVD player, XBOX, PS3, etc) HDMI display device (SDTV/Monitor, HDTV/Monitor, projector, etc.) HDMI cables...
- Page 5 Layout Power LED IR Window Device Selection Input LED Power Jack HDMI Output RS232 HDMI Input Figure 1: Layout Power LED Lights up when the switch is powered on Input LED Displays the selected HDMI source device Receives commands from the included IR Window remote controller Device Selection...
-
Page 6: Remote Controller
Remote Controller Powers On / Off 1. Power Button the Switch Selects the 2. Left and Right source device in numerical order Press the number button to select 3. Device Selection the source device as needed Figure 2: Remote Controller Hardware Installation Power off all devices including your HDMI source and HDMI display(s). -
Page 7: Connection Diagram
Connection Diagram HDMI Switch Computer Power Display Adapter Figure 3: Connection Diagram RS232 Device Control Use an RS232 terminal program such as PComm or Hyper Terminal. The examples shown are using PComm terminal program. Connect the switch to your computer using an RS232 cable (cable not included). - Page 8 Figure 4: RS232 Settings In the Terminal window, type in the desired command. See RS232 commands on the next page. Figure 5: Terminal Window...
- Page 9 Command Result PA1R Select HDMI Input 1 PA2R Select HDMI Input 2 PA3R Select HDMI Input 3 Power on the switch OFFR Power off the switch RS232 Commands FAQ & Solutions There is no video output or audio and video display is not normal. 1) Check the power adapter connection and make sure the Switch's Power LED is on.
-
Page 10: Specifications
Specifications Item Specification Input ports 3x, HDMI Type-A, 19-pin, Female Output ports 1x, HDMI Type-A, 19-pin, Female HDMI version HDMI 2.0 HDCP version HDCP 2.2 4Kx2K@30/60Hz HDR, 3D, 12-bit Input resolution Full HD 480i/480p/576i/576p/1080i/ Output resolution 1080p/4Kx2K@24/25/30/60 Hz Supported Direct Stream Digital (DSD) and Audio HD (HBR) audio Operating temperature... - Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
