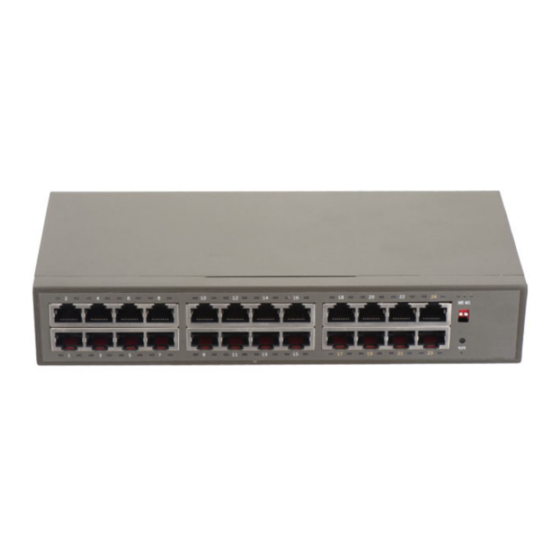

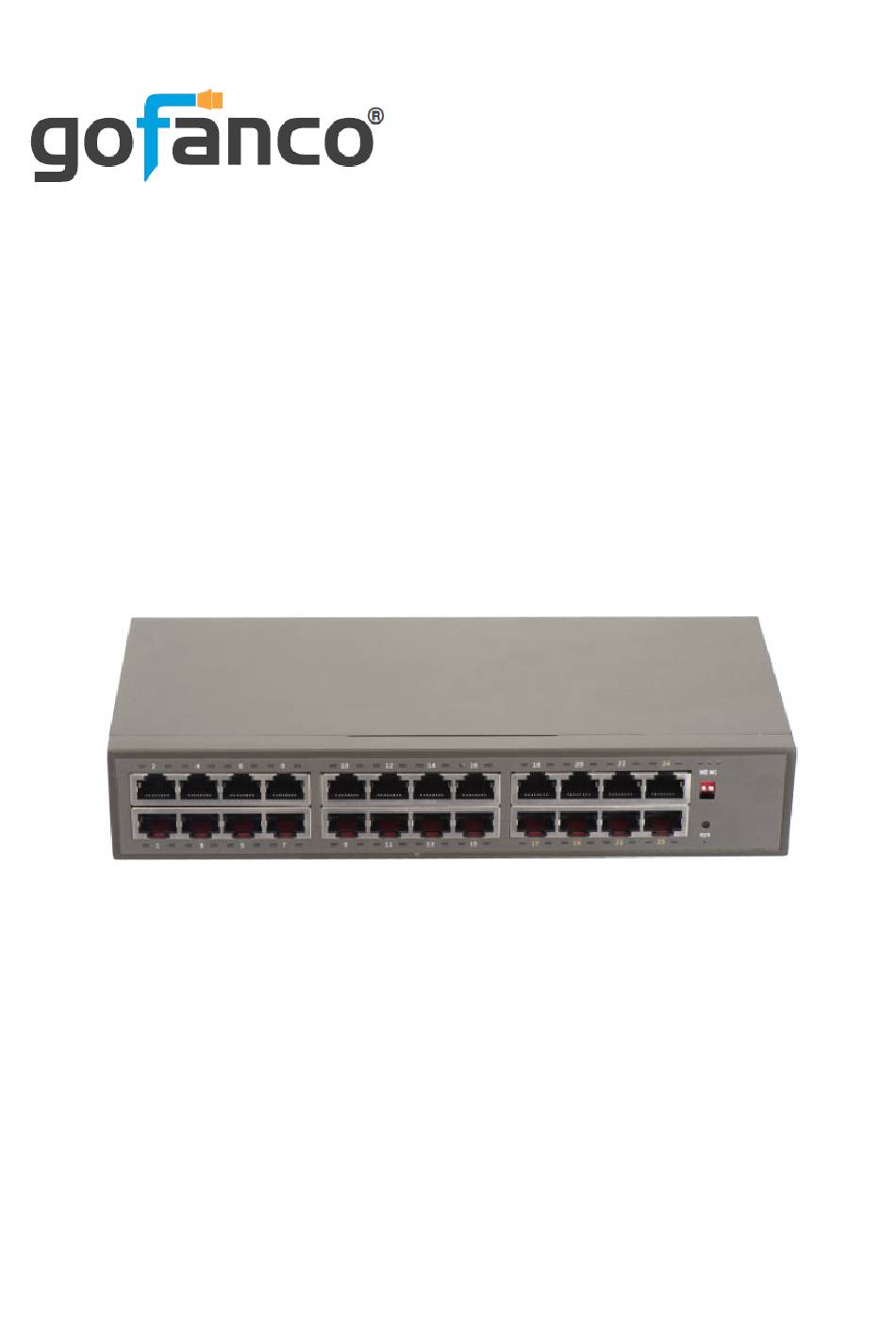

- Page 1 24-Port Smart Video Ethernet Switch User's Guide P/N:EthSwitch24P G4-0069A...
-
Page 2: Important Safety Notices
Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com. - Page 3 Introduction The 24-Port Smart Video Ethernet Switch dedicated to video switching is designed to work with select gofanco IP HDMI extenders. Features • Compatible with gofanco IP HDMI extenders, part# HDBitTExt, HDBitTPRO, and HDbitT4K • Works flawlessly with 1-to-1, 1-to-many, and many- to-many configurations •...
- Page 4 Product Layout Figure 1: Front Panel Layout Figure 2: Rear Panel Layout Connects to your network using RJ-45 Port (x24) CAT cables Speed LED (x24) Network speed On: CAT cable is connected and Link/Activity LED linked sucessfully to the network (x24) Blinking: Data transmission is detected...
-
Page 5: Hardware Installation
Hardware Installation Connect the power cord to the switch, then plug the other end into a reliable power outlet. The Speed/Link LED will illuminate for 3-4 seconds then go off and the System LED will be blinking. Connect the CAT cables, the Speed LED will be blinking and the Link/Action LED is On for normal operation. - Page 6 Application Diagram One-to- many connection Figure 3: One-to-many...
- Page 7 Many-to-many connection Figure 4: Many-to-many...
- Page 8 Web GUI Login The default IP address of the switch is 192.168.168.254. Username: admin, Password: admin. Connect your computer to the switch's Port 23 or Port 24 using a CAT cable. Only port 23 or port 24 can access the switch's web GUI. Change the computer's IP address to 192.168.168.x (x = 0-253) and subnet mask to 255.255.255.0.
- Page 9 Port Tools Port Setting Select Port Setting in the Ports Tool menu. Select either Input or Output depending on your hardware connection. When the port is set to Input, it should be connected to a transmitter unit. When the port is set to Output, it should be connected to a receiver unit.
- Page 10 Out Settings Select Out Settings in the Ports Tool menu. Select an Output port to display from an Input port. In the example below Ports 9, 10, 11, and 12 will display video signal from Input port 1. System Tools User Manage Use this to change the Switch's user name and password.
- Page 11 System Config Use this to change the Switch's IP address and name. Select System Config from the System Tools menu. Enter the IP address, Net Mask, and Gateway. Click Apply to save the changes. Enter the new name in the Device Name box, then click Apply to save the changes...
- Page 12 Upgrade Firmware Use this to update the Switch's firmware. Select Upgrade Firmware from the System Tools menu. Click Choose File, and enter firmware file. Click Click Upgrade. During the update process do not turn off the switch or interrupt the update process in any way. Reboot Switch Use this to reboot the Switch.
- Page 13 Restore Factory Use this to restore the factory default settings. Select Restore Factory from the System Tools menu. Click Apply and the Switch will restart automatically.
- Page 14 Blank Page...
- Page 15 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products.
- Page 16 Thank you for choosing gofanco www.gofanco.com...
