5-Port HDMI Switcher 4K - Black
P/N: Switcher5p
G4-0025A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Switcher5p and is the answer not in the manual?

Questions and answers

Summary of Contents for gofanco Switcher5p

  • Page 1 ® 5-Port HDMI Switcher 4K - Black P/N: Switcher5p G4-0025A...
  • Page 2 Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
  • Page 3 Introduction gofanco 5-Port HDMI Switcher 4K - Black (part# Switcher5P) allows any of the 5 HDMI sources to be displayed on one HDMI display and supports ultra-high resolution up to 4K. Specifications Spec. HDMI v1.4 Compliance HDCP 1.4, 36-bit deep Color, 3D Video Bandwidth 10.2Gbps...

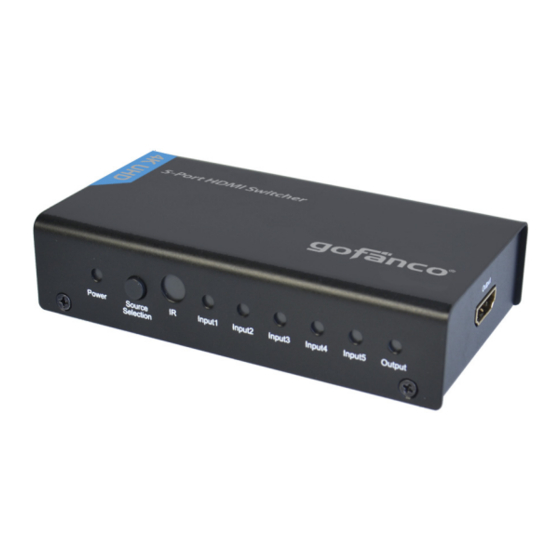

  • Page 4 Layout HDMI output Power LED Source Selection Output LED IR Receiver Input LEDs Figure 1: 5-Port HDMI Switcher 4K - Black • Power LED: On when the unit is powered • Source Selection: Press to select the input source (Input 1, 2, 3, 4 or 5) •...
  • Page 5 IR Remote Control Previous Next Input Select Button Figure 3: IR Remote Control • Previous: Select the previous input source • Next: Select the next input source • Input Select Button (1-5): Select input source 1, 2, 3 ,4 or 5...
  • Page 6 Hardware Installation 1. Power off all source devices and displays. 2. Connect up to 5 HDMI source devices to the switcher's HDMI input ports using HDMI cables (cables not included). 3. Connect your HDMI display to the switcher's HDMI Output with an HDMl cable (cable not included). 4.
  • Page 7 Blank page...
  • Page 8 ® Thank you for choosing gofanco www.gofanco.com...
