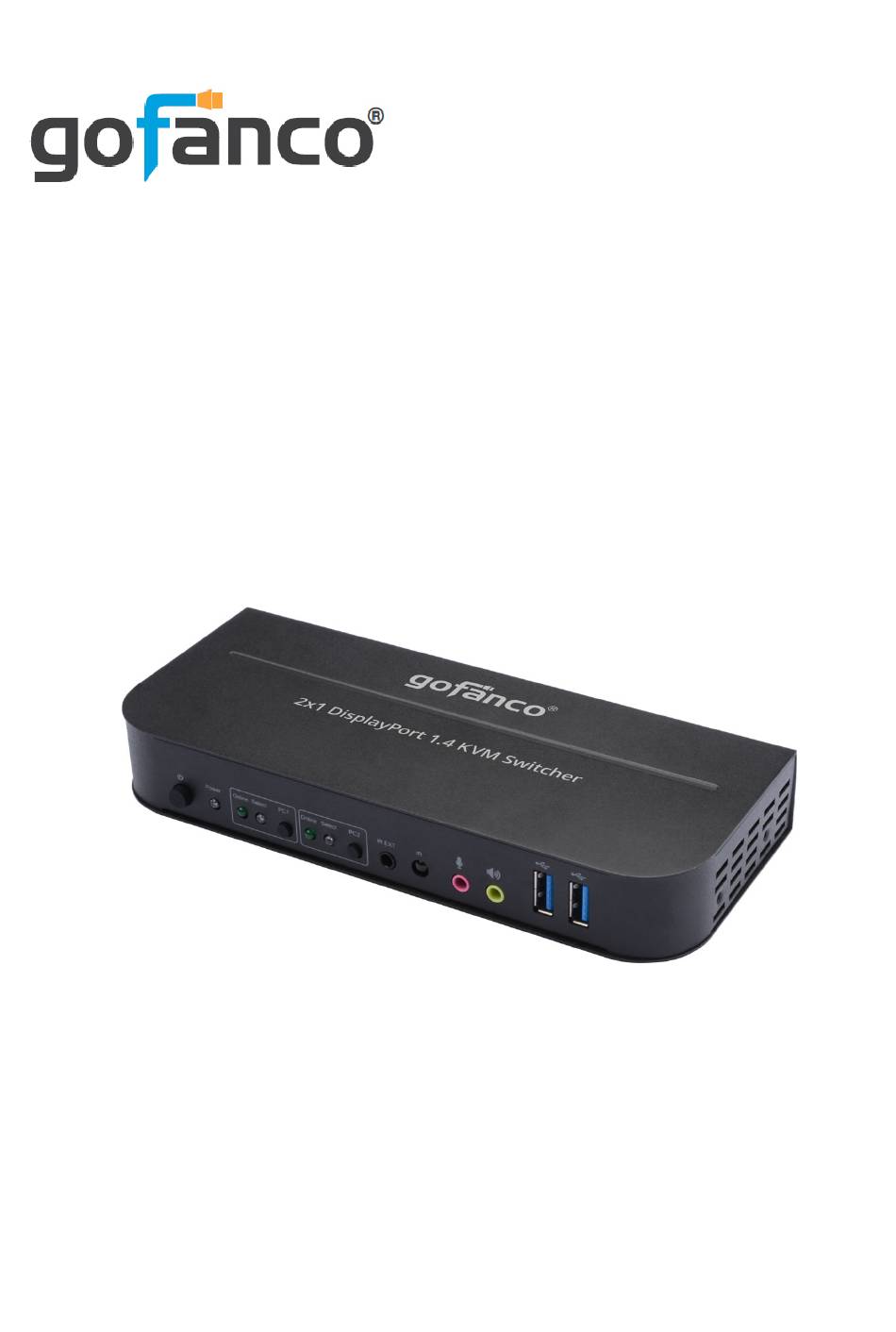

- Page 1 2-Port DP 1.4 KVM with USB 3.0 User's Guide P/N:KVMDP-2P G4-0128A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 Introduction The 2-Port DP 1.4 KVM with USB 3.0 allows you to control two 4K computers using one set of keyboard, mouse, microphone, speaker, and display. Features • 2-Port KVM Switch with the latest DisplayPort 1.4 (Video), USB Keyboard/Mouse, with Stereo Out and Mic In.

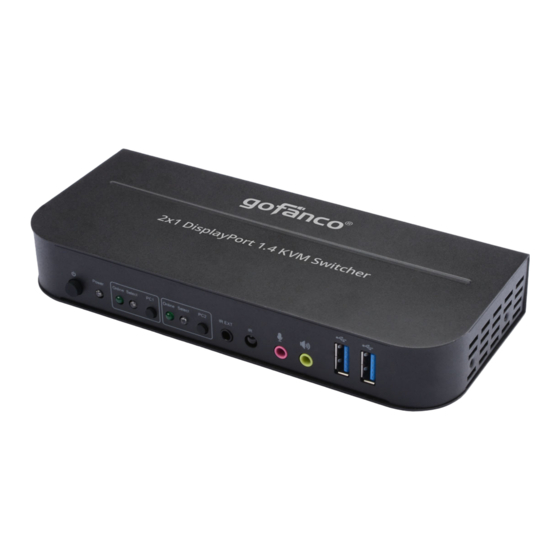

- Page 4 Product Layout Figure 1: Front Panel Layout Power Button: Press to turn the KVM on and off Power LED: Lights up when KVM is powered on Input Selection: PC1 & PC2: Source device selection button Select LED (PC1 & PC2): On - the corresponding PC is selected;...
- Page 5 Figure 2: Rear Panel Layout Output Ports: USB port: Connect to keyboard or mouse USB port: Connect to keyboard or mouse Audio jack: Connect to speakers or headphones Microphone jack: Connect to your Microphone HDMI Out: Connect to an HDMI display DisplayPort Out: Connect to a DisplayPort display Note: Only one display can be used at a time 10.
- Page 6 Hardware Installation Front Panel Connection Connect your microphone and speaker/ headphone to the corresponding jacks of the KVM (optional). Connect your USB device(s) to the USB ports (optional). Connect the included IR Receiver cable to the IR Ext port. This connection is optional and needed only if the embedded IR receiver window is blocked from receiving IR signals.
- Page 7 Connection Diagram The application diagram shows the most typical input and output devices used with the KVM.
- Page 8 Operating Instructions PC Switching There are three ways to switch between the computers, manual push button, keyboard hotkey, and IR remote control. Manual Push Button Press the front panel switch button to switch between the connected computers. Keyboard Hotkey Works with PC keyboard connected to USB-A ports on the back panel.
- Page 9 Remote Control Press button 1 or 2 to select between the connected PCs. Press the back or forward button to switch PCs in sequence order: PC1 > PC2. Special Functions Mouse Place the mouse cursor on the far right of the display then move the cursor to the right for 2 seconds, the KVM switches to the next PC.
- Page 10 Specifications...
- Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products.
- Page 12 Thank you for choosing gofanco www.gofanco.com...
