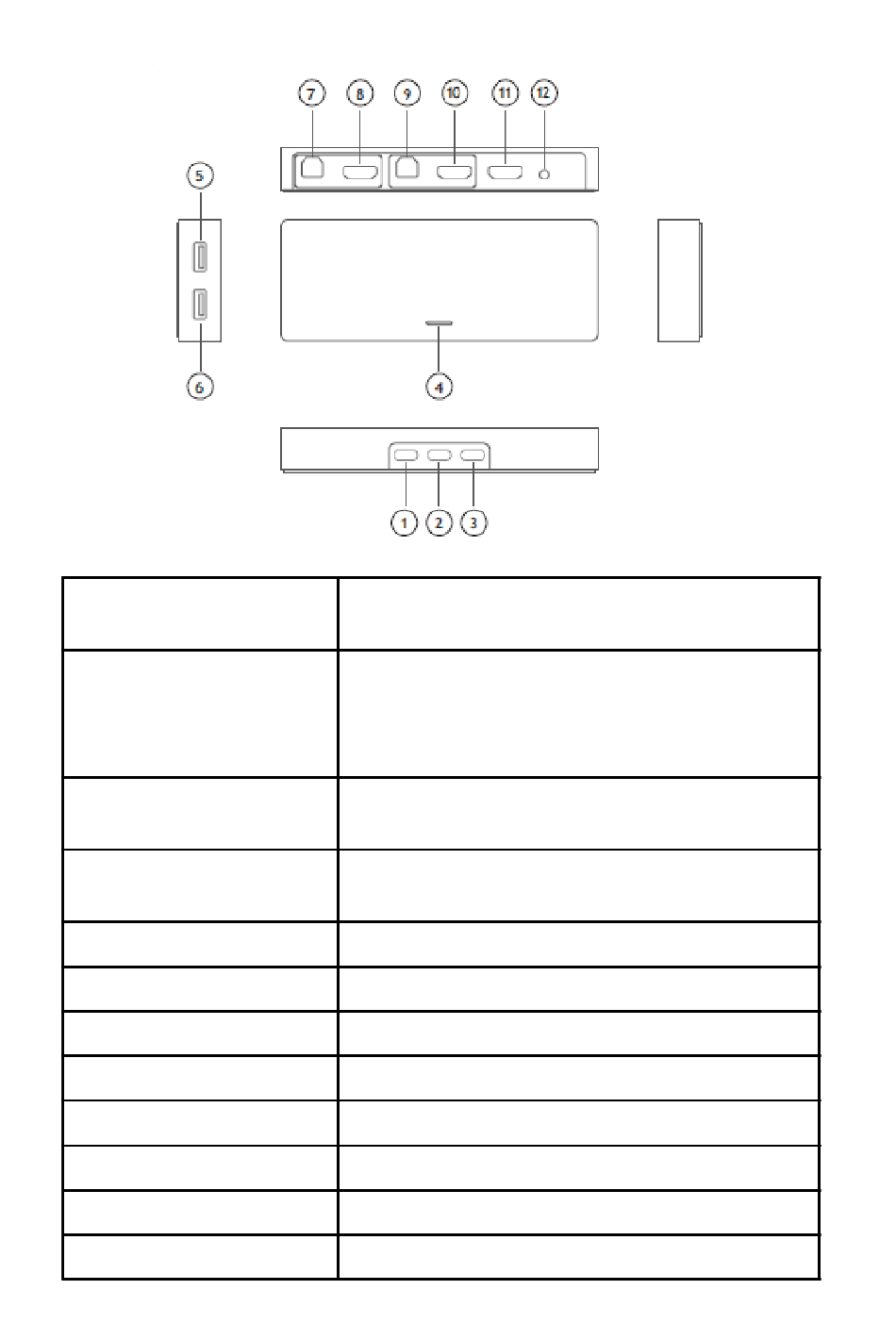

Product Layout

1. Audio Button
2. Mode Button
3. Video Button
4. HDMI Signal LED
5. Mouse
6. Keyboard
7. PC2 USB
8. PC2 HDMI In
9. PC1 USB
10. PC1 HDMI In
11. HDMI Out
12. Power Jack
Switches the audio signal between PC1 and
PC2
Switches within the 4 video modes: Full
screen, Picture-in-Picture (PiP) split screen,
left and right split screen, top and bottom
split screen
Switches the active screen between PC1
and PC2
Blue light: PC1 HDMI signal detected
Red light: PC2 HDMI signal detected
Connects to a USB mouse
Connects to a USB keyboard
Connects to a USB port of PC2
Connects to HDMI output of PC2
Connects to a USB port of PC1
Connects to HDMI output of PC1
Connects to your HDMI display
Connects to the included power adapter
