Matrix Device Control
Remote Control

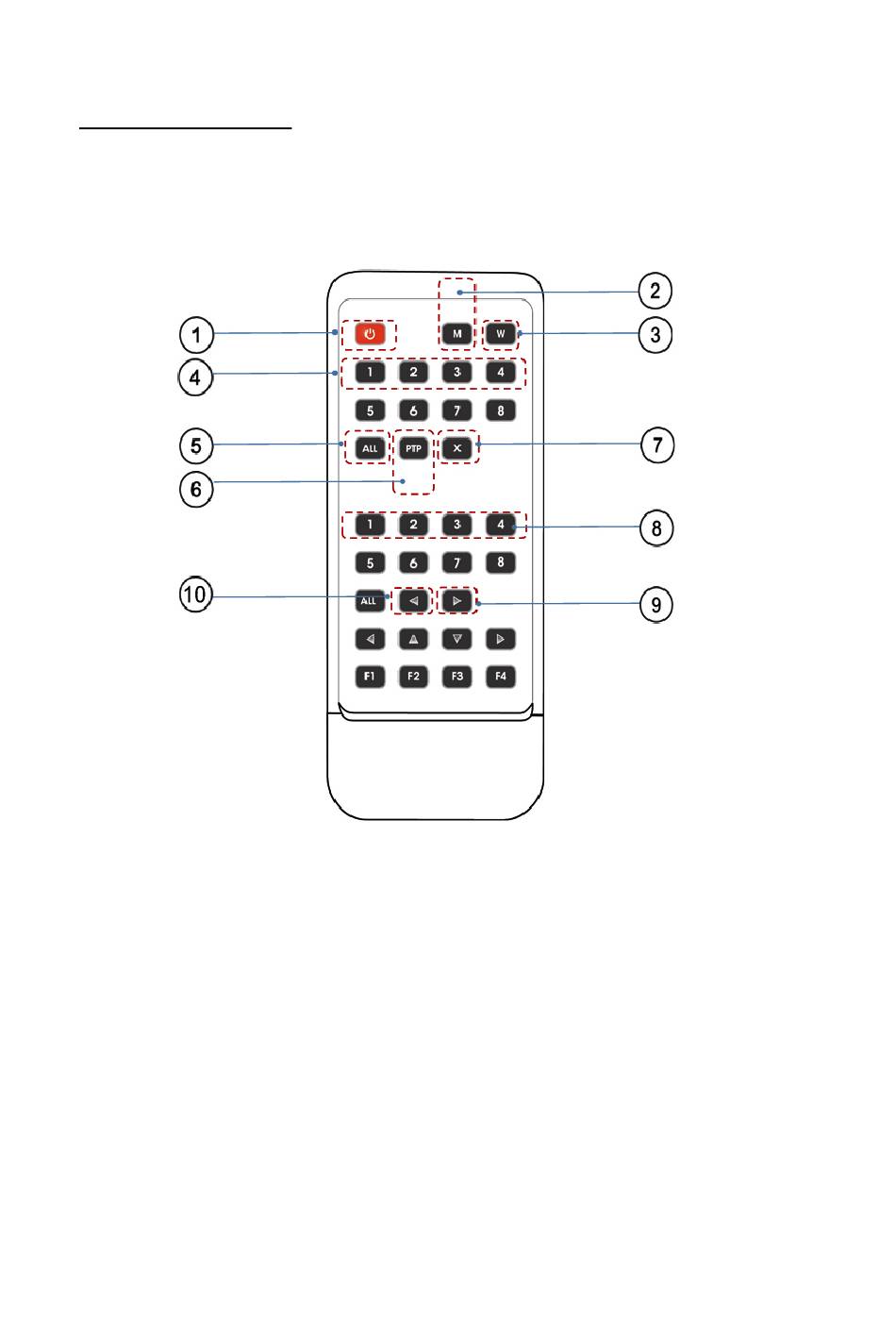

Users can control the 4x4 HDMI 2.0 Matrix LT using the
included IR remote. Point the remote control towards the
Matrix's IR In window located on the front panel.
1.
Standby: Press to place the Matrix into standby
mode. Press again to wake up the Matrix
2.
Mute: Turns audio On/Off. Choose the output
first, then press M. Example: To mute output 1 -
press Output 1 button (see #4), then press M
3.
Lock: Press to lock the remote control
4.
Output 1/2/3/4: Selects an input source to display
on an output port. Example: To select Input 1
source to display on Output 1 port - Press Output
1 button, then press Input 1 button (see #8)
7
