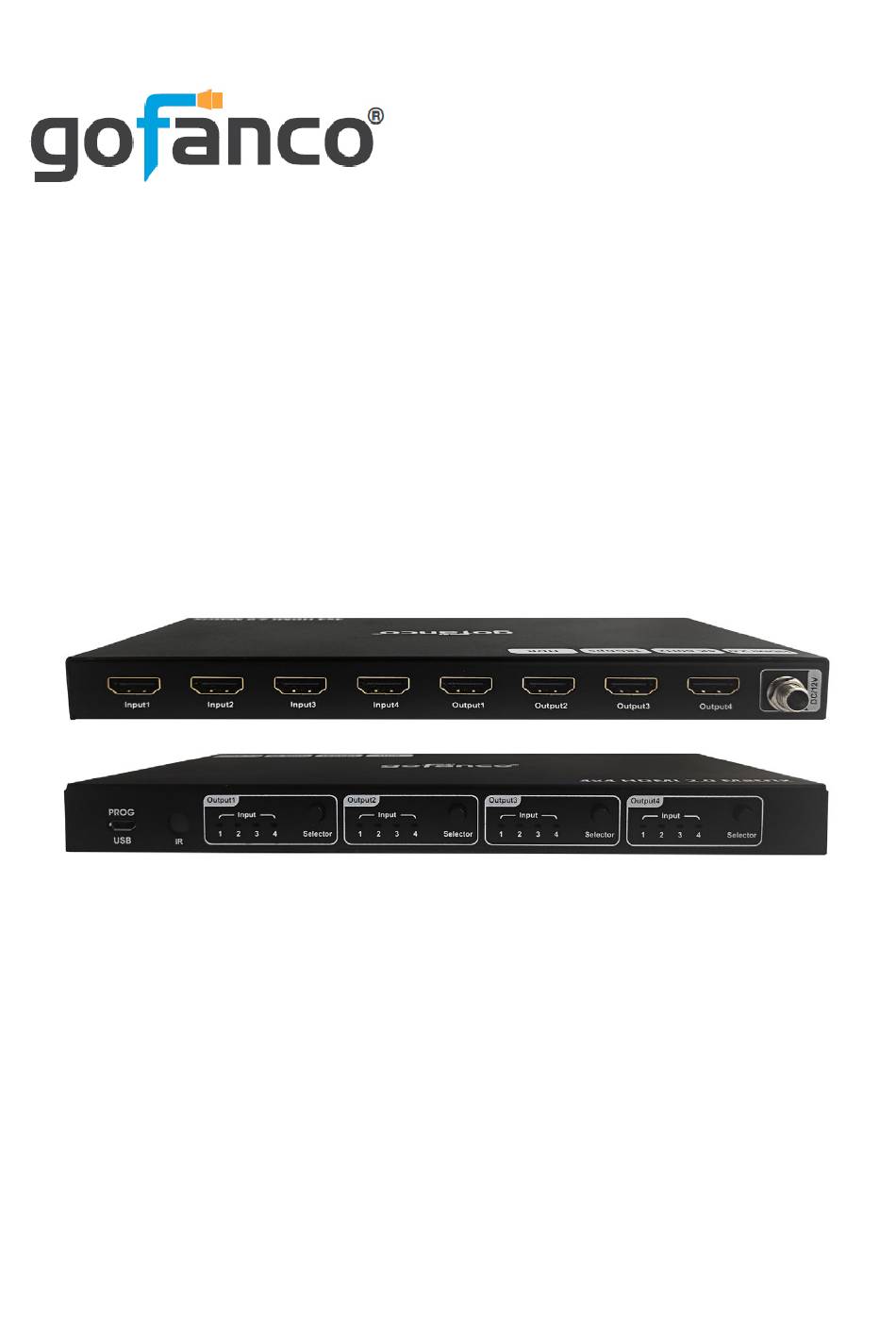

- Page 1 4x4 HDMI 2.0 Matrix LT User's Guide P/N:Matrix44HD2-LT G4-0115A...
-
Page 2: Important Safety Notices
Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com. -
Page 3: Installation Requirements
Introduction The 4x4 HDMI 2.0 Matrix LT allows you to connect up to four HDMI source devices and independently switch any source to any of the four HDMI displays. Features • Supports up to 4K@60Hz YUV 4:4:4 8-bit, HDR (at 4K@60Hz YUV 4:2:0 10-bit), HDMI 2.0, HDCP 2.2/ 1.4, 18Gbps •... -
Page 4: Product Layout

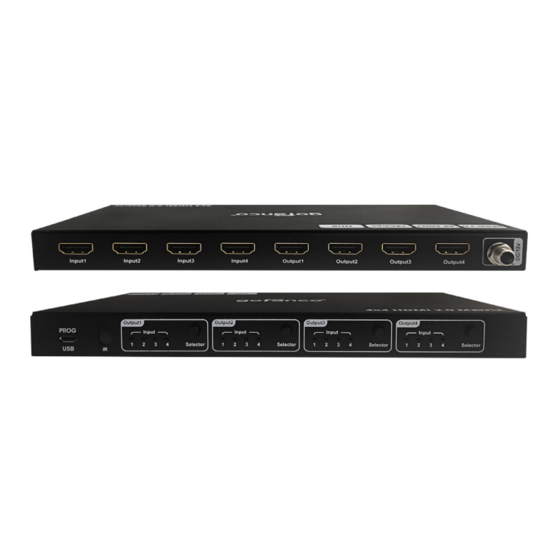

Product Layout Figure 1: Front Panel Layout Micro USB Port: For firmware update IR In: Receives IR signals from the included remote control Input LED: HDMI Input indicator for HDMI Out 1/ 2/3/4 or EDID indicator for HDMI In 1/2/3/4 HDMI Out 1 Select Button: Press to select the HDMI input device to display on HDMI Out 1 HDMI Out 2 Select Button: Press to select the... -
Page 5: Hardware Installation
Figure 2: Rear Panel Layout HDMI In (1-4): Connect to your HDMI sources HDMI Out (1-4): Connect to your HDMI displays Power Jack: Connects to the included power adapter Hardware Installation Power off all devices including your HDMI source(s) and HDMI display(s). Connect your HDMI source devices to the Matrix's HDMI In connectors with HDMI cables (HDMI cables not included). -
Page 6: Application Diagram
Application Diagram The application diagram shows the most typical input and output devices used with the 4x4 HDMI 2.0 Matrix LT. Figure 3: Application Diagram... - Page 7 Matrix Device Control Remote Control Users can control the 4x4 HDMI 2.0 Matrix LT using the included IR remote. Point the remote control towards the Matrix's IR In window located on the front panel. Standby: Press to place the Matrix into standby mode.
- Page 8 All: Selects one input device to display on all outputs. Example: Press All button, then press Input 1/2/3/ 4 (see # 8) PTP (Port to Port): Press to assign all inputs and outputs to their numerical counterparts. Examples: Input 1 to Output 1, Input 2 to Output 2, Input 3 to Output 3, Input 4 to Output 4 X: Turn off output port.
- Page 9 EDID Management Allows you to choose the EDID for each input. Supports built-in and EDID copy modes. There are 8 EDID groups. EDID Table EDID Configuration Mode Setup The Matrix's default EDID is 4K@60Hz YUV 4:4:4 8-bit 2- ch (0,0,0,1). Do Not make any changes if the default EDID works properly.
-
Page 10: Specifications
Long press the HDMI Out 1 Select button for about 1 second or wait 10 seconds to save your changes and exit EDID mode. Repeat steps 1-3 for each HDMI input if necessary. Specifications HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2/1.4 480p@60Hz, 576p@50Hz, 720p@60Hz, Resolution... - Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products.
- Page 12 Thank you for choosing gofanco www.gofanco.com...
