Accelnet & Stepnet Plus Panels User Guide
BE2, BP2, TE2, TP2 I
C C
ABLE ONNECTOR
Description
Connector, High-density Dsub DA-26F, 26 position, female,
solder-cup, with #4-40 locking screws
Backshell, Dsub, RoHS, metallize
P D
IN ESCRIPTIONS
Pin Signal
1 Frame Ground
2 [IN5] GPI
3 [IN6] GPI
4 [IN7] GPI
5 [IN8] GPI
6 COM1 [IN5~8]
7 [IN14] GPI
8 [IN15] GPI
9 [IN16] GPI

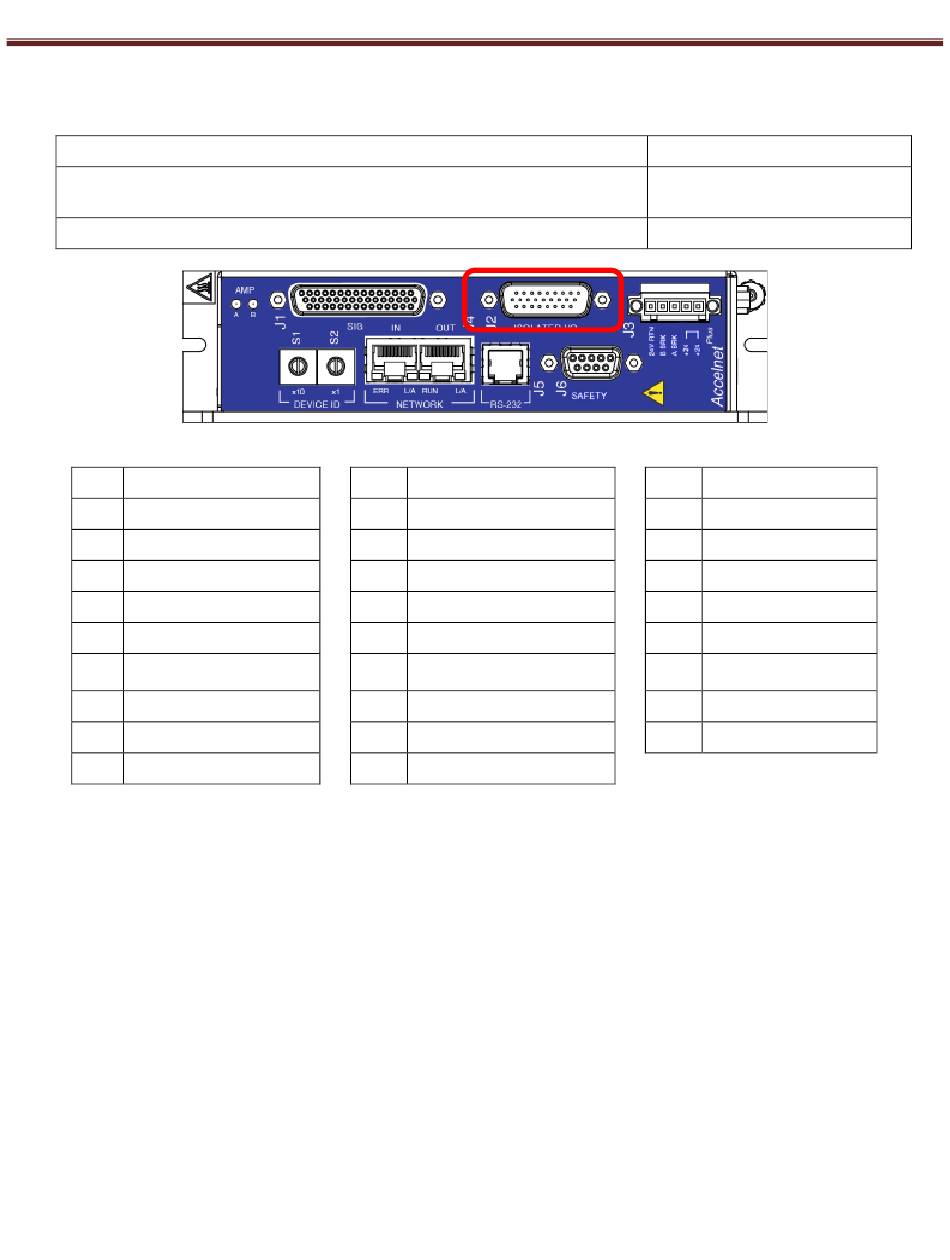

I/O C
SOLATED ONNECTOR
Pin Signal
10 [OUT1-] GPI
11 [OUT2-] GPI
12 [OUT3-] GPI
13 [OUT4-] GPI
14 [OUT5-] GPI
15 N/C
16 N/C
17 COM2 [IN14~17]
18 [IN17] GPI
16-01339 Rev 07
Manufacturer PN
Norcomp: 180-026-203L001
Norcomp: 979-015-020R121
Pin Signal
19 [OUT1+] GPI
20 [OUT2+] GPI
21 [OUT3+] GPI
22 [OUT4+] GPI
23 [OUT5+] GPI
24 N/C
25 N/C
26 N/C
