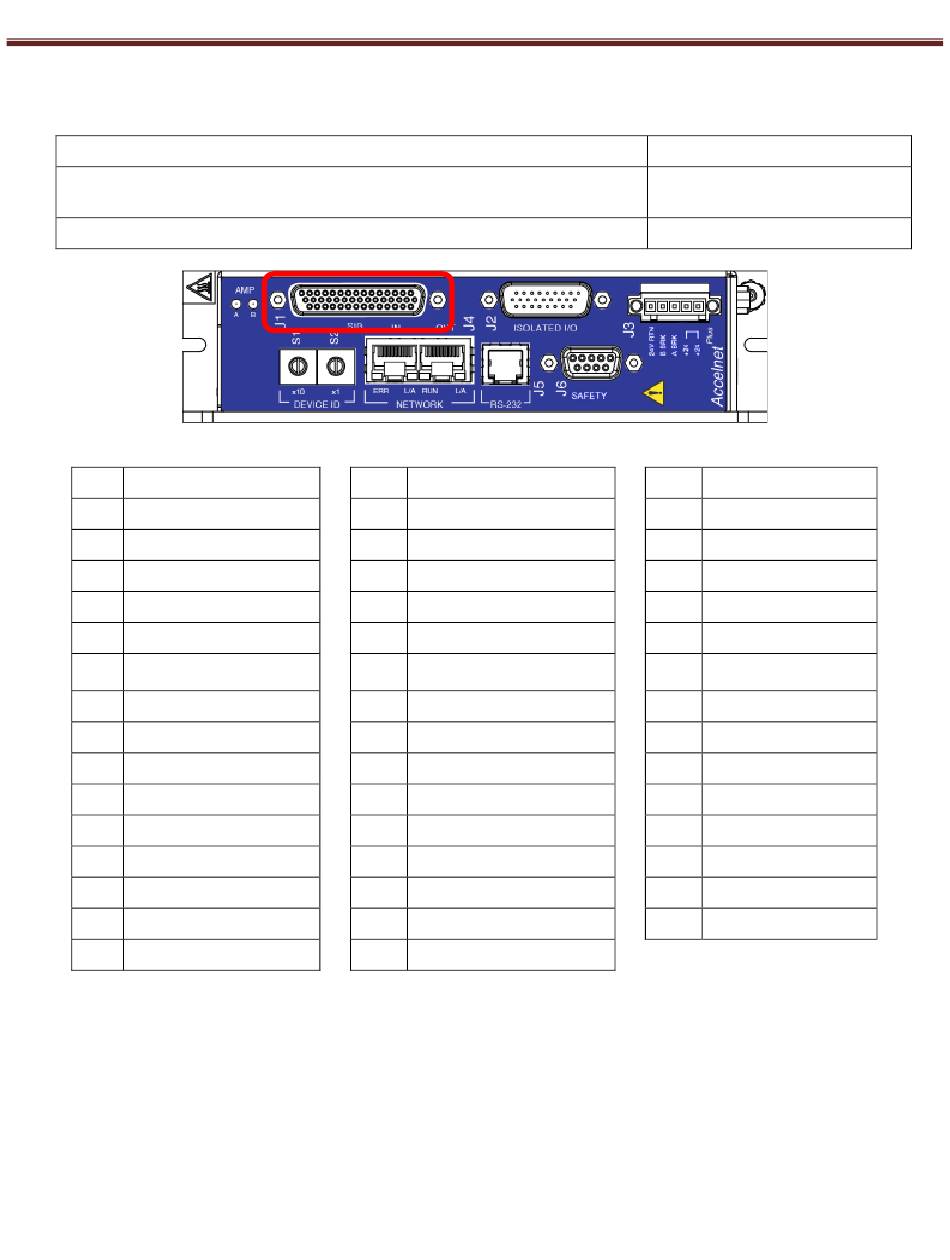

Copley Controls Accelnet Plus BEL Series User Manual page 87

Accelnet & Stepnet Plus Panels User Guide
BE2, BP2, TE2, TP2 S
C C
ABLE ONNECTOR
Description
Connector, High-density Dsub DB-44M, 44 position, male,
solder-cup, with #4-40 locking screws
Backshell, Dsub, RoHS, metallize
P D
IN ESCRIPTIONS
Pin Signal
1 Frame Ground
2 Ain1(-)
3 Ain1(+)
4 Ain2(-)
5 Ain2(+)
6 Signal Gnd
7 [IN1]
8 [IN2]
9 [IN3] Diff1(+)
10 [IN4] Diff1(-)
11 N/C
12 [IN10]
13 [IN11]
14 [IN12] Diff2(+)
15 [IN13] Diff2(-)
C
IGNAL ONNECTOR
Pin Signal
16 Signal Gnd
17 A +5Vdc Out1
18 A-MultiEnc /S
19 A-MultiEnc /X
20 A-MultiEnc /B
21 A-MultiEnc /A
22 Signal Gnd
23 B +5Vdc Out2
24 B-MultiEnc /S
25 B-MultiEnc /X
26 B-MultiEnc /B
27 B-MultiEnc /A
28 N/C
29 N/C
30 N/C
16-01339 Rev 07
Manufacturer PN
Norcomp: 180-044-103L001
Norcomp: 979-025-020R121
Pin Signal
31 Signal Gnd
32 A +5Vdc Out1
33 A-MultiEnc S
34 A-MultiEnc X
35 A-MultiEnc B
36 A-MultiEnc A
37 Signal Gnd
38 B +5Vdc Out2
39 B-MultiEnc S
40 B-MultiEnc X
41 B-MultiEnc B
42 B-MultiEnc A
43 N/C
44 Signal Gnd
