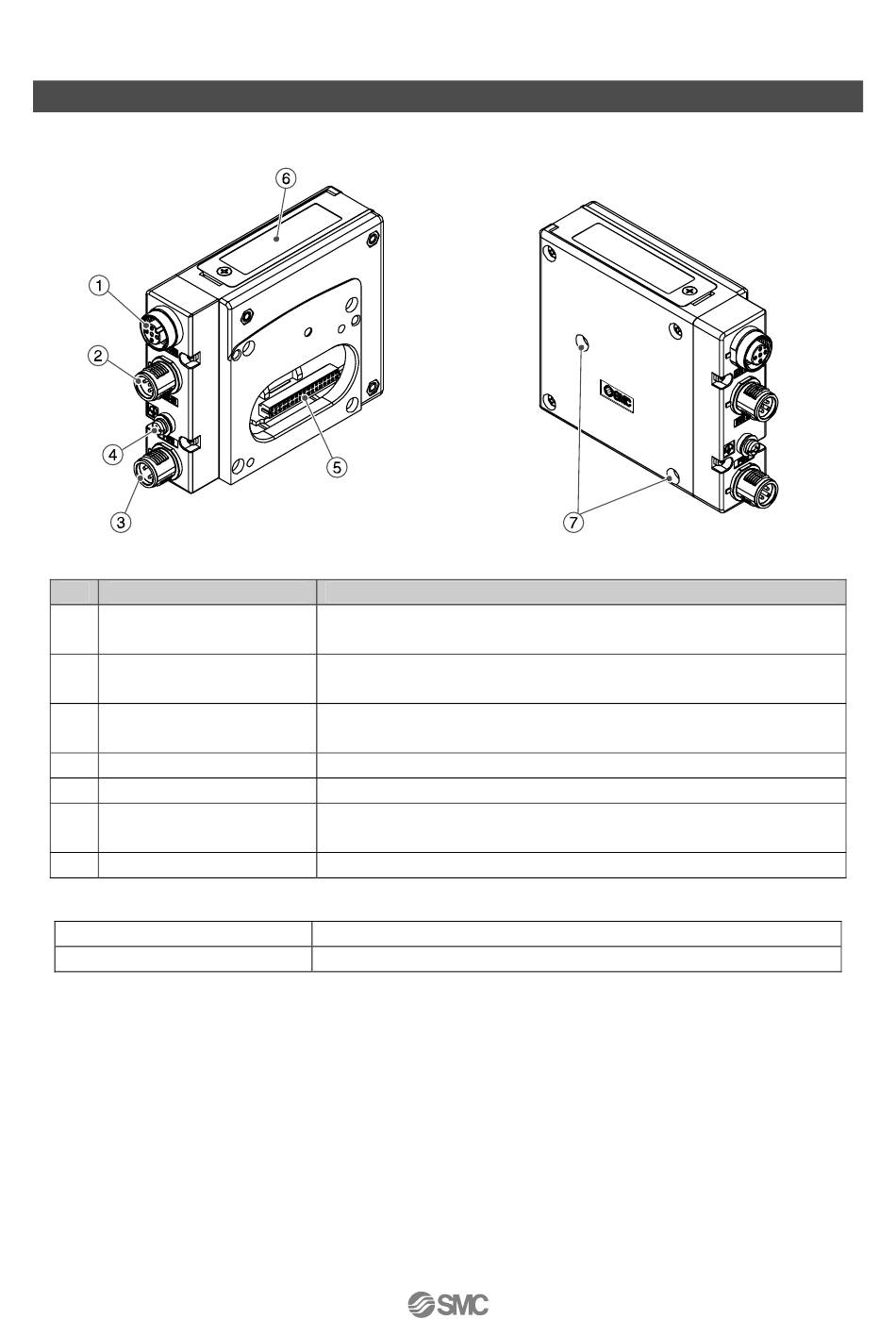

Summary of Product element
EX260-SDN1/-SDN2/-SDN3/-SDN4
<
No. Element
Fieldbus interface connector
1
(BUS OUT)
Fieldbus interface connector
2
(BUS IN)
3 Power supply connector
4 Ground terminal
5 Output connector
LED and switch
6
Mounting hole
7
Accessories
Hexagon socket head cap screw
Seal cap
*1: Refer to page.10 for Connecting cables.
*2: Refer to page 14-18 for the LED indication and settings.
>
TM
DeviceNet connection (M12 5-pole socket, A-coded) *
TM
DeviceNet connection (M12 5-pole plug A-coded) *
Power supply with load voltage for valves
(M12 4-pole plug, A-coded) *
Functional earth (M3 screw)
Output signal interface for valve manifold
Bus status−specific and SI unit−specific LEDs *
Switches for setting of node address and operating mode *
Mounting hole for connection to the valve manifold
2pcs. M3x30 screw for connection to the valve manifold
1pc. seal cap for unused fieldbus interface connector (BUS OUT)
‑8‑
Description
1
1
2
1
2
