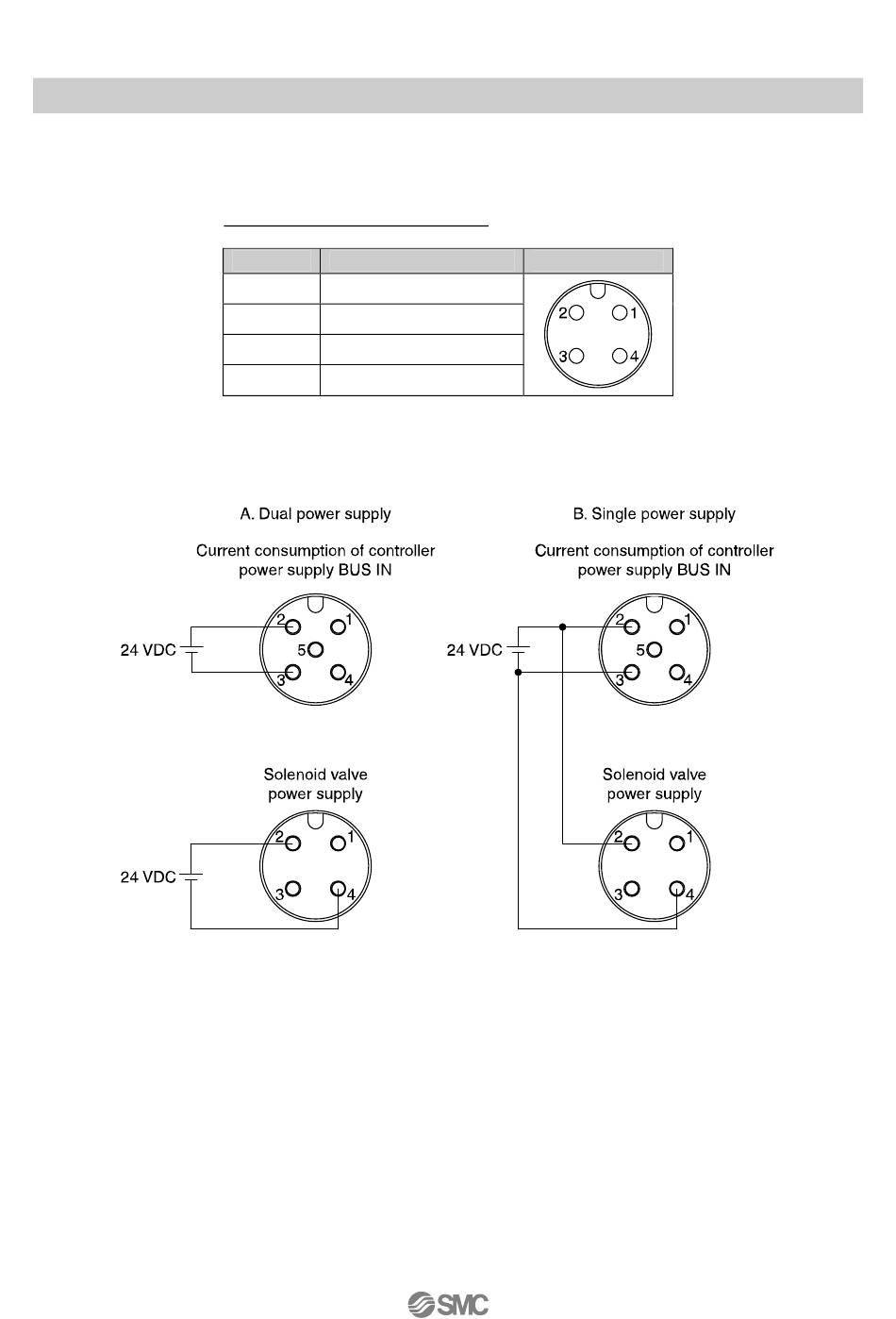

Power supply connector layout
The power supply connector for the solenoid valve voltage is as follows.
Power-supply line for solenoid valve and power-supply line for SI unit operation are isolated.
Be sure to supply power, respectively.
Either single-source power or two different power can be used.
Note) Pay attention not to exceed the tolerance range of power supply voltage.
PWR: M12 4-pole plug A-coded
No. Designation
1
2 +24 V for solenoid valve
3
4 0 V for solenoid valve
Contact layout
-
-
