SMC Networks DeviceNet EX260 Series Operation Manual page 19

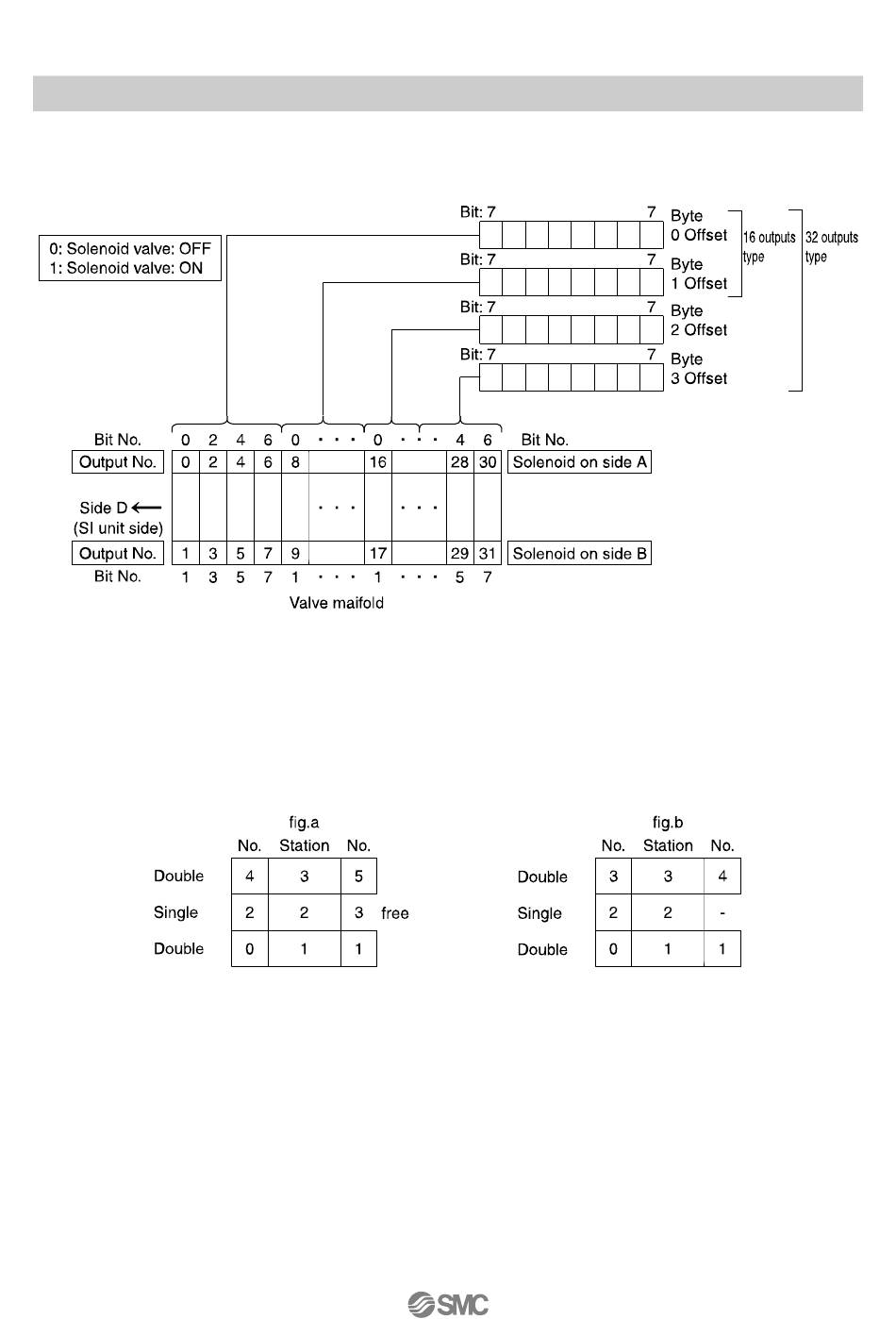

Output number assignment
*: Output number starts at zero and refers to the solenoid position on the manifold.
*: Standard wiring on the manifold is for double-solenoid valves and output number starts A side and B side in that order as shown in
the figure a.
If you mount a single-solenoid valve on the standard wiring manifold, output number for B side valve is skipped.
*: Custom wiring for mixed mounting single-solenoid valves and double-solenoid-valves can be specified with a Wiring Specification
Sheet. Example wiring is shown in the figure b.
*: Bit status "0" and "1" on a data corresponds solenoid valve status ON and OFF （0: OFF, 1: ON） , and output number starts at zero
from LSB (least significant bit).
Output data
‑18‑
EX##‑OMN0013
