7.3.2.2 Booting OS from module eMMC flash
eMMC Boot Mode
BOOT_SEL0#
BOOT_SEL1#
BOOT_SEL2#
Dip Switches on SM2-MB-EP1
LOW
HIGH
HIGH
Table 28: eMMC Boot Mode
In this configuration the Linux kernel image (Image) and the device tree blob are loaded from the first partition on the module eMMC flash. The second
partition contains the Linux file system (FS, ext4).
Example:

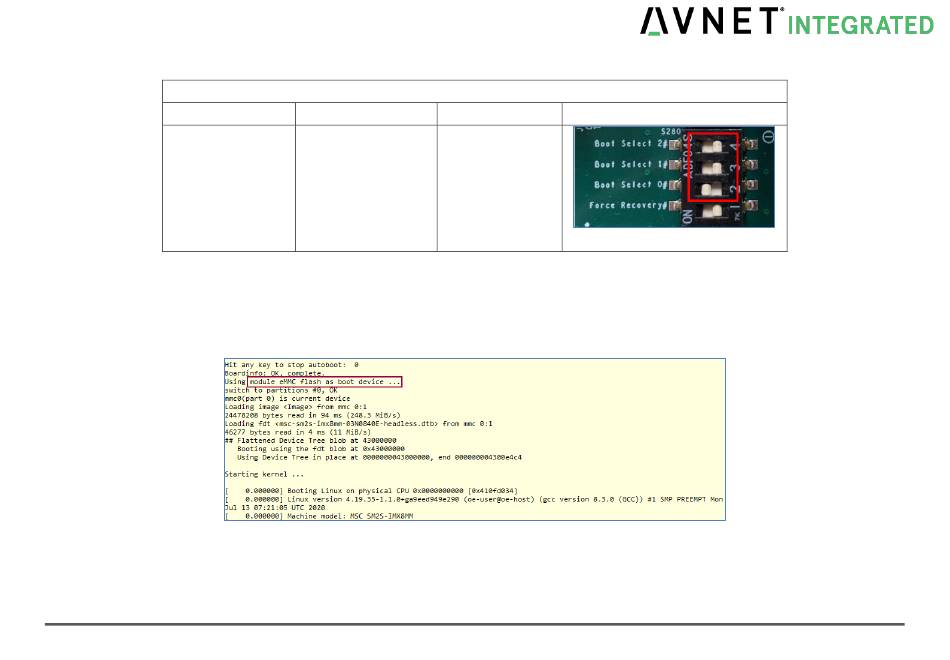

Figure 7-21. Booting OS (linux) from on-module eMMC flash.
