5.2.1 Power-On Sequencing
MSC SM2S-IMX8MINI
User Manual
Figure 5-1: Start-up Sequence
VIN_PWR_BAD# (Carrier to Module)
CARRIER_PWR_ON (Module to Carrier)
CARRIER_STBY# (Module to Carrier)
RESET_OUT# (Module to Carrier)

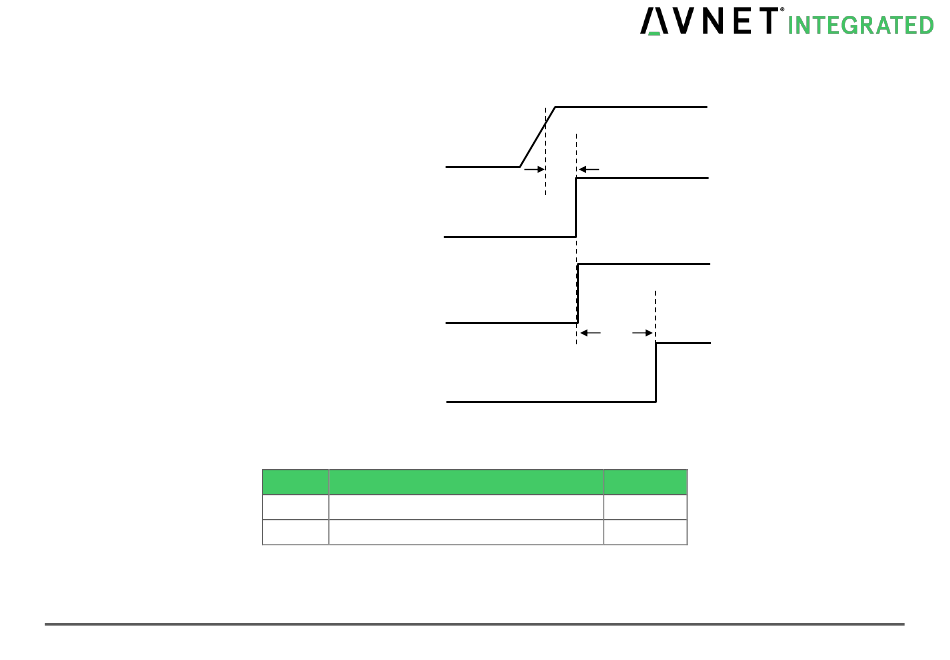

Figure 5-2: Power-On Timings
Time Slot
Description
T1
CARRIER_PWR_ON to VIN_PWR_BAD# timing
T2
RESET_OUT# to CARRIER_PWR_ON
T1
T2
Value
10.8ms
355ms
48 / 87
