BA00194C/07/EN/14.13
71212636
valid as of:
software version 2.70
Products

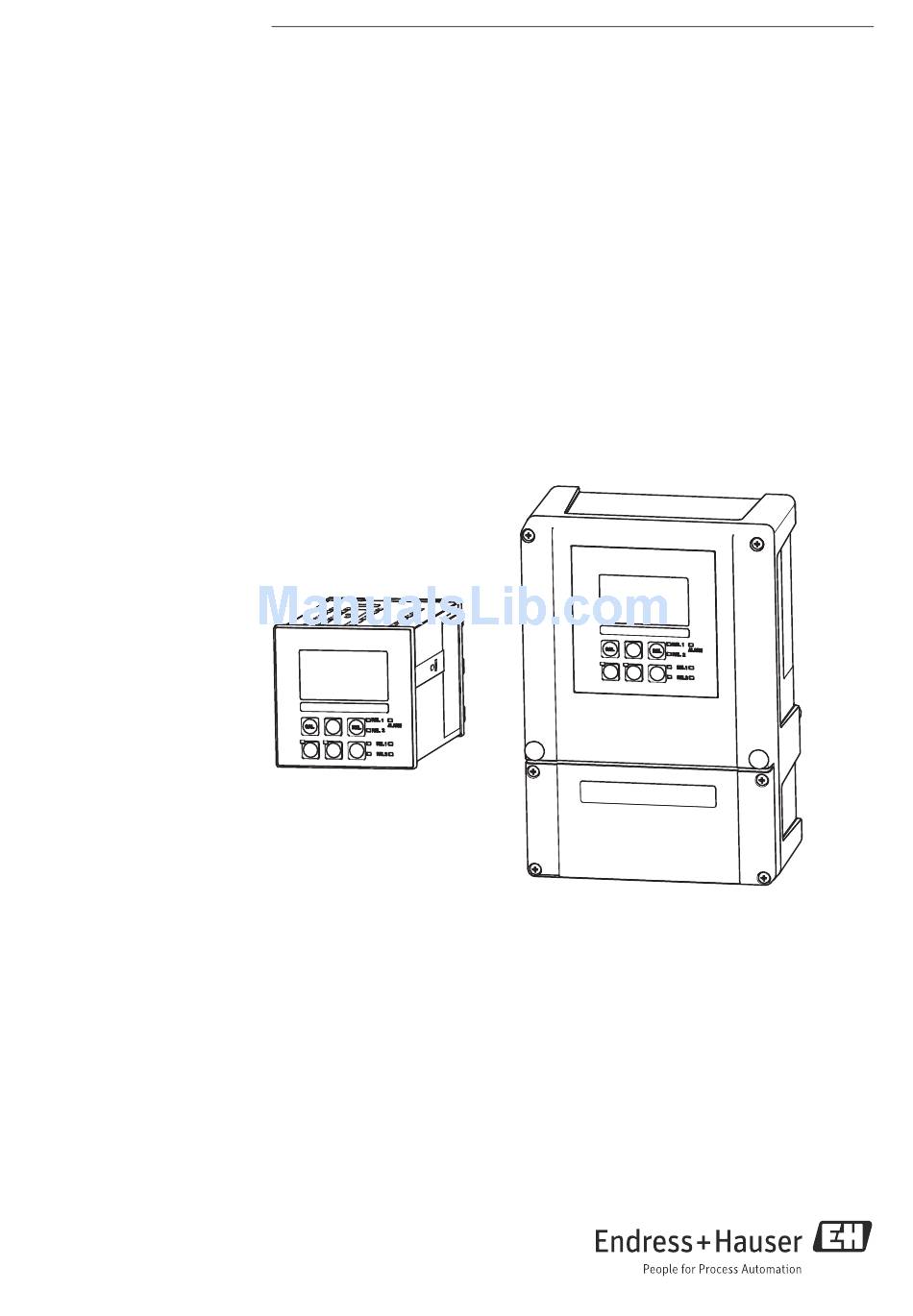

Operating Instructions

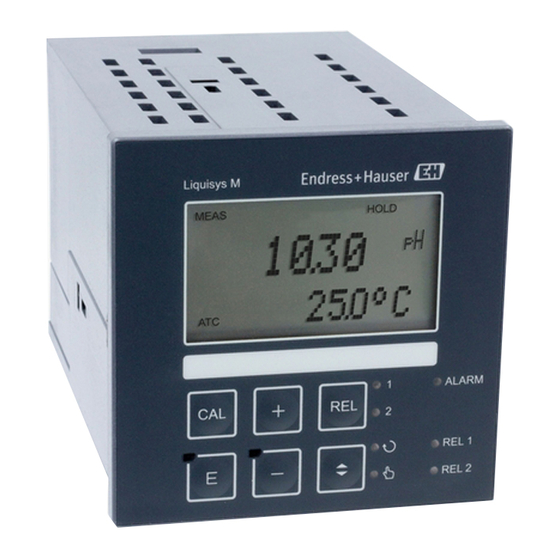

Liquisys M CPM223/253
Transmitter for pH and ORP
Solutions
Services
