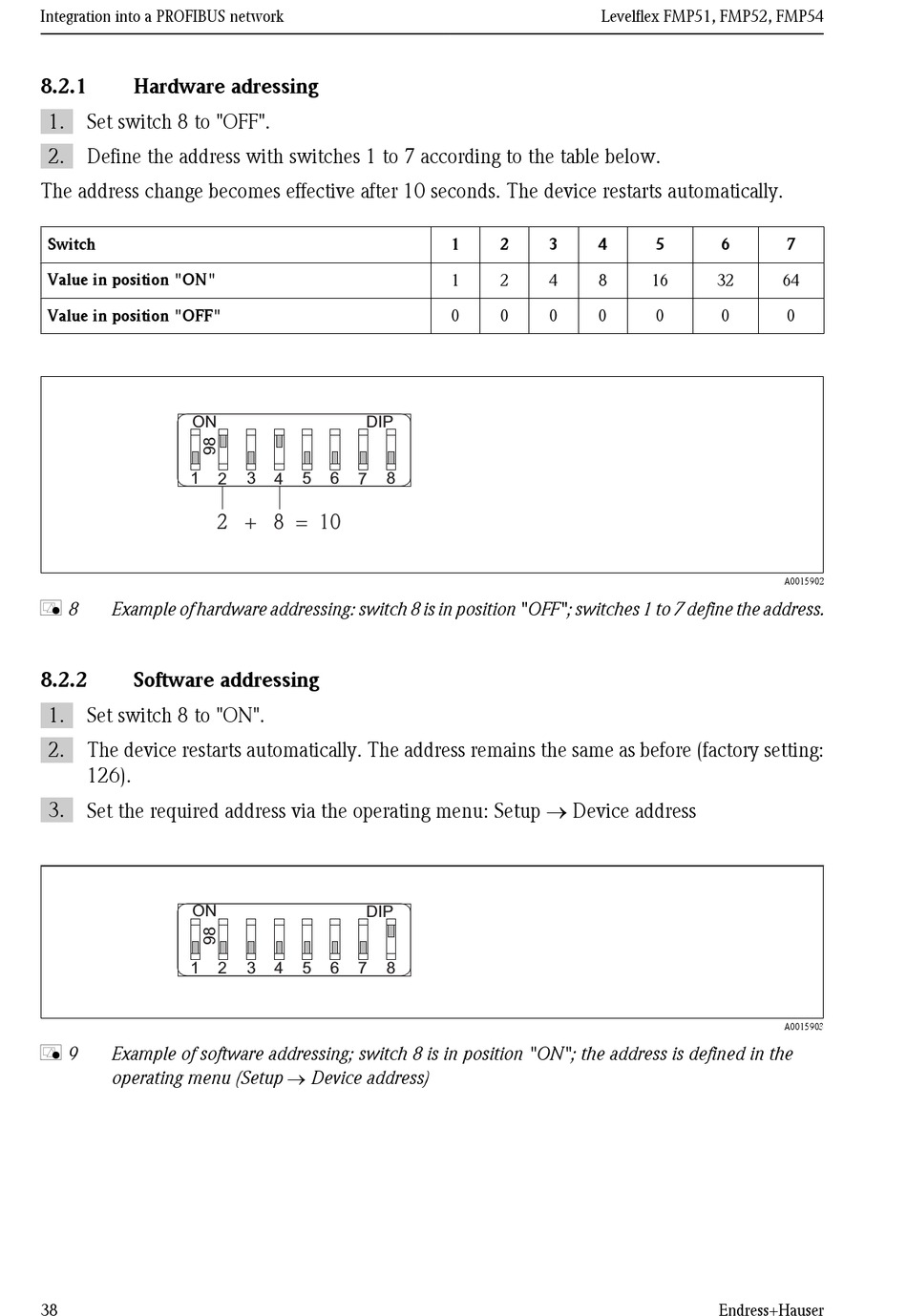

Endress+Hauser Levelflex FMP51 Operating Instructions Manual page 38

Integration into a PROFIBUS network
8.2.1 Hardware adressing
1. Set switch 8 to "OFF".
2. Define the address with switches 1 to 7 according to the table below.
The address change becomes effective after 10 seconds. The device restarts automatically.
Switch
Value in position "ON"
Value in position "OFF"
ON
1
å 8 Example of hardware addressing: switch 8 is in position "OFF"; switches 1 to 7 define the address.
8.2.2 Software addressing
1. Set switch 8 to "ON".
2. The device restarts automatically. The address remains the same as before (factory setting:
126).
3. Set the required address via the operating menu: Setup ® Device address
ON
1
å 9 Example of software addressing; switch 8 is in position "ON"; the address is defined in the
operating menu (Setup ® Device address)
38
DIP
2 3 4 5 6 7 8
2 + 8 = 10
DIP
2 3 4 5 6 7 8
Levelflex FMP51, FMP52, FMP54
1 2 3 4
1 2 4 8
0 0 0 0
5 6 7
16 32 64
0 0 0
A0015902
A0015903
