Levelflex FMP51, FMP52, FMP54
9.2
Operating concept
9.2.1
Structure
Language
Display/operation
Setup
Diagnostics
Expert

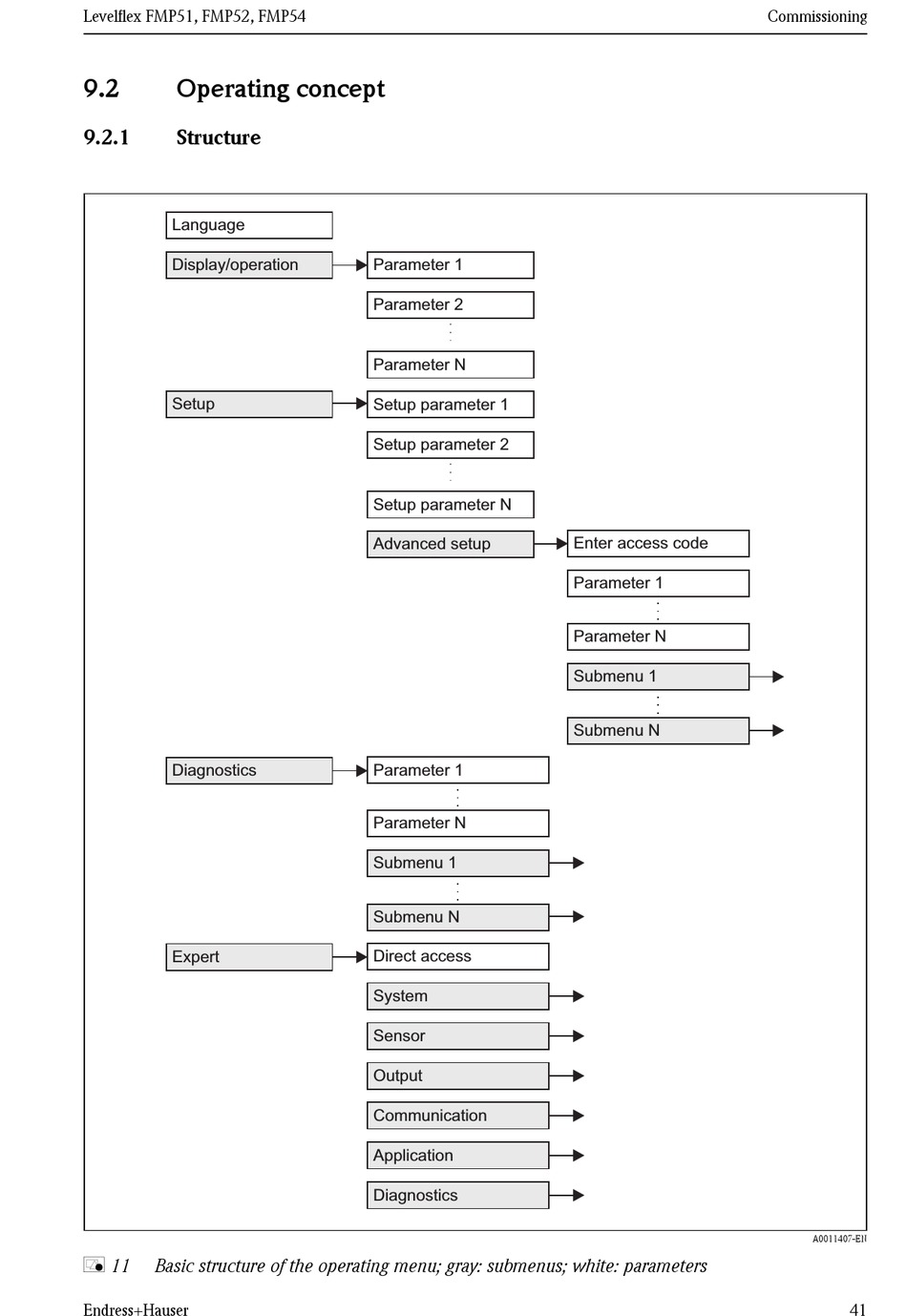

å 11
Basic structure of the operating menu; gray: submenus; white: parameters
Endress+Hauser
Parameter 1
Parameter 2
Parameter N
Setup parameter 1
Setup parameter 2
Setup parameter N
Advanced setup
Parameter 1
Parameter N
Submenu 1
Submenu N
Direct access
System
Sensor
Output
Communication
Application
Diagnostics
Enter access code
Parameter 1
Parameter N
Submenu 1
Submenu N
Commissioning
A0011407-EN
41
