Levelflex FMP51, FMP52, FMP54

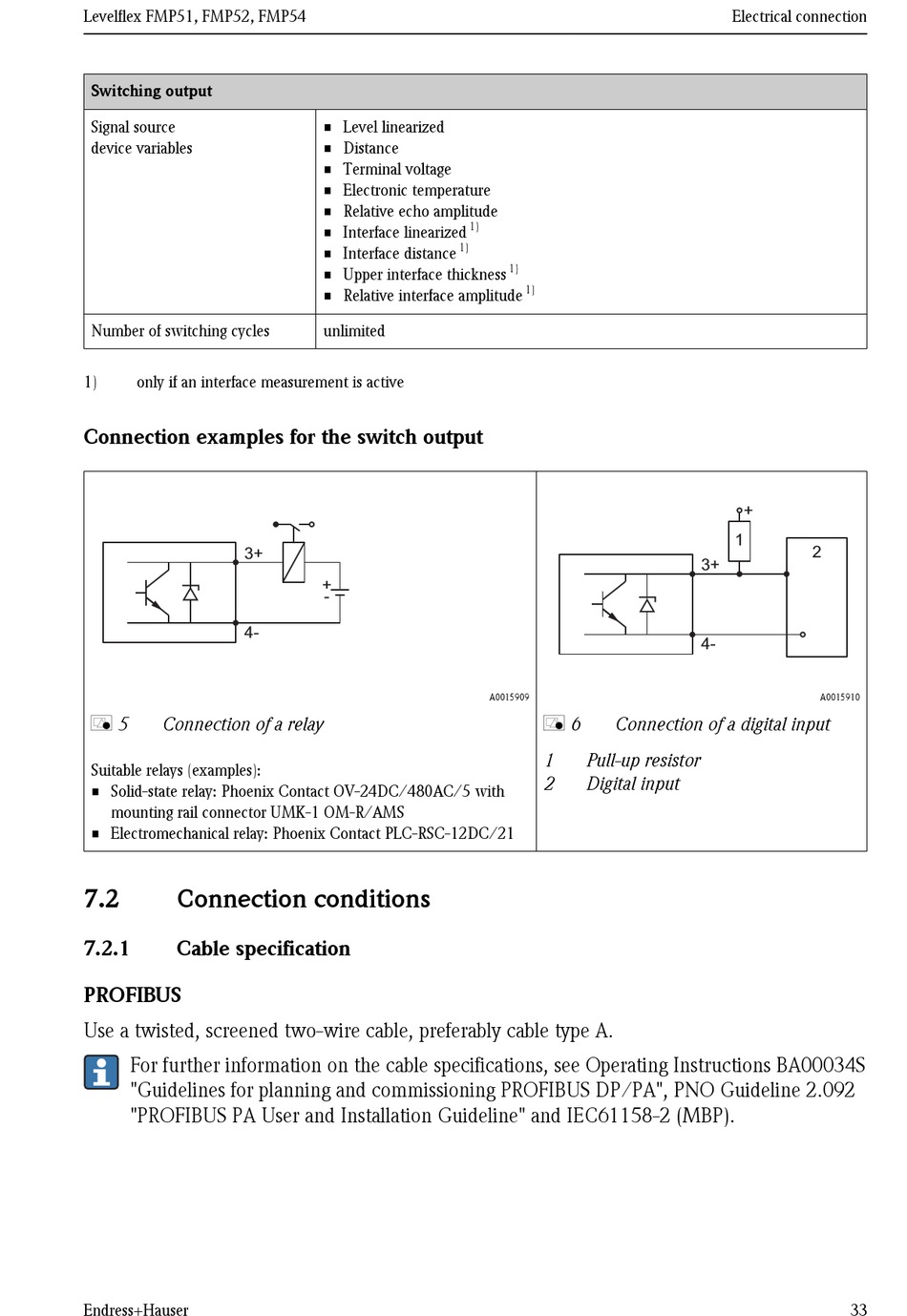

Switching output
Signal source
device variables
Number of switching cycles
1) only if an interface measurement is active
Connection examples for the switch output
3+
4-
å 5 Connection of a relay
Suitable relays (examples):
• Solid-state relay: Phoenix Contact OV-24DC/480AC/5 with
mounting rail connector UMK-1 OM-R/AMS
• Electromechanical relay: Phoenix Contact PLC-RSC-12DC/21
7.2

Connection conditions

7.2.1 Cable specification
PROFIBUS
Use a twisted, screened two-wire cable, preferably cable type A.
For further information on the cable specifications, see Operating Instructions BA00034S
"Guidelines for planning and commissioning PROFIBUS DP/PA", PNO Guideline 2.092
"PROFIBUS PA User and Installation Guideline" and IEC61158-2 (MBP).
Endress+Hauser
• Level linearized
• Distance
• Terminal voltage
• Electronic temperature
• Relative echo amplitude
1)
• Interface linearized
1)
• Interface distance
• Upper interface thickness
• Relative interface amplitude
unlimited
+
-
A0015909
1)
1)
å 6 Connection of a digital input
1 Pull-up resistor
2 Digital input
Electrical connection
+
1
2
3+
4-
A0015910
